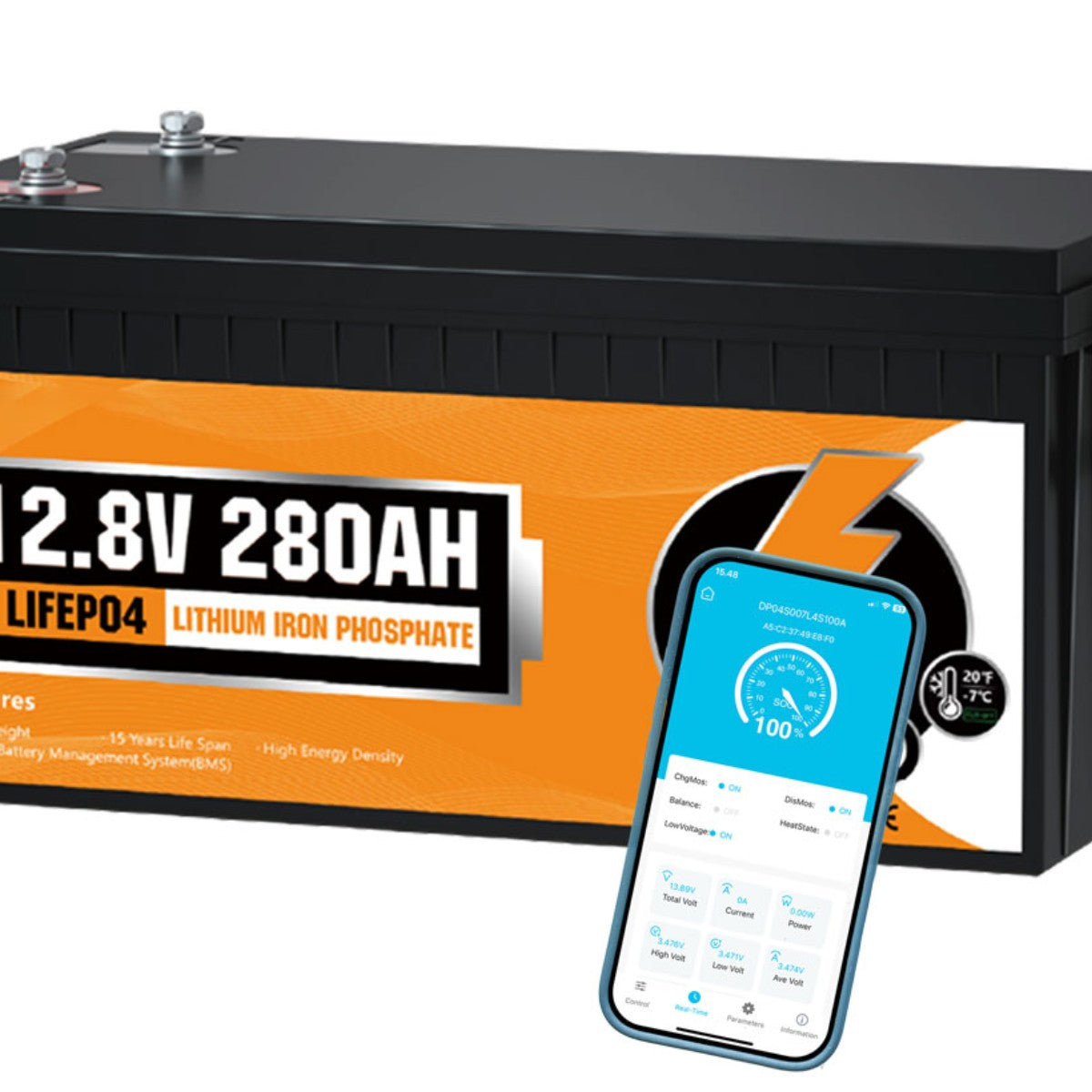

12V 280Ah LiFePO4 battery with 200A BMS and Bluetooth app
LiFePO4-forbrugsbatteri på 280 Ah med indbygget batteristyring og Bluetooth-overvågning. De fysiske mål, strømgrænser og ladeindstillinger nedenfor stammer fra batteriets eget datablad.
- Batteritype: LiFePO4-forbrugsbatteri med BMS
- Nominel spænding: 12,8 V
- Kapacitet: 280 Ah
Does this product suit your needs?
BMS afbryder opladning under 0 °C og afladning under −10 °C. Databladet angiver genstart ved +5 °C. Denne beskyttelse er ikke en indbygget varmefunktion. Appen kan blandt andet bruges til at følge spænding, strøm, ladetilstand og temperatur. Nominelt energiindhold er før tab og eventuel reserve.
What is included
- 1 LiFePO4-batteri med indbygget BMS og Bluetooth-overvågning.
Technical details
| Batteritype | LiFePO4-forbrugsbatteri med BMS |
|---|---|
| Nominel spænding | 12,8 V |
| Kapacitet | 280 Ah |
| Nominelt energiindhold | 3.584 Wh |
| Mål (L × B × H) | 453 × 238 × 211 mm; 225 mm inkl. poler |
| Vægt | 28,5 kg |
| Afladestrøm | 140 A anbefalet; maks. 200 A |
| Ladestrøm | Maks. 140 A |
| Polbolte | 8 mm |
| Kapslingsklasse | IP56 |
| Overvågning | Bluetooth-app til iOS/Android |
| Udvidelse | Højst 4 i parallel; seriekobling frarådes af leverandøren |
| Ladespænding | 14,0 V anbefalet; maks. 14,4 V |
| Eventuel vedligeholdelsesladning | 13,8 V; ikke nødvendig ifølge datablad |
| Oplyst cykluslevetid | Ca. 3.000 cyklusser ved 80 % afladning; afhænger af drift |
Installation and choosing accessories
Brug en egnet LiFePO4-lader eller laderegulator. Vælg kabler, sikring, hovedafbryder og eventuel inverter efter den tilladte kontinuerlige strøm. En kortvarig spidsstrøm er ikke en kontinuerlig belastning. Batterier, der sammenkobles, skal passe sammen og have samme ladetilstand som beskrevet i databladet.
Full product description
280 Ah LiFePO4 leisure battery with built-in battery management system (BMS) and Bluetooth monitoring. The physical dimensions, current limits, and charging settings below are derived from the battery's own datasheet.
Technical specifications and dimensions
| Battery type | LiFePO4 leisure battery with BMS |
|---|---|
| Nominal voltage | 12.8 V |
| Capacity | 280 Ah |
| Nominal energy content | 3,584 Wh |
| Dimensions (L × W × H) | 453 × 238 × 211 mm; 225 mm incl. terminals |
| Weight | 28.5 kg |
| Discharge current | 140 A recommended; max. 200 A |
| Charging current | Max. 140 A |
| Terminal bolts | 8 mm |
| Enclosure rating | IP56 |
| Monitoring | Bluetooth app for iOS/Android |
| Expansion | Max. 4 in parallel; series connection is not recommended by the supplier |
| Charging voltage | 14.0 V recommended; max. 14.4 V |
| Potential trickle charge | 13.8 V; not required according to datasheet |
| Stated cycle life | Approx. 3,000 cycles at 80% discharge; depends on operation |
What's included
- 1 LiFePO4 battery with built-in BMS and Bluetooth monitoring.
Compatibility and installation
Use a suitable LiFePO4 charger or charge controller. Select cables, fuses, master switches, and any inverter based on the permitted continuous current. A short-term peak current is not a continuous load. Batteries that are connected together must be compatible and have the same state of charge as described in the datasheet.
Good to know before buying
The BMS will disconnect charging below 0 °C and discharging below −10 °C. The datasheet specifies restart at +5 °C. This protection is not a built-in heating function. The app can be used, among other things, to monitor voltage, current, state of charge, and temperature. Nominal energy content is before losses and any reserve.
