← Back to products

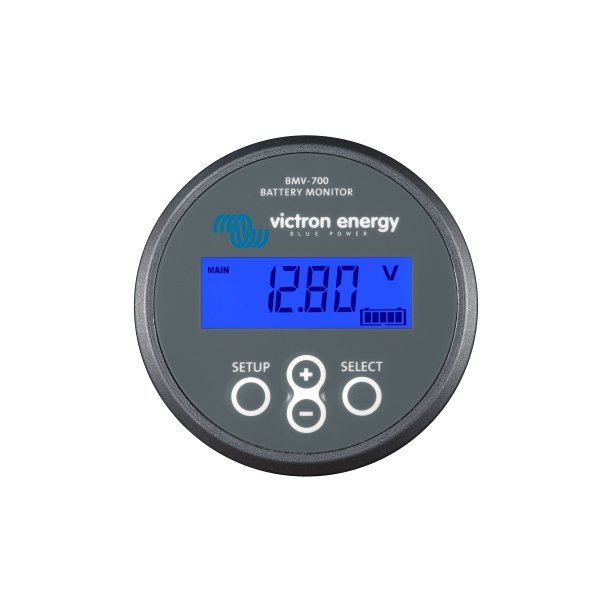

Victron Battery Monitor BMV-700

Item no. VIC-10135

Victron Battery Monitor BMV-700

Få et bedre grundlag for at følge strømforbruget om bord.

  • Indgår i måling eller visning af batteriets strømforbrug og tilstand.
  • Måling: Spænding, strøm, SOC
  • Hulmål: 52 mm
  • Vægt: ca. 0.3 kg
Price each
829,95 DKK

Includes VAT. Shipping calculated at checkout.

Delivery within 1–3 days
View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

Technical details
MålingSpænding, strøm, SOC
Hulmål52 mm
Vægtca. 0.3 kg
Spændingsområde6.5 – 95 V DC
SpecifikationData
ProduktBMV-700
Shunt500A / 50mV
KommunikationVE.Direct
Ekstra inputNej
DisplayLCD
MonteringIndbygning (flush)
Dimensionerca. 69 × 69 × 31 mm
IP klasseIP55
AnvendelseBatteriovervågning
ModelserieBMV-700
MærkeVictron
KapslingsklasseIP55
Installation and choosing accessories

Match shunt, instrument, strømniveau og ledningsføring. Visning af ladetilstand kræver korrekt opsætning og kalibrering.

Full product description

Precise battery monitoring – the essential tool for your energy system.

The Victron BMV-700 is a reliable and accurate battery monitor that gives you a full overview of your battery's condition. It measures voltage, current, and consumption and calculates the battery's state of charge (SOC), so you always know how much power you have left.

The BMV-700 is the base model in the series and is ideal for simple installations where you only need to monitor one battery bank.

⚡ Benefits

  • Precise measurement of voltage, current, and capacity

  • Calculates battery state of charge (SOC)

  • Displays “time remaining” and consumption

  • History and data analysis

  • Programmable alarm relay

  • VE.Direct for GX integration

  • Reliable and field-tested solution

The BMV series is known for its high precision and stable operation.

⛵ Suitable for

  • Boats and marine installations

  • Motorhomes and vans

  • Solar systems and off-grid setups

  • AGM, GEL, and lithium batteries

📊 Specifications

Specification Data
Product BMV-700
Measurement Voltage, current, SOC
Shunt 500A / 50mV
Voltage range 6.5 – 95 V DC
Communication VE.Direct
Additional input No
Display LCD
Mounting Flush mount
Dimensions approx. 69 × 69 × 31 mm
Hole size 52 mm
Weight approx. 0.3 kg
IP rating IP55
Application Battery monitoring

🔧 Installation

The unit is typically installed by:

  • Mounting the shunt on the battery negative

  • Mounting the display in a panel

  • Connecting via included cables

  • Optionally connected to GX system

📦 Package contents

  • 1 × Victron BMV-700 display

  • 1 × 500A shunt

  • 10 m cable + fuse cable

  • Mounting parts

💡 Tip from SejlStrøm:
The BMV-700 is perfect if you just want control over one battery without extra features. If you need to measure more things or want an app, look at the BMV-702 or 712 👍
