Victron Battery Monitor BMV-710H Smart
5.343,75 DKK
Taxes included.
Shipping calculated at checkout.
🇩🇰 Danish support before and after purchase
🚚 Fast delivery within Denmark
🔄 30-day return policy
Description
Advanced battery monitor for high-voltage systems – with Bluetooth and full overview.
The Victron BMV-710H Smart is a special edition of the BMV series designed for high-voltage battery systems (60–385V DC). It precisely measures voltage, current, power consumption, and battery state of charge (SOC), giving you full control – both via the display and Bluetooth in the VictronConnect app.
It is ideal for larger energy systems where standard battery monitors are insufficient.
⚡ Advantages
-
Designed for high-voltage systems (60–385V DC)
-
Built-in Bluetooth (VictronConnect)
-
Precise measurement of SOC, voltage, and current
-
Shows “time remaining” and history
-
VE.Direct for GX integration
-
Additional input for battery / temperature / midpoint
-
Reliable Victron quality
The BMV-710H Smart is the solution when you work with large or professional systems.
⛵ Suitable for
-
High-voltage battery banks
-
Large off-grid installations
-
Industrial energy systems
-
Advanced marine installations
📊 Specifications
| Specification | Data |
|---|---|
| Product | BMV-710H Smart |
| Measurement | Voltage, current, SOC |
| Shunt | 500A / 50mV |
| Voltage range | 60 – 385 V DC |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Additional input | Yes (battery/temp/midpoint) |
| Display | LCD |
| Mounting | Flush mount |
| Front diameter | 63 mm |
| Front bezel | 69 × 69 mm |
| Cut-out diameter | 52 mm |
| Depth | 31 mm |
| Dimensions | approx. 68.7 × 68.7 × 30.6 mm |
| Weight | approx. 0.8 – 1.1 kg |
| IP rating | IP55 |
| Application | Battery monitoring (high voltage) |
🔧 Installation
The unit is typically installed as follows:
-
Shunt mounted on the battery's negative terminal
-
Display mounted in panel
-
Connected via included cables
-
Set up via VictronConnect app
-
Optionally connected to a GX system
📦 Package contents
-
1 × Victron BMV-710H Smart display
-

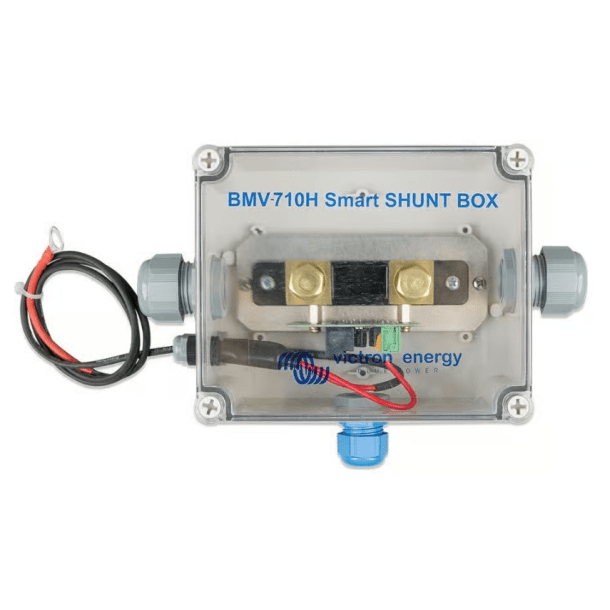

1 × 500A shunt (in protective enclosure)
-
10 m cable + fuse cable
-
Mounting hardware
💡 SejlStrøm Tip:
This model is only for high-voltage setups. For standard 12V/24V systems, you should choose the BMV-712 or SmartShunt – but this one has you covered for the really large systems 👍
