Victron Battery Monitor BMV-712 Black Smart
Få et bedre grundlag for at følge strømforbruget om bord.
- Indgår i måling eller visning af batteriets strømforbrug og tilstand.
- Måling: Spænding, strøm, SOC
- Hulmål: 52 mm
- Samlede mål: ca. 68.7 × 68.7 × 30.6 mm
Technical details
| Måling | Spænding, strøm, SOC |
|---|---|
| Front diameter | 63 mm |
| Hulmål | 52 mm |
| Dybde | 31 mm |
| Samlede mål | ca. 68.7 × 68.7 × 30.6 mm |
| Vægt | ca. 0.8 – 1.0 kg |
| Spændingsområde | 6.5 – 70 V DC |
| Specifikation | Data |
| Produkt | BMV-712 Black Smart |
| Shunt | 500A / 50mV |
| Bluetooth | Ja |
| Kommunikation | VE.Direct |
| Ekstra input | Ja (batteri/temp/midpoint) |
| Display | LCD |
| Montering | Indbygning (flush) |
| Front bezel | 69 × 69 mm |
| IP klasse | IP55 |
| Anvendelse | Batteriovervågning |
| Modelserie | BMV-712 |
| Mærke | Victron |
| Kapslingsklasse | IP55 |
| Farve | Sort |
Installation and choosing accessories
Match shunt, instrument, strømniveau og ledningsføring. Visning af ladetilstand kræver korrekt opsætning og kalibrering.
Full product description
Advanced battery monitor with display and Bluetooth – full oversight of your battery.
The Victron BMV-712 Black Smart is one of the most popular battery monitors on the market. It measures voltage, current, power consumption, and the battery's state of charge (SOC) with high precision – both via the built-in display and directly on your mobile phone via Bluetooth.
It combines a physical display and app, making it a flexible solution for both simple and advanced energy systems.
⚡ Benefits
-
Precise measurement of voltage, current, and capacity
-
Built-in Bluetooth (VictronConnect)
-
Displays SOC and “time remaining”
-
Additional input for battery / temperature / midpoint
-
Programmable alarm relay
-
VE.Direct for GX integration
-
Black design – matches modern installations
The BMV-712 is one of the most accurate battery monitors on the market.
⛵ Suitable for
-
Boats and marine installations
-
Motorhomes and vans
-
Solar power systems and off-grid systems
-
AGM, GEL, and lithium batteries
📊 Specifications
| Specification | Data |
|---|---|
| Product | BMV-712 Black Smart |
| Measurement | Voltage, current, SOC |
| Shunt | 500A / 50mV |
| Voltage range | 6.5 – 70 V DC |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Additional input | Yes (battery/temp/midpoint) |
| Display | LCD |
| Mounting | Flush mount |
| Front diameter | 63 mm |
| Front bezel | 69 × 69 mm |
| Hole size | 52 mm |
| Depth | 31 mm |
| Overall dimensions | approx. 68.7 × 68.7 × 30.6 mm |
| IP rating | IP55 |
| Weight | approx. 0.8 – 1.0 kg |
| Application | Battery monitoring |
🔧 Installation
The unit is typically installed:
-
Shunt mounted to the battery's negative terminal
-
Display mounted in a panel
-
Connected via included cables
-
Set up via the VictronConnect app
-
Optionally connected to a GX system

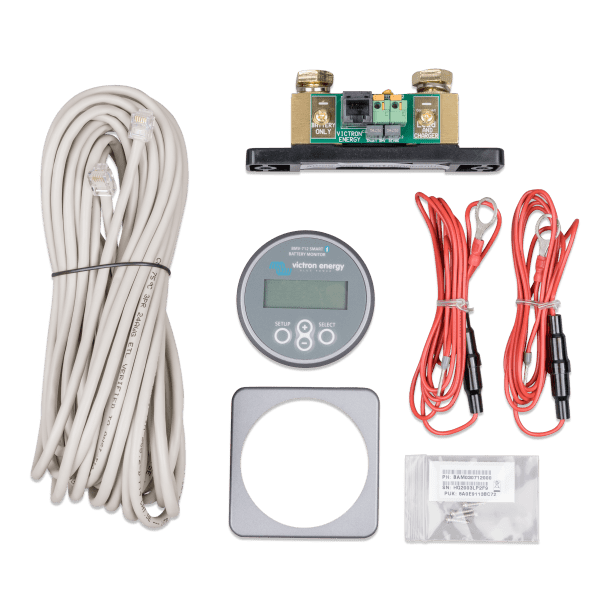

📦 Package contents
-
1 × Victron BMV-712 Black Smart display
-
1 × 500A shunt
-
10 m cable + fuse cable
-
Mounting parts
💡 Tip from SejlStrøm:
The BMV-712 is the “best of both worlds.” If you want both a display and an app, this is the right one. If you want to save space, take a look at the SmartShunt instead 👍
