Victron Battery Monitor BMV-712 Smart Retail
Item no. VIC-10138
Få et bedre grundlag for at følge strømforbruget om bord.
- Indgår i måling eller visning af batteriets strømforbrug og tilstand.
- Måling: Spænding, strøm, SOC
- Hulmål: 52 mm
- Vægt: ca. 0.3 kg
Technical details
| Måling | Spænding, strøm, SOC |
|---|---|
| Front diameter | 63 mm |
| Hulmål | 52 mm |
| Dybde | 31 mm |
| Vægt | ca. 0.3 kg |
| Spændingsområde | 6.5 – 70 V DC |
| Specifikation | Data |
| Produkt | BMV-712 Smart |
| Shunt | 500A / 50mV |
| Bluetooth | Ja |
| Kommunikation | VE.Direct |
| Ekstra input | Ja (batteri/temp/midpoint) |
| Display | LCD |
| Montering | Indbygning (flush) |
| Shunt dimensioner | 120 × 46 × 54 mm |
| Anvendelse | Batteriovervågning |
| Modelserie | BMV-712 |
| Mærke | Victron |
Installation and choosing accessories
Match shunt, instrument, strømniveau og ledningsføring. Visning af ladetilstand kræver korrekt opsætning og kalibrering.
Full product description
Advanced battery monitor with display and Bluetooth – full overview of your battery.
The Victron BMV-712 Smart is one of the most popular battery monitors on the market. It provides accurate measurement of voltage, current, consumption, and the battery's state of charge (SOC) – both via the built-in display and directly on your mobile device via Bluetooth.
It combines the best of two worlds: a physical display + app monitoring, making it extremely flexible in use.
⚡ Benefits
-
Precise measurement of voltage, current, and capacity
-
Built-in Bluetooth (VictronConnect)
-
Shows SOC (State of Charge) and “time remaining”
-
Extra input for battery, temperature, or midpoint
-
Programmable alarm relay
-
VE.Direct for GX integration
-
Both display and app – maximum flexibility
The BMV-712 is known for extreme precision and reliability.
⛵ Suitable for
-
Boats and marine installations
-
Motorhomes and vans
-
Solar power systems and off-grid systems
-
AGM, GEL, and lithium batteries
📊 Specifications
| Specification | Data |
|---|---|
| Product | BMV-712 Smart |
| Measurement | Voltage, current, SOC |
| Shunt | 500A / 50mV |
| Voltage range | 6.5 – 70 V DC |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Extra input | Yes (battery/temp/midpoint) |
| Display | LCD |
| Mounting | Flush mount |
| Front diameter | 63 mm |
| Hole diameter | 52 mm |
| Depth | 31 mm |
| Shunt dimensions | 120 × 46 × 54 mm |
| Weight | approx. 0.3 kg |
| Application | Battery monitoring |
🔧 Installation
The unit is typically installed by:
-
Mounting the shunt on the battery's negative terminal
-
Mounting the display in a panel
-
Connecting via the included cables
-
Setting up via the VictronConnect app

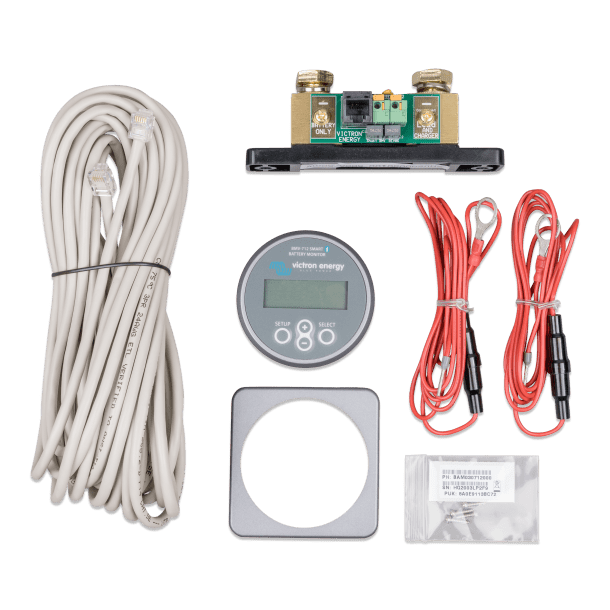

📦 In the box
-
1 × Victron BMV-712 Smart display
-
1 × 500A shunt
-
10 m cable + fused cable
-
Mounting parts
💡 Tip from SejlStrøm:
If you want the best of both worlds (display + app), then the BMV-712 is the obvious choice. The alternative is the SmartShunt – but you lose the display with that one 👍
