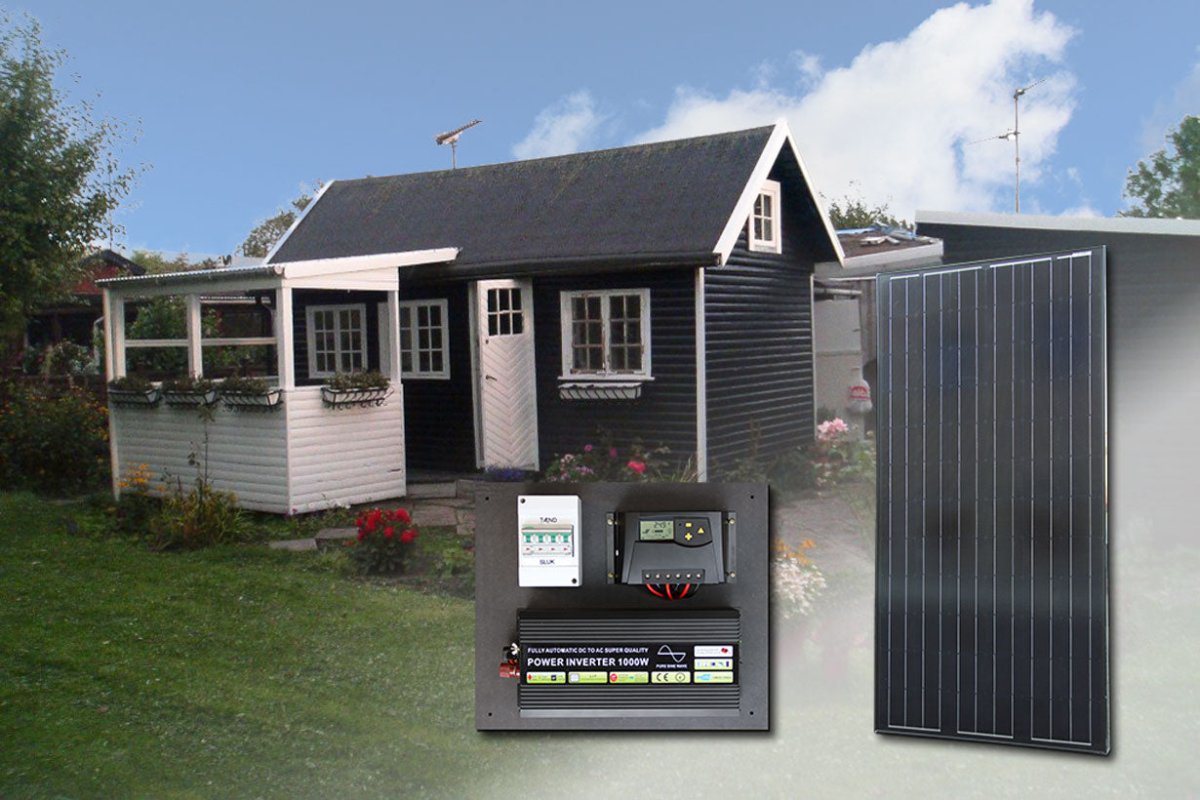

Affordable solar power system for holiday home – allotment garden house – 500–650 Wh daily production (off-grid)
Item no. SS-10058
Solcellepakke med batterilager og 230 V ren sinus til fritidshuset. Se særskilt, hvor meget energi panelerne kan producere, og hvor stor belastning inverteren kan drive.
- Anvendelse: Fritidshus/kolonihave uden fast elnet
- Paneler ifølge aktuel leverandørside: 1 × 200 Wp
- Samlet panelmærkeeffekt: 200 Wp
Does this product suit your needs?
Til lys og små apparater: Pakken er ikke egnet til et almindeligt kompressorkøleskab, elkedel eller kaffemaskine. Inverterens grænse er 300 W samlet.
Wp er panelernes mærkeeffekt under standardiserede testforhold. Wh pr. døgn er energi over en dag og afhænger af årstid, skygger, panelretning og forbrug. Et oplyst sommerudbytte er derfor ikke en garanti for daglig produktion eller drift af alle apparater samtidig.
Sommerproduktion er ikke en angivelse af vinterdrift. Batteriets nominelle kWh er heller ikke det samme som brugbar energi ved 230 V; tab og tilladt afladning reducerer den tilgængelige energi.
What is included
- 1 solpanel(er), 200 Wp pr. panel.
- 12 V / 100 Ah PureGEL, nominelt 1,2 kWh.
- 30 A med display.
- 230 V ren sinus-inverter.
- Kontrolplade med hovedafbryder.
- 2 × 10 m PV-kabel med MC4-stik samt kabler og sikringer til batterilageret.
- Måleinstrument samt vejledning/tegninger.
Technical details
| Anvendelse | Fritidshus/kolonihave uden fast elnet |
|---|---|
| Paneler ifølge aktuel leverandørside | 1 × 200 Wp |
| Samlet panelmærkeeffekt | 200 Wp |
| Batterilager | 12 V / 100 Ah PureGEL, nominelt 1,2 kWh |
| Laderegulator | 30 A med display |
| 230 V-udgang | 300 W ren sinus |
| Vejledende dagsproduktion | Ca. 500–650 Wh/døgn om sommeren |
| PV-kabel | 2 × 10 m, 4 mm², med MC4 |
| Monteringsbeslag | Købes separat |
Installation and choosing accessories
Beslag og selve monteringsarbejdet medfølger ikke. Montagesæt vælges efter tagtype og antal paneler. Beregn både døgnforbrug og største samtidige belastning, og tag højde for startstrøm fra kompressorer og motorer. Følg de medfølgende vejledninger for kabling og sikringer.
Full product description
Solar panel package with battery storage and 230 V pure sine wave for the holiday home. See separately how much energy the panels can produce and what load the inverter can power.
Technical specifications and dimensions
| Application | Holiday home/allotment garden without mains electricity |
|---|---|
| Panels per current supplier page | 1 × 200 Wp |
| Total panel rated power | 200 Wp |
| Battery storage | 12 V / 100 Ah PureGEL, nominal 1.2 kWh |
| Charge controller | 30 A with display |
| 230 V output | 300 W pure sine wave |
| Indicative daily production | Approx. 500–650 Wh/day in summer |
| PV cable | 2 × 10 m, 4 mm², with MC4 |
| Mounting brackets | Purchased separately |
What you get
- 1 solar panel(s), 200 Wp per panel.
- 12 V / 100 Ah PureGEL, nominal 1.2 kWh.
- 30 A with display.
- 230 V pure sine wave inverter.
- Control panel with main switch.
- 2 × 10 m PV cable with MC4 connectors as well as cables and fuses for battery storage.
- Measuring instrument and instructions/drawings.
Compatibility and installation
Brackets and the actual installation work are not included. Mounting kits are selected according to roof type and number of panels. Calculate both daily consumption and maximum simultaneous load, and take into account start-up current from compressors and motors. Follow the supplied instructions for cabling and fuses.
Good to know before buying
For lights and small appliances: The package is not suitable for a standard compressor refrigerator, electric kettle, or coffee maker. The inverter limit is 300 W total.
Wp is the rated power of the panels under standardized test conditions. Wh per day is energy over one day and depends on the season, shadows, panel orientation, and consumption. A stated summer yield is therefore not a guarantee of daily production or operation of all appliances simultaneously.
Summer production is not an indication of winter operation. The battery's nominal kWh is also not the same as usable energy at 230 V; losses and permitted discharge reduce the available energy.
