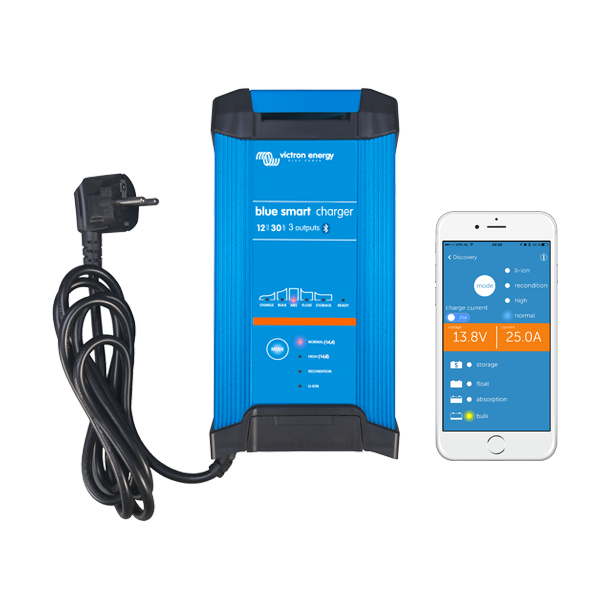

Blue Smart IP22 Charger 12/30 (3), 12VDC/30A, 3 outputs
Item no. SS-10856
Victron Blue Smart IP22 12/30 oplader et 12 V-batteri fra landstrøm eller en anden egnet 230 V-forsyning. Den samlede ladestrøm er op til 30 A og kan reduceres til mindre batterier.
- Model: Blue Smart IP22 12/30
- Batterispænding: 12 V
- Maks. samlet ladestrøm: 30 A
Does this product suit your needs?
3 ladeudgange. De tre udgange deler laderens samlede kapacitet på 30 A. Batterierne skal kunne bruge samme ladeprofil; udgangene er ikke tre uafhængigt programmerbare ladere.
IP22-modellen skal sidde tørt og ventileret.
What is included
- Blue Smart-lader med netkabel.
- Batterikabler og installationssikringer vælges separat.
Technical details
| Model | Blue Smart IP22 12/30 |
|---|---|
| Batterispænding | 12 V |
| Maks. samlet ladestrøm | 30 A |
| Antal ladeudgange | 3 |
| Netforsyning | 220–240 V AC; tilladt område 180–265 V |
| Netfrekvens | 50–60 Hz |
| Betjening | Bluetooth med VictronConnect og MODE-knap |
| Batterityper | Blysyre/AGM/GEL og lithium med passende ladeprofil |
| Standbyforbrug | 0,5 W |
| Kapslingsklasse | IP22 |
| Reduceret ladestrøm | 15 A i Low; 7.5 A i Min |
| Mål (H × B × D) | 235 × 108 × 65 mm |
| Vægt | 1,3 kg |
| Batteritilslutning | Skrueklemmer, op til 16 mm² |
| Netkabel | 1,5 m |
| Køling | Blæserassisteret |
| Driftstemperatur | −20 til +50 °C; fuld mærkeeffekt til +40 °C |
Installation and choosing accessories
Vælg ladeprofil efter batteriproducentens spændings- og temperaturgrænser. Lithiumopladning kræver et batteri med passende BMS. Vælg ladestrøm efter batteriets tilladte strøm; en højere ampereværdi er ikke altid det rigtige valg.
Full product description
The Victron Blue Smart IP22 12/30 charges a 12 V battery from shore power or another suitable 230 V supply. The total charging current is up to 30 A and can be reduced for smaller batteries.
Technical specifications
| Model | Blue Smart IP22 12/30 |
|---|---|
| Battery voltage | 12 V |
| Max. total charge current | 30 A |
| Number of charge outputs | 3 |
| Mains supply | 220–240 V AC; allowed range 180–265 V |
| Mains frequency | 50–60 Hz |
| Operation | Bluetooth with VictronConnect and MODE button |
| Battery types | Lead-acid/AGM/GEL and lithium with appropriate charge profile |
| Standby consumption | 0.5 W |
| Protection class | IP22 |
| Reduced charge current | 15 A in Low; 7.5 A in Min |
| Dimensions (H × W × D) | 235 × 108 × 65 mm |
| Weight | 1.3 kg |
| Battery connection | Screw terminals, up to 16 mm² |
| Mains cable | 1.5 m |
| Cooling | Fan-assisted |
| Operating temperature | −20 to +50 °C; full rated output up to +40 °C |
Included in the box
- Blue Smart charger with mains cable.
- Battery cables and installation fuses are selected separately.
Compatibility and installation
Select the charge profile according to the battery manufacturer's voltage and temperature limits. Lithium charging requires a battery with a suitable BMS. Choose the charge current according to the battery's permitted current; a higher ampere rating is not always the right choice.
Good to know
3 charge outputs. The three outputs share the charger's total capacity of 30 A. The batteries must be able to use the same charge profile; the outputs are not three independently programmable chargers.
The IP22 model must be installed in a dry and ventilated area.
