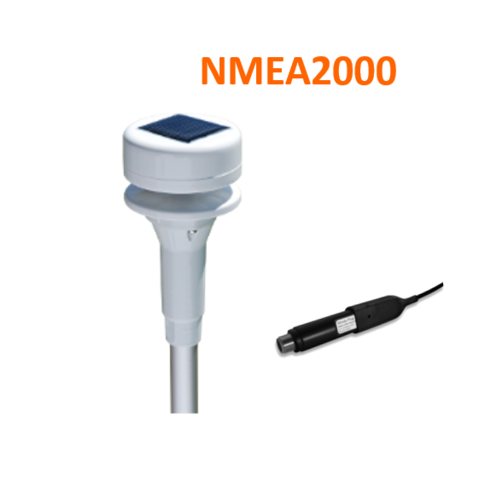

CV7SF2 with WindyPlug interface (NMEA 2000)
Wireless ultrasonic wind sensor powered by solar cell and LiFePO4 3V battery,data update once per second day and night, receiver box (5-15V power supply),vertical mounting, junction interface for NMEA2000® compatibility,integrated barometer. CV7SF2-WindyPlug is the wireless ultrasonic wind vane anemometer that operates at all times of the day and night, supplied with WindyPlug.It operates in daylight and at night (in total darkness for 30 days). The...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Wireless ultrasonic wind sensor powered by solar cell and LiFePO4 3V battery,
data update once per second day and night, receiver box (5-15V power supply),
vertical mounting, junction interface for NMEA2000® compatibility,
integrated barometer.
CV7SF2-WindyPlug is the wireless ultrasonic wind vane anemometer that operates at all times of the day and night, supplied with WindyPlug.
It operates in daylight and at night (in total darkness for 30 days). The wind measurement frequency is 16 Hz with a data update of 1 Hz. A barometer is built-in.
The product is supplied with a LiFePo4 battery. This battery can be charged or discharged and is replaceable.
FEATURESWiring:
– No cable. Radio signal 433 MHz AM at 10dBm, message length: 25ms.
– Data update: 1 per sec. in daylight and at night
– Powered by solar cell
– Battery LiFePo4
Receiver box:
– Super heterodyne receiver ASK 433 Mhz, sensitivity: 110 dbm
– Connections on screw terminals +12 V DC (6 to 14 V DC, 6mA) and 0 V
– Yellow: output NMEA0183 +
– Green: output NMEA0183 –
Measuring range:
Wind speed: 0.40 to 80 knots
Wind angle: 0 to 359°
Temperature: -15°C (without icing) to +55°C
Atmospheric pressure: 750 to 1100 mB
Measurement sensitivity:
Wind speed: 0.40 knots
Wind angle: +/-2°
Temperature: +/- 2°C
Resolution:
Wind speed: 00.0
Wind angle: 000.0
Temperature: +/-00.0
Atmospheric pressure: 0000.00
NMEA0183® sentences:
IIMWV: angle, wind speed and checksum
WIXDR: wind temperature
WIMDA: atmospheric pressure, wind temperature
PLCJ: manufacturer data
Data transfer: 4800 baud
Complies with European regulations
COMPATIBILITY
NMEA0183® – 4800 baud
– FURUNO©, RD30, RD33, echo sounders, radars, NavNet, NavNet2, NavNet3 etc…
– GARMIN, GMI10, GMI20, all NMEA0183 equipment
– NASA, METEOMAN, ADVANSEA etc…
Navigation software: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Sodena, StatMETEO, Euronav Seapro
CV7SF2 is suitable with:
NMEA0183 standard
NMEA2000 standard*
Bluetooth *
wifi*
* with option
The CV7SF2-WindyPlug package includes:
CV7SF2 sensor and its receiver
WindyPlug NMEA2000 interface
Mounting bracket
Installation and operating manual
2-year warranty, parts and labor in our premises
