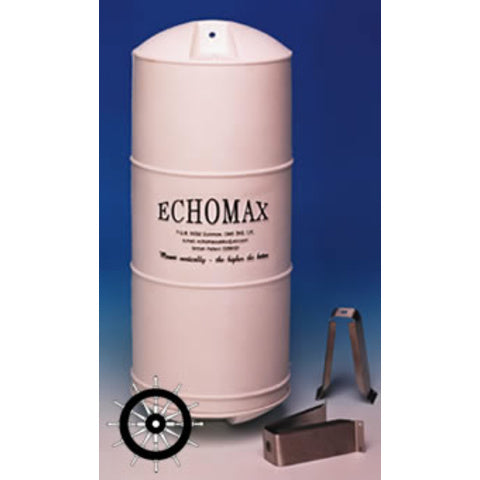

Echomax 230 SOLAS Radar Reflector
Item no. OLA-10008
The Echomax EM230 is SOLAS approved and suitable for medium to large vessels. Robust polyethylene container available in white, orange, yellow, red, green, or black.The EM230 model has been successfully tested by QinetiQ to ISO8729-1999 and meets RORC, ORC, ISAF2012/13, and WCC requirements of a minimum of 10m². The Echomax EM230 has been assigned a NATO Stock No. 5840-99-742-6193 following the adoption and use of...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Echomax EM230 is SOLAS approved and suitable for medium to large vessels. Robust polyethylene container available in white, orange, yellow, red, green, or black.
The EM230 model has been successfully tested by QinetiQ to ISO8729-1999 and meets RORC, ORC, ISAF2012/13, and WCC requirements of a minimum of 10m².
The Echomax EM230 has been assigned a NATO Stock No. 5840-99-742-6193 following the adoption and use of the Echomax EM230 by the British Armed Forces and other units worldwide. Used by the US Navy as a target, etc.
The EM230 has MED "Ships-Wheel-Mark" / SOLAS certification for lifeboats and rescue boats, which became mandatory in December 2012, and copies of the BABT-TUV module B certificate can be obtained if desired.
Suitable for mast, deck, and halyard mounting. (Brackets must be purchased separately)
Available in @+/-3°-24m² maximum-Stated Performance Level (SPL) +/-3° 4.7m²
Dimensions:
Height: 610 mm
Width: 245 mm
Reflective surface: 24m²
Mounting holes: 8mm
Weight: 2.3 kg
Mounting distance C-C: 569mm
