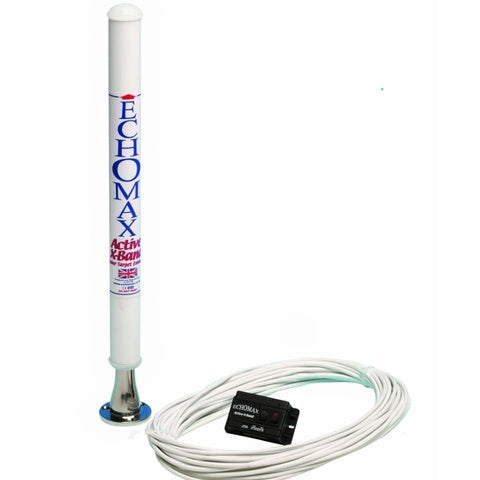

Echomax Active-X-Band active radar reflector
Item no. SS-12451
The Echomax Active-X-Band radar target enhancer receives the signal from radars, amplifies it, and returns a stronger signal. This increases visibility and reduces the risk of collision, while also alerting nearby vessels. Active X is FCC Approved ID: XZMACTIVE-X - NATO Stock Number 5840 99 904 3941 Specifications: Reception frequency: X-band 9.32-9.5 GHz Operating temperature: -20 to +60 degrees C Voltage: 12V DC - +30%...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Echomax Active-X-Band radar target enhancer receives the signal from radars, amplifies it, and returns a stronger signal. This increases visibility and reduces the risk of collision, while also alerting nearby vessels.
Active X is FCC Approved ID: XZMACTIVE-X - NATO Stock Number 5840 99 904 3941
Specifications:
Reception frequency: X-band 9.32-9.5 GHz
Operating temperature: -20 to +60 degrees C
Voltage: 12V DC - +30% -10% (voltage and polarity protected)
Standby power consumption: 15mA
Position accuracy: Within 1 meter
5 interrogating radars: 23mA
10: 32 mA
EIRP: 1W
Dimensions:
Antenna length: 478 mm
Antenna width: 40.5 mm
Antenna weight: 327 g excl. cable
Cable length: 24M 2-core 0.5mm2
Cable weight: 969 g
Performance Response
Zero degrees: 111.36M2
+/- 10 degrees of heel: 78.96M2
+/- 20 degrees of heel: 20.80M2
NB: Mounting brackets must be purchased separately.
