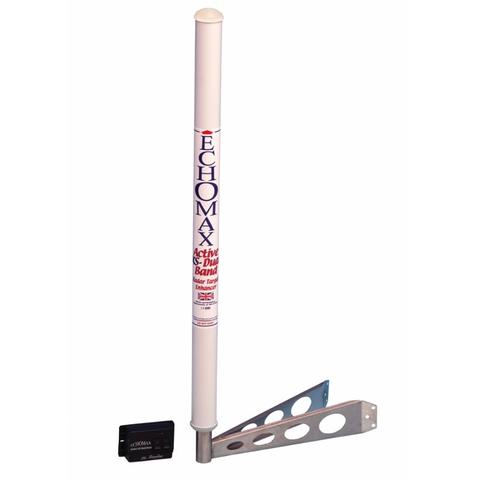

Echomax Active-XS-Dual Band Radar Reflector

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

Echomax Active-XS-Dual Band Radar Target Enhancer with a minimal power consumption of only 23mA on standby and very high X and S-band reflection, many times higher than the new ISO 8729-2 standard. Unique visual indication of S or X Band Radar. Quadruple alarm as standard.

Active-XS amplifies and returns radar signals, and these powerful responses on both X or S Band Radar significantly increase visibility and improve your vessel's radar cross-section, thereby helping to alert other vessels to your position in poor visibility, thus reducing the risk of collision.

Echomax Active-XS has FCC approval IS: ZYMACTIVE-XS - NATO stock number 5841-99-269-3512

SPECIFICATIONS:

Reception frequency:
X Band Radar 9.3-9.5 GHz
S Band Radar 2.9-3.1 GHz

Operating temperature: - 20 to + 60 degrees C
Voltage: 12V DC - + 30% -10% (voltage and polarity protected)
Power consumption 23mA in standby mode:
Power consumption:
X Band Radar 190mA
S Band Radar 155mA

Position accuracy: Within 1 meter
EIRP: 1W (typical)
Antenna length: 685mm
Antenna width: 40.5mm
Antenna weight excl. cable: 573 g
Control Box width: 92mm
Control Box height: 51 mm
Control Box depth: 38mm
Control box weight: 99g
Cable length: 24m 3-core 0.5mm2
Cable weight: 967 g
Note: Mast mount must be purchased separately!
