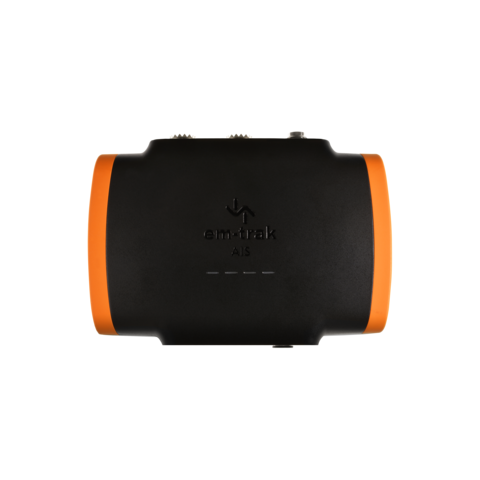

em-trak B924 "CSTDMA" AIS Transponder Class B 2W transmit power w/ Wi-Fi, Bluetooth & Splitter 430-0007

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

The em-trak B924 Class B AIS transponder has a standard 2W transmit power (CSTDMA). The B924 is small and lightweight, yet delivers best-in-class AIS receive and transmit performance, allowing you to see more AIS information and targets at maximum range - all achieved with the lowest power consumption.
The B924 combines WiFi and Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device or PC. In addition, the B924 has a high-performance integrated VHF antenna splitter, which allows the transponder to share your existing VHF antenna without any loss of performance.
With built-in intelligent connectivity, an integrated 2nd generation GPS receiver and antenna, and a unique FLEXI-FIT™ mounting system, installation is safe and simple.

Overview:

Certified AIS Class B - 2W CSTDMA
Integrated WiFi and Bluetooth
Integrated VHF antenna splitter
Global certification - USCG / FCC / Canada / Europe
SRT-AIS™ Transceiver Engine proven to offer unrivaled performance
FLEXI-FIT™ mounting system for easy, convenient and safe installation
Internal high-performance GPS receiver and antenna (external antenna optional)
Water, pressure and moisture proof (IPx7 & IPx6 certified)
Protected against vibrations, shocks and extreme temperatures
Small and lightweight
Ultra-low power consumption - best in class
NMEA0183 & NMEA2000
Automated health and performance monitoring
Silent Mode (transmit-off) function
Enhanced RF screening to protect against electromagnetic interference
Built-in surge protection
PHYSICAL SPECIFICATION:

Size 150 X 110 mm
Weight 370g
ELECTRICAL SPECIFICATION:

Power Supply 12 - 24v Dc
Power Consumption 2.95W 3.35W
Galvanic Isolation (280mA @ 12V)
CONNECTORS:

VHF Antenna Output SO239
VHF Radio Input SO239
GNSS Antenna TNC
Standard 5 Way NMEA2000 Micro Connector
Power/NMEA0183 12 Way Circular Multipole
USB Micro B
DATA INTERFACES:

Physical Data Interfaces NMEA0183 (2) NMEA2000 USB
WiFi Type IEEE 802.11 (a/b/g)
Bluetooth Type BLE 4.0 Classic
STANDARDS COMPLIANCE:

AIS Standards IEC62287-1 ED 3, ITU-R M.1371-5,
Product Safety Standards EN60950-1 2006 +A11:2009
+A1:2010 +A12:2011 +A2:2013 EN62311:2008
CFR 47 PT1.1310 (2016)
Health Canada Safety Code 6
ARPANSA Radiation Protection Series No.3
Environmental Standard IEC60945 EDITION 4
Serial Data Interface Standards IEC61162-1 ED 5.0
IEC61162-2 ED 1.0
GNSS Performance Standards IEC61108-1 ED 2.0
IEC61108-02 ED 1.0
NMEA2000 Interface Standard NMEA2000 EDITION 3.101
VHF TRANSCEIVER:

Access Scheme CSTDMA
Operating Frequency Range 156MHz To 163MHz
AIS Receiver Sensitivity -111dBm
AIS Transmit Power 2W (+33dBm)
GNSS RECEIVER & ANTENNA:

Channels 72
GNSS Type & Performance GPS/Galileo + GLONASS or BEIDOU
Environmental Standard:

Category Exposed
Water Proofing Ipx6 And Ipx7
Operating Temperature -25ºc To +55ºc
ANTENNA SPLITTER:

VHF Radio Transmit Path Loss < 1dB
Receive Path Loss 0dB
Path Switching Time 25W
Path On Power Failure VHF To Antenna
Antenna Fault Detection Yes
Antenna Fault Detection Solid-state
IN THE BOX:

1 X AIS TRANSCEIVER
1 X POWER AND DATA CABLE (2M)
1 X VHF RADIO ACCESSORY CABLE
1 X FLEXI-FIT MOUNTING BRACKET
COMPLETE WITH SCREWS OR OPTIONAL FIXING TAPE
