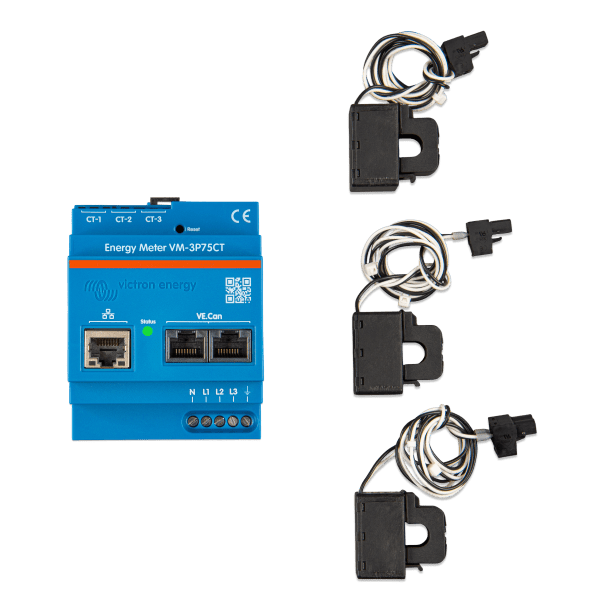

Victron Energy Meter VM-3P75CT – 3-phase – max 75A/phase

Item no. VIC-10115

Victron Energy Meter VM-3P75CT – 3-phase – max 75A/phase

Få overblik over et kompatibelt energisystem fra et fælles betjeningspunkt.

  • Samler eller formidler data fra de enheder, modellen understøtter.
  • Maks. strøm: 75 A pr. fase (op til ca. 80A)
  • Spænding: 85–265V (L-N) / 150–460V (L-L)
  • Angivet strømstyrke: 75 A
Price each
1.419,95 DKK

Includes VAT. Shipping calculated at checkout.

View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

Technical details
Maks. strøm75 A pr. fase (op til ca. 80A)
Spænding85–265V (L-N) / 150–460V (L-L)
Angivet strømstyrke75 A
Angivet strøm75A
SpecifikationData
ProduktEnergy Meter VM-3P75CT
Faser3
KommunikationVE.Can + Ethernet (Modbus TCP/UDP)
Opdateringshastighedca. 100 ms
MonteringDIN-skinne
IP klasseIP20
MærkeVictron
KapslingsklasseIP20
Installation and choosing accessories

Kontrollér porte, dataprotocol, kompatible enheder og eventuelle krav til skærm eller internetforbindelse.

Full product description

Advanced energy measurement with high speed and precision.

The Victron Energy Meter VM-3P75CT is a modern 3-phase energy meter designed for precise measurement of current, voltage, and energy consumption in both single- and three-phase systems. It is developed specifically for Victron systems and provides fast and accurate data to GX devices and the VRM portal.

With the included split-core current transformers, installation is easy and can be done without altering existing wiring.

⚡ Advantages

  • 3-phase energy measurement (up to 75A per phase)

  • High refresh rate (approx. 100 ms)

  • Communication via both VE.Can and Ethernet

  • Incl. current transformers for easy installation

  • Highly precise measurement – even with varying loads

  • Ideal for ESS systems and energy monitoring

The VM-3P75CT is faster and more advanced than older models and provides better real-time data for your system.

⛵ Suitable for

  • Solar power systems and ESS systems

  • Measuring grid consumption and export

  • Monitoring of PV inverter or generator

  • AC loads and distribution boards

  • Both on- and off-grid installations

📊 Specifications

Specification Data
Product Energy Meter VM-3P75CT
Phases 3
Max. current 75 A per phase (up to approx. 80A)
Voltage 85–265V (L-N) / 150–460V (L-L)
Communication VE.Can + Ethernet (Modbus TCP/UDP)
Refresh rate approx. 100 ms
Mounting DIN rail
IP rating IP20

🔧 Installation

The device is typically installed:

  • In an electrical cabinet on a DIN rail

  • With included current transformers (clip-on)

  • Connected to a GX device via VE.Can or network

📦 Package contents

  • 1 × Victron Energy Meter VM-3P75CT

  • 3 × current transformers (CT)

  • VE.Can terminators

💡 Tip from SejlStrøm:
If you run ESS or want to optimize your power consumption, the VM-3P75CT is the best choice from Victron. The fast data update makes a big difference, especially if you want to control import/export precisely 👍
