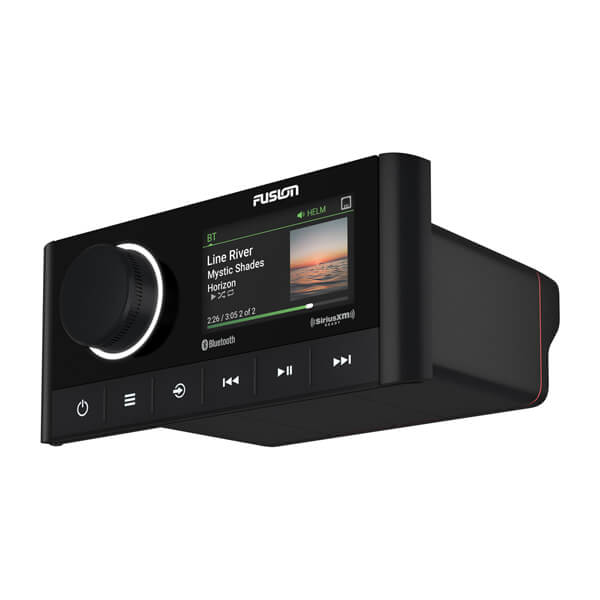

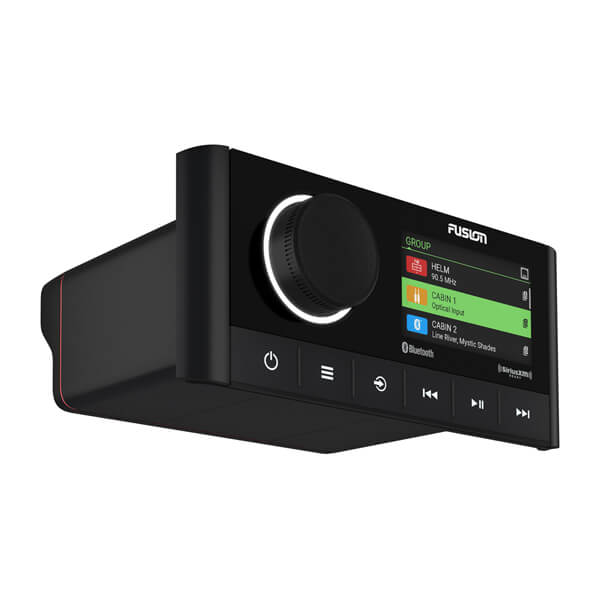

Apollo RA670
Item no. GAR-10488
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Strøm (maks.): 15 A
- Strømforsyning: 10.8 - 16 VDC
- Nominel udgangseffekt (2 ohm): 43 watt RMS x 4 ved 14,4 V indgang < 10% THD
What is included
- Ledningsnet til AUX-indgang, linjeudgang og subwooferudgang
- 2 meter NMEA 2000® dropkabel
Technical details
Your selected configuration: Standard
| Strøm (maks.) | 15 A |
|---|---|
| Strømforsyning | 10.8 - 16 VDC |
| Nominel udgangseffekt (2 ohm) | 43 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Nominel udgangseffekt (4 ohm) | 26 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Maks. effekt | 280 watt |
| Produkt/model | Apollo RA670 |
| Producent | Fusion |
| Vandtæthedsklasse | IPX6 og IPX7 (kun frontpanelet, når det er korrekt installeret) |
| Skærm | 2,7” optisk forbundet LCD i farve |
| Trådløse frekvenser/protokoller | Bluetooth®: 2,4 GHz @ +12 dBm nomineltANT®: 2,4 GHz @ +7 dBm nominelt |
| NMEA 2000® porte | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Ethernet porte | 1 |
| Trådløs Bluetooth® rækkevidde | Op til 10 meter (30 ft) |
| USB 2.0-porte | 1 |
| SiriusXM porte | 1 |
| Antenneporte | 1 |
| Driftstemperatur | 32° til 122° F (0° til 50° C) |
| Forstærker | Klasse D (2 ohm stereo-stabil) |
| Sikkerhedsafstand for kompas | 7.87" (200 mm) |
| Indbygget DSP (Digital Signal Processing) | Ja, med DSP-profil via Garmin Audio app |
| Stereo netværk | Ja (kablet) |
| Garmin audio control | Ja (MFD, smartenhed og Garmin ur) |
| Multi-Zone™ teknologi | 3 zoner |
| Softwareopdateringer | Trådløse opdateringer via Fusion-Link™ appen / USB |
| Ekstra indgange (RCA) | 1 |
| Optiske lydindgange (Digital Optical Input SPDIF) | 1 |
| Højttalerforbindelser | 4 (2-zone forstærket) |
| RCA pre-out (venstre, højre og subwoofer) | 3 zoner (kræver ekstern forstærkning) |
| Line-out | 3 (1 x V + H pr. zone, kræver ekstern forstærkning) |
| Subwooferudgang | 3 (1 monoudgang pr. zone, kræver ekstern forstærkning) |
| Trådløs ANT® rækkevidde | Op til 3 meter (10 ft) |
| Ekstra | DAB+ kræver Fusion® DAB+ modul (sælges separat). |
| Modelserie | Apollo |
| Mærke | Garmin |
| Kapslingsklasse | IPX6 / IPX7 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér monteringsmål, strømforsyning, sikring, højttalerbelastning, zoner og eventuelle netværksforbindelser. Afklar også om eksisterende fjernbetjeninger og andet Fusion-udstyr er kompatibelt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Apollo RA670 bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Apollo RA670 – developed for life on board
With the Apollo RA670, you get a marine stereo for music, zone control, and operation of your onboard audio system. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want control over compatibility, mounting, and practical use on board.
⚡ Practical benefits
- Marine entertainment system with DSP
- High-quality audio streaming via Apple AirPlay 2 over Wi-Fi® from a compatible Apple device to multiple Apollo series stereo units connected to the same network.
- The Apollo RA670 marine stereo has inherited key audio innovations and revolutionary technology from the award-winning Apollo RA770, redesigned in a compact form factor.
- Centralizes the operation of the boat’s audio system in one place and can be used as the hub for multiple audio zones, depending on the model.
- Developed for life on board, where moisture, vibrations, and installation in limited spaces must be taken into account.
- Can be combined with compatible Fusion speakers, subwoofers, amplifiers, and remote controls.
⛵ Well-suited for
- Saloon, cockpit, and flybridge, where music needs to be controlled easily
- New Fusion installations and upgrades of older stereo systems
- Boat owners who want assistance with zones, NMEA/networks, amplifiers, and speakers
📊 Specifications
| Product/model | Apollo RA670 |
|---|---|
| Manufacturer | Fusion |
| Water resistance rating | IPX6 and IPX7 (front panel only, when installed correctly) |
| Display | 2.7” optically bonded color LCD |
| Current (max) | 15 A |
| Power supply | 10.8 - 16 VDC |
| Rated output power (2 ohm) | 43 watts RMS x 4 at 14.4 V input < 10% THD |
| Rated output power (4 ohm) | 26 watts RMS x 4 at 14.4 V input < 10% THD |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Ethernet ports | 1 |
| Wireless Bluetooth® range | Up to 10 meters (30 ft) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Amplifier | Class D (2 ohm stereo-stable) |
| Compass safe distance | 7.87" (200 mm) |
| Max power | 280 watts |
| Built-in DSP (Digital Signal Processing) | Yes, with DSP profile via Garmin Audio app |
| Stereo network | Yes (wired) |
| Garmin audio control | Yes (MFD, smart device, and Garmin watch) |
| Multi-Zone™ technology | 3 zones |
| Software updates | Wireless updates via the Fusion-Link™ app / USB |
| Auxiliary inputs (RCA) | 1 |
| Optical audio inputs (Digital Optical Input SPDIF) | 1 |
| Speaker connections | 4 (2-zone amplified) |
| RCA pre-out (left, right, and subwoofer) | 3 zones (requires external amplification) |
| Line-out | 3 (1 x L + R per zone, requires external amplification) |
| Subwoofer output | 3 (1 mono output per zone, requires external amplification) |
| Wireless ANT® range | Up to 3 meters (10 ft) |
| Extra | DAB+ requires Fusion® DAB+ module (sold separately). |
📦 Package contents
- Wiring harness for AUX input, line output, and subwoofer output
- 2-meter NMEA 2000® drop cable
🔧 Installation and compatibility
Check mounting dimensions, power supply, fuse, speaker load, zones, and any network connections. Also, verify whether existing remote controls and other Fusion equipment are compatible.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Apollo RA670. You are welcome to send photos and model numbers, and I will help with the assessment.
