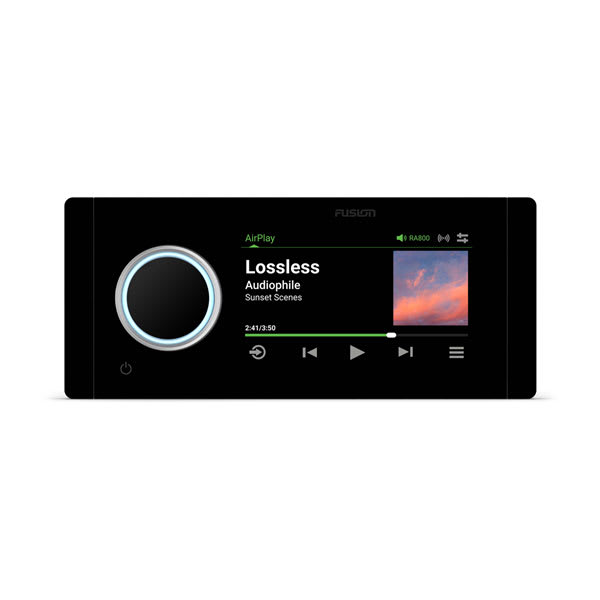

Fusion Apollo™ MS-RA800 marine stereo system
Item no. FUS-10141
Gør det nemt at vælge lydkilden og sætte stemningen om bord.
- Samler afspilning og betjening af de lydkilder, modellen understøtter.
- Fysiske mål (højde): 82 mm (3,23")
- Fysiske mål (bredde): 192 mm (7,56")
- Fysiske mål (dybde): 119,4 mm (4,7")
Technical details
Your selected configuration: Standard
| Fysiske mål (højde) | 82 mm (3,23") |
|---|---|
| Fysiske mål (bredde) | 192 mm (7,56") |
| Fysiske mål (dybde) | 119,4 mm (4,7") |
| Vægt | 620 g (1,37 lbs) |
| Strømforbrug (maks.) | 25 A ved 14,4 V15A ved 28,8 V |
| Strømforsyning | 10,8 til 32 Vdc |
| Nominel kontinuerlig (RMS) effekt (14,4 V indgang ved 4 ohm < 1 % THD) | 40 W x 4 |
| Produkt/model | Fusion Apollo™ MS-RA800 marinestereoanlæg |
| Producent | Fusion |
| Kontrol af overfladestøv/vandtæthedsklassifikation (når korrekt installeret) | IPX6 og IPX7 |
| Bageste støv-/vandtæthedsklassifikation (når korrekt monteret) | IPX3 |
| Skærmstørrelse | 109 mm (4,3") |
| Skærmtype | Kapacitiv touchscreen farve LCD |
| Skærmopløsning | 800 x 480 |
| NMEA 2000® porte | 1 |
| NMEA 2000® LEN | 2 (65 mA) |
| Ethernet porte | 1 |
| Bluetooth® hovedtelefoner | Ja (Bluetooth® 5.3) |
| HDMI-ARC-porte | 1 |
| USB 2.0-porte | 1 (USB-C) |
| Antenneporte | 2 (1 x Motorola (hun), 1 x FAKRA Z (han) |
| DAB+ ports (FAKRA connector) | 1 |
| Driftstemperatur | 20° til 70° C |
| Sikkerhedsafstand for kompas | 150 mm (5,9) |
| Indbygget forstærker | Klasse D (4 Ω) |
| Indbygget DSP (Digital Signal Processing) | Ja, med DSP-profil via Garmin Audio app |
| Stereo netværk | Ja (kablet eller trådløs) |
| Garmin audio control | Ja (MFD, smartenhed og Garmin ur) |
| Multi-Zone™ teknologi | 4 zoner |
| Softwareopdateringer | Over-the-air updates via Garmin Audio app/USB |
| Understøttede kilder | AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB lyd, iPhone, iPod, AUX x2, DAB+Source (upfront AM/FM) |
| Understøttede lydformater (USB) | MP3, AAC, M4A, FLAC, WAV |
| Ekstra indgange (RCA) | 2 |
| Højttalerforbindelser | 4 (2-zone forstærket) |
| RCA-forforstærkerudgange (venstre, højre og subwoofer – kræver ekstern forstærkning) | 4 zoner |
| Linjeudgang (kræver ekstern forstærkning) | 4 (L + R pr zone) |
| Modelserie | Apollo |
| Mærke | Fusion |
| Kapslingsklasse | IPX6 / IPX7 / IPX3 |
Installation and choosing accessories
Kontrollér spænding, tilslutninger, kompatible fjernbetjeninger og monteringsmål.
Installation og kompatibilitet
Kontrollér monteringsmål, strømforsyning, sikring, højttalerbelastning, zoner og eventuelle netværksforbindelser. Afklar også om eksisterende fjernbetjeninger og andet Fusion-udstyr er kompatibelt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion Apollo™ MS-RA800 marinestereoanlæg bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion Apollo™ MS-RA800 marine stereo – designed for life on board
With the Fusion Apollo™ MS-RA800 marine stereo, you get a marine audio system for music, zone control, and operation of your onboard sound system. It is an ideal choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, ease of mounting, and practical use on board.
⚡ Practical benefits
- It is easy to network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® or Garmin BlueNet™ network for integrated audio control at the helm.
- QUICK SWAP FROM RA770 TO RA800
- With an identical form factor to its predecessor, the RA770, upgrading and installing the RA800 is straightforward.
- Consolidates control of the boat's audio system into one location and can serve as the center for multiple audio zones depending on the model.
- Engineered for life on board, taking into account moisture, vibrations, and installation in limited spaces.
- Can be combined with compatible Fusion speakers, subwoofers, amplifiers, and remote controls.
⛵ Suitable for
- Salons, cockpits, and flybridges where music needs to be easily controlled
- New Fusion installations and upgrades of older stereo systems
- Boat owners who want assistance with zones, NMEA/networking, amplifiers, and speakers
📊 Specifications
| Product/model | Fusion Apollo™ MS-RA800 marine stereo |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (height) | 82 mm (3.23") |
| Physical dimensions (width) | 192 mm (7.56") |
| Physical dimensions (depth) | 119.4 mm (4.7") |
| Weight | 620 g (1.37 lbs) |
| Front dust/water rating (when correctly installed) | IPX6 and IPX7 |
| Rear dust/water rating (when correctly mounted) | IPX3 |
| Display size | 109 mm (4.3") |
| Display type | Capacitive touchscreen color LCD |
| Display resolution | 800 x 480 |
| Power consumption (max) | 25 A at 14.4 V 15 A at 28.8 V |
| Power supply | 10.8 to 32 Vdc |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 2 (65 mA) |
| Ethernet ports | 1 |
| Bluetooth® headphones | Yes (Bluetooth® 5.3) |
| HDMI-ARC ports | 1 |
| USB 2.0 ports | 1 (USB-C) |
| Antenna ports | 2 (1 x Motorola (female), 1 x FAKRA Z (male)) |
| DAB+ ports (FAKRA connector) | 1 |
| Operating temperature | -20° to 70° C |
| Rated continuous (RMS) power (14.4 V input at 4 ohms < 1% THD) | 40 W x 4 |
| Compass safe distance | 150 mm (5.9") |
| Built-in amplifier | Class D (4 Ω) |
| Built-in DSP (Digital Signal Processing) | Yes, with DSP profile via Garmin Audio app |
| Stereo networking | Yes (wired or wireless) |
| Garmin audio control | Yes (MFD, smart device, and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| Software updates | Over-the-air updates via Garmin Audio app/USB |
| Supported sources | AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2, DAB+ Source (upfront AM/FM) |
| Supported audio formats (USB) | MP3, AAC, M4A, FLAC, WAV |
| Auxiliary inputs (RCA) | 2 |
| Speaker connections | 4 (2-zone amplified) |
| RCA pre-amp outputs (left, right, and subwoofer – requires external amplification) | 4 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
📦 In the box
- The scope of delivery may vary between models and variants. Please check the official documentation for your specific variant before ordering.
🔧 Installation and compatibility
Verify mounting dimensions, power supply, fuses, speaker load, zones, and any network connections. Also, clarify whether existing remote controls and other Fusion equipment are compatible.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Fusion Apollo™ MS-RA800 marine stereo. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
