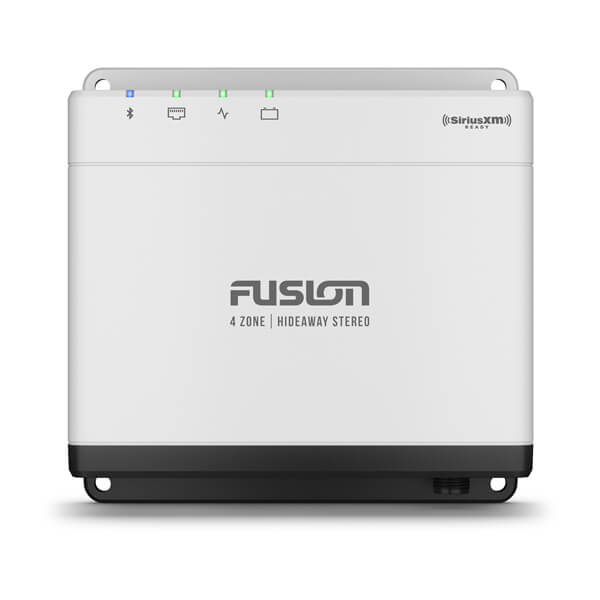

Fusion® Apollo™ MS-WB675 hideaway marine stereo
Item no. FUS-10156
Gør det nemt at vælge lydkilden og sætte stemningen om bord.
- Samler afspilning og betjening af de lydkilder, modellen understøtter.
- Vægt: 1.05 lbs (475 g)
- Strøm (maks.): 15 A
- Strømforsyning: 10.8 - 16 VDC
What is included
- 6 ft (2 meter) NMEA 2000® dropkabel
Technical details
Your selected configuration: Standard
| Vægt | 1.05 lbs (475 g) |
|---|---|
| Strøm (maks.) | 15 A |
| Strømforsyning | 10.8 - 16 VDC |
| Nominel udgangseffekt (2 ohm) | 43 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Nominel udgangseffekt (4 ohm) | 26 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Maks. effekt | 280 watt |
| Produkt/model | Fusion® Apollo™ MS-WB675 marinestereoanlæg, der kan skjules |
| Producent | Fusion |
| Fysisk størrelse (BxHxD) | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
| Vandtæthedsklasse | IPX2 (når den er monteret korrekt) |
| Trådløse frekvenser/protokoller | Bluetooth®: 2,4 GHz @ +12 dBm nomineltANT®: 2,4 GHz @ +7 dBm nominelt |
| NMEA 2000® porte | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Ethernet porte | 1 |
| Trådløs Bluetooth® rækkevidde | Op til 10 meter (30 ft) |
| USB 2.0-porte | 1 |
| SiriusXM porte | 1 |
| Antenneporte | 1 |
| Driftstemperatur | 32° til 122° F (0° til 50° C) |
| Forstærker | Klasse D (2 ohm stereo-stabil) |
| Sikkerhedsafstand for kompas | 5.9" (150 mm) |
| Indbygget DSP (Digital Signal Processing) | Ja, med DSP-profil via Garmin Audio app |
| Stereo netværk | Ja (kablet) |
| Garmin audio control | Ja (MFD, smartenhed og Garmin ur) |
| Multi-Zone™ teknologi | 4 zoner |
| Softwareopdateringer | Trådløse opdateringer via Fusion-Link™ appen / USB |
| Understøttede kilder | AM, FM, Bluetooth®, Apple® AirPlay® 2, digital optisk indgang, USB-lyd, iPhone®, iPod®, AUX x, UPnP, MTP |
| Ekstra indgange (RCA) | 1 |
| Optiske lydindgange (Digital Optical Input SPDIF) | 1 |
| Højttalerforbindelser | 4 (2-zone forstærket) |
| RCA pre-out (venstre, højre og subwoofer) | 4 zoner (kræver ekstern forstærkning) |
| Line-out | 4 (1 x V + H pr. zone, kræver ekstern forstærkning) |
| Subwooferudgang | 4 (1 monoudgang pr. zone, kræver ekstern forstærkning) |
| Trådløs ANT® rækkevidde | Op til 3 meter (10 ft) |
| Ekstra | DAB+ kræver Fusion® DAB+ modul (sælges separat). |
| Modelserie | Apollo |
| Mærke | Fusion |
| Kapslingsklasse | IPX2 |
Installation and choosing accessories
Kontrollér spænding, tilslutninger, kompatible fjernbetjeninger og monteringsmål.
Installation og kompatibilitet
Kontrollér monteringsmål, strømforsyning, sikring, højttalerbelastning, zoner og eventuelle netværksforbindelser. Afklar også om eksisterende fjernbetjeninger og andet Fusion-udstyr er kompatibelt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® Apollo™ MS-WB675 marinestereoanlæg, der kan skjules bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion® Apollo™ MS-WB675 hideaway marine stereo – designed for life on board
With the Fusion® Apollo™ MS-WB675 hideaway marine stereo, you get a marine stereo system for music, zone management, and control of your onboard audio system. It is an ideal choice when you want the equipment to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical Benefits
- Looking for a more streamlined system? You can connect the Apollo WB675 to your compatible MFD using an Ethernet or NMEA 2000® network connection without the need for an additional wired remote.
- 1Available when connected to a wireless network router, Garmin MFD, or Apollo Series stereo network enabled with Wi-Fi technology.
- Fusion® Signature Series 3i coaxial marine speakers
- Centralizes the control of the boat's audio system and can be used as the hub for multiple audio zones, depending on the model.
- Designed for life on board, where moisture, vibrations, and installation in limited space must be considered.
- Can be combined with compatible Fusion speakers, subwoofers, amplifiers, and remote controls.
⛵ Suitable for
- Saloon, cockpit, and flybridge, where music needs to be controlled easily
- New Fusion installations and upgrades of older stereo systems
- Boat owners who want assistance with zones, NMEA/networking, amplifiers, and speakers
📊 Specifications
| Product/model | Fusion® Apollo™ MS-WB675 hideaway marine stereo |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (WxHxD) | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
| Weight | 1.05 lbs (475 g) |
| Water resistance rating | IPX2 (when mounted correctly) |
| Power (max) | 15 A |
| Power input | 10.8 - 16 VDC |
| Rated power output (2 ohm) | 43 watts RMS x 4 at 14.4 V input < 10% THD |
| Rated power output (4 ohm) | 26 watts RMS x 4 at 14.4 V input < 10% THD |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +12 dBm nominalANT®: 2.4 GHz @ +7 dBm nominal |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Ethernet ports | 1 |
| Wireless Bluetooth® range | Up to 10 meters (30 ft) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Amplifier | Class D (2 ohm stereo-stable) |
| Compass safe distance | 5.9" (150 mm) |
| Max power | 280 watts |
| Built-in DSP (Digital Signal Processing) | Yes, with DSP profile via Garmin Audio app |
| Stereo network | Yes (wired) |
| Garmin audio control | Yes (MFD, smart device, and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| Software updates | Wireless updates via the Fusion-Link™ app / USB |
| Supported sources | AM, FM, Bluetooth®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x, UPnP, MTP |
| Auxiliary inputs (RCA) | 1 |
| Digital optical input (SPDIF) | 1 |
| Speaker connections | 4 (2-zone amplified) |
| RCA pre-out (left, right, and subwoofer) | 4 zones (requires external amplification) |
| Line-out | 4 (1 x L + R per zone, requires external amplification) |
| Subwoofer output | 4 (1 mono output per zone, requires external amplification) |
| Wireless ANT® range | Up to 3 meters (10 ft) |
| Extras | DAB+ requires Fusion® DAB+ module (sold separately). |
📦 In the box
- 6 ft (2 meter) NMEA 2000® drop cable
🔧 Installation and compatibility
Verify mounting dimensions, power supply, fuses, speaker load, zones, and any network connections. Also, clarify whether existing remote controls and other Fusion equipment are compatible.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Fusion® Apollo™ MS-WB675 hideaway marine stereo. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
Your selected configuration: Standard
| Vægt | 1.05 lbs (475 g) |
|---|---|
| Strøm (maks.) | 15 A |
| Strømforsyning | 10.8 - 16 VDC |
| Nominel udgangseffekt (2 ohm) | 43 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Nominel udgangseffekt (4 ohm) | 26 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Maks. effekt | 280 watt |
| Produkt/model | Fusion® Apollo™ MS-WB675 marinestereoanlæg, der kan skjules |
| Producent | Fusion |
| Fysisk størrelse (BxHxD) | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
| Vandtæthedsklasse | IPX2 (når den er monteret korrekt) |
| Trådløse frekvenser/protokoller | Bluetooth®: 2,4 GHz @ +12 dBm nomineltANT®: 2,4 GHz @ +7 dBm nominelt |
| NMEA 2000® porte | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Ethernet porte | 1 |
| Trådløs Bluetooth® rækkevidde | Op til 10 meter (30 ft) |
| USB 2.0-porte | 1 |
| SiriusXM porte | 1 |
| Antenneporte | 1 |
| Driftstemperatur | 32° til 122° F (0° til 50° C) |
| Forstærker | Klasse D (2 ohm stereo-stabil) |
| Sikkerhedsafstand for kompas | 5.9" (150 mm) |
| Indbygget DSP (Digital Signal Processing) | Ja, med DSP-profil via Garmin Audio app |
| Stereo netværk | Ja (kablet) |
| Garmin audio control | Ja (MFD, smartenhed og Garmin ur) |
| Multi-Zone™ teknologi | 4 zoner |
| Softwareopdateringer | Trådløse opdateringer via Fusion-Link™ appen / USB |
| Understøttede kilder | AM, FM, Bluetooth®, Apple® AirPlay® 2, digital optisk indgang, USB-lyd, iPhone®, iPod®, AUX x, UPnP, MTP |
| Ekstra indgange (RCA) | 1 |
| Optiske lydindgange (Digital Optical Input SPDIF) | 1 |
| Højttalerforbindelser | 4 (2-zone forstærket) |
| RCA pre-out (venstre, højre og subwoofer) | 4 zoner (kræver ekstern forstærkning) |
| Line-out | 4 (1 x V + H pr. zone, kræver ekstern forstærkning) |
| Subwooferudgang | 4 (1 monoudgang pr. zone, kræver ekstern forstærkning) |
| Trådløs ANT® rækkevidde | Op til 3 meter (10 ft) |
| Ekstra | DAB+ kræver Fusion® DAB+ modul (sælges separat). |
| Modelserie | Apollo |
| Mærke | Fusion |
| Kapslingsklasse | IPX2 |
