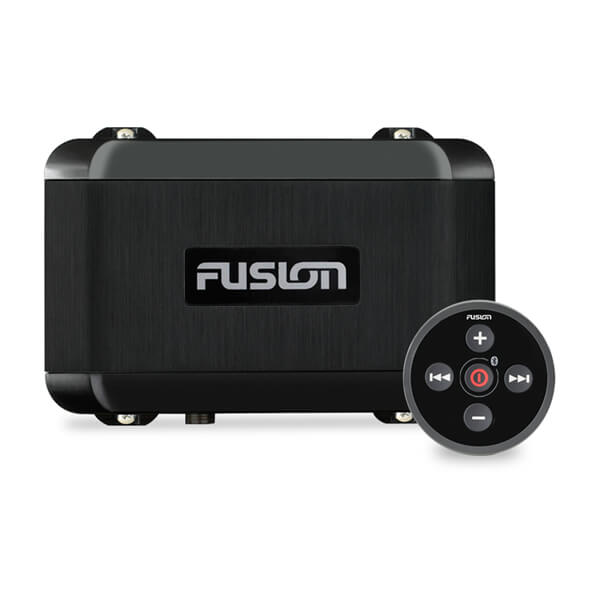

Fusion BB100 Black Box Entertainment System
Item no. FUS-10150
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Vægt: 1.23 lbs (560 g)
- Strøm (maks.): 15 A
- Strømforsyning: 10.8 - 16 VDC
What is included
- Kræver et MS-DAB100A antennemodul (sælges separat). Kun tilgængelig i Europa og Australien.
- IPX7 kabelforbundet fjernbetjening
- En monteringsmøtrik til fjernbetjening (M56)
- En monteringspakning til fjernbetjening
- Fire 8-gauge monteringsskruer
- 6 ft (2 meter) NMEA 2000® dropkabel
- Betjen BB100 ved hjælp af den kabelforbundne IPX7 fjernbetjening, der medfølger.
Technical details
Your selected configuration: Standard
| Vægt | 1.23 lbs (560 g) |
|---|---|
| Strøm (maks.) | 15 A |
| Strømforsyning | 10.8 - 16 VDC |
| Nominel udgangseffekt (4 ohm) | 26 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Maks. effekt | 200 W |
| Produkt/model | Fusion BB100 Media Black Box |
| Producent | Fusion |
| Fysisk størrelse (BxHxD) | Black Box: 6.1" x 3.7" x 2.63" (155 x 94 x 60 mm)Remote: 2.56" x 2.56" x 2.13" (65 x 65 x 54 mm) |
| Vandtæthedsklasse | Black Box: IPX3 (når den er korrekt installeret)Fjernbetjening med kabel: IPX7 (kun frontpanelet, når det er monteret korrekt) |
| Trådløse frekvenser/protokoller | Bluetooth®: 2,4 GHz @ +1.9 dBm nomineltANT®: 2,4 GHz @ +1.9 dBm nominelt |
| NMEA 2000® porte | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Trådløs Bluetooth® rækkevidde | Op til 10 meter (30 ft) |
| USB 2.0-porte | 1 |
| Antenneporte | 1 |
| Driftstemperatur | 32° til 122° F (0° til 50° C) |
| Forstærker | Klasse AB (4 ohm) |
| Sikkerhedsafstand for kompas | 5.9" (150 mm) |
| Garmin audio control | Ja (MFD, smartenhed og Garmin ur) |
| Multi-Zone™ teknologi | 2 zoner |
| Softwareopdateringer | USB |
| Understøttede kilder | AM, FM, Bluetooth®, USB-lyd, iPhone®, iPod®, AUX x, AOAKlar til DAB+ (kun tilgængelig i Europa og Australien) |
| Ekstra indgange (RCA) | 1 |
| Højttalerforbindelser | 4 (2-zone forstærket) |
| RCA pre-out (venstre, højre og subwoofer) | 2 zoner (kræver ekstern forstærkning) |
| Line-out | 2 (1 x V + H pr. zone, kræver ekstern forstærkning) |
| Subwooferudgang | Zone (kræver ekstern forstærkning) |
| Trådløs ANT® rækkevidde | Op til 3 meter (10 ft) |
| Mærke | Fusion |
| Kapslingsklasse | IPX3 / IPX7 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér monteringsmål, strømforsyning, sikring, højttalerbelastning, zoner og eventuelle netværksforbindelser. Afklar også om eksisterende fjernbetjeninger og andet Fusion-udstyr er kompatibelt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion BB100 Media Black Box bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description

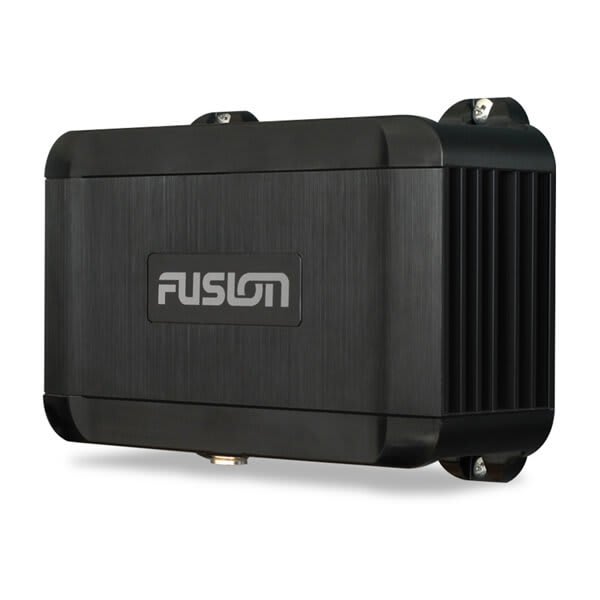

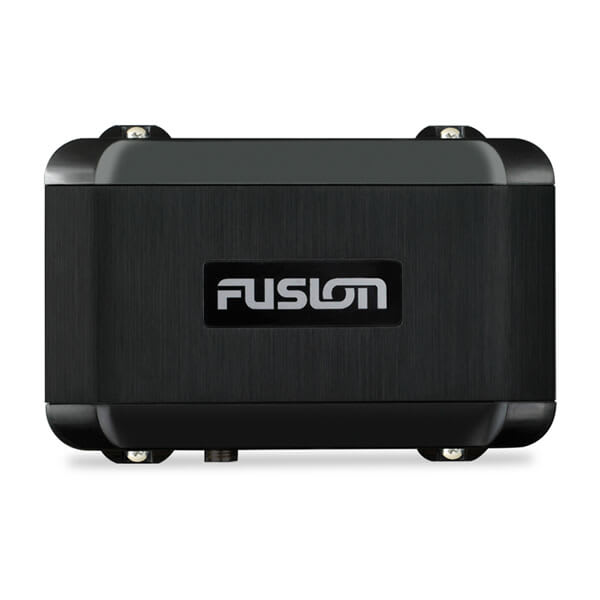

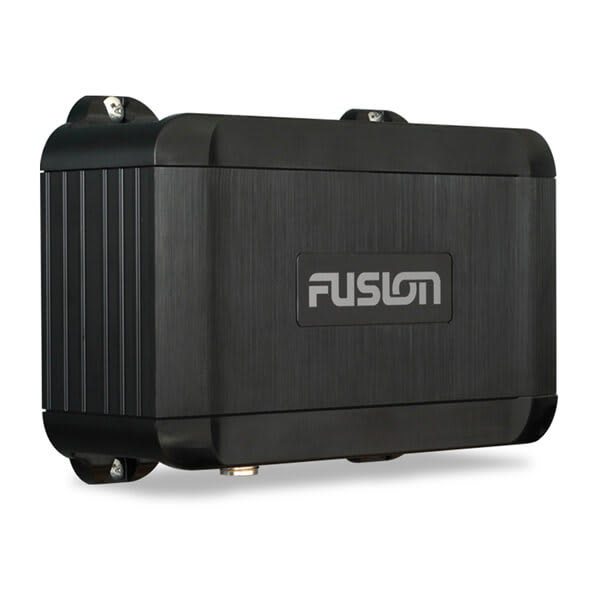

Fusion BB100 Media Black Box – developed for life on board
With the Fusion BB100 Media Black Box, you get a marine stereo for music, zone control, and operation of your onboard audio system. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical benefits
- MS-BB100 media black box
- With the affordable, compact Fusion MS-BB100 black box entertainment solution, there is no need to compromise on sound quality due to limited dash space.
- Control your music from a compatible multifunction display (MFD), a smart device, or a Garmin watch.
- Consolidates the control of the boat's audio system in one place and can serve as the center for multiple audio zones, depending on the model.
- Developed for life on board, where moisture, vibrations, and installation in limited spaces must be considered.
- Can be combined with compatible Fusion speakers, subwoofers, amplifiers, and remote controls.
⛵ Suitable for
- Saloon, cockpit, and flybridge, where the music needs to be easily controlled
- New Fusion installations and upgrades of older stereo systems
- Boat owners who want help with zones, NMEA/networks, amplifiers, and speakers
📊 Specifications
| Product/model | Fusion BB100 Media Black Box |
|---|---|
| Manufacturer | Fusion |
| Physical size (WxHxD) | Black Box: 6.1" x 3.7" x 2.63" (155 x 94 x 60 mm)Remote: 2.56" x 2.56" x 2.13" (65 x 65 x 54 mm) |
| Weight | 1.23 lbs (560 g) |
| Water rating | Black Box: IPX3 (when properly installed)Wired remote: IPX7 (front panel only, when properly mounted) |
| Current (max) | 15 A |
| Power input | 10.8 - 16 VDC |
| Rated power output (4 ohm) | 26 watts RMS x 4 at 14.4 V input < 10% THD |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +1.9 dBm nominalANT®: 2.4 GHz @ +1.9 dBm nominal |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| Bluetooth® wireless range | Up to 10 meters (30 ft) |
| USB 2.0 ports | 1 |
| Antenna ports | 1 |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Amplifier | Class AB (4 ohm) |
| Compass safe distance | 5.9" (150 mm) |
| Peak power | 200 W |
| Garmin audio control | Yes (MFD, smart device, and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Software updates | USB |
| Supported sources | AM, FM, Bluetooth®, USB audio, iPhone®, iPod®, AUX, AOA-ready DAB+ (only available in Europe and Australia) |
| Auxiliary inputs (RCA) | 1 |
| Speaker connections | 4 (2-zone amplified) |
| RCA pre-out (left, right, and subwoofer) | 2 zones (requires external amplification) |
| Line-out | 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | Zone (requires external amplification) |
| ANT® wireless range | Up to 3 meters (10 ft) |
📦 In the box
- Requires an MS-DAB100A antenna module (sold separately). Only available in Europe and Australia.

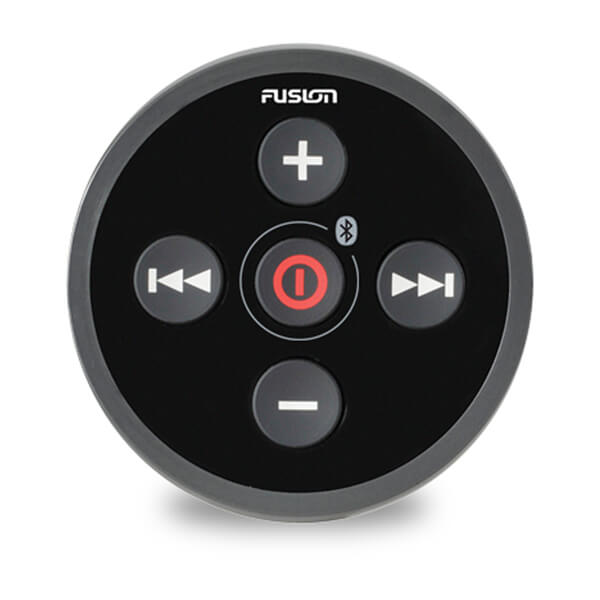

- IPX7 wired remote
- Mounting nut for remote (M56)
- Mounting gasket for remote
- Four 8-gauge mounting screws
- 6 ft (2 meter) NMEA 2000® drop cable
- Control the BB100 using the included IPX7 wired remote.
🔧 Installation and compatibility
Check mounting dimensions, power supply, fuse, speaker load, zones, and any network connections. Also verify whether existing remotes and other Fusion equipment are compatible.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Fusion BB100 Media Black Box. Feel free to send photos and model numbers, and I will be happy to assist with the assessment.
