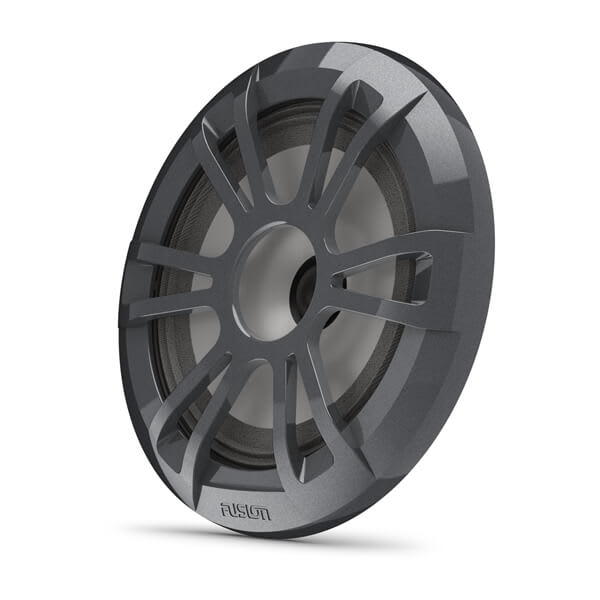

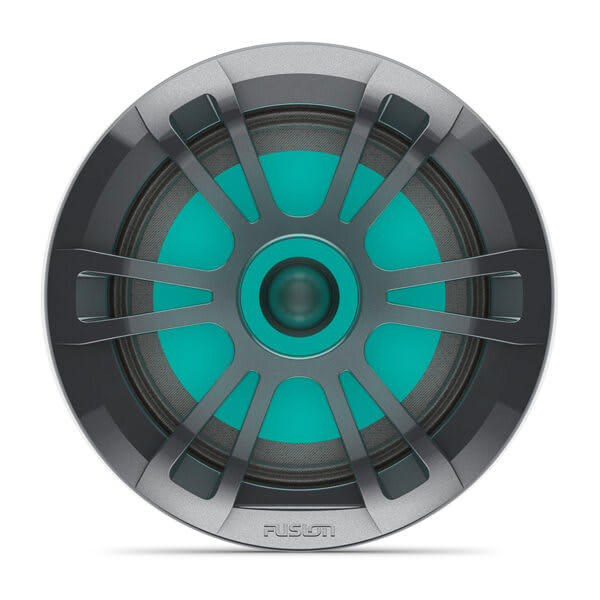

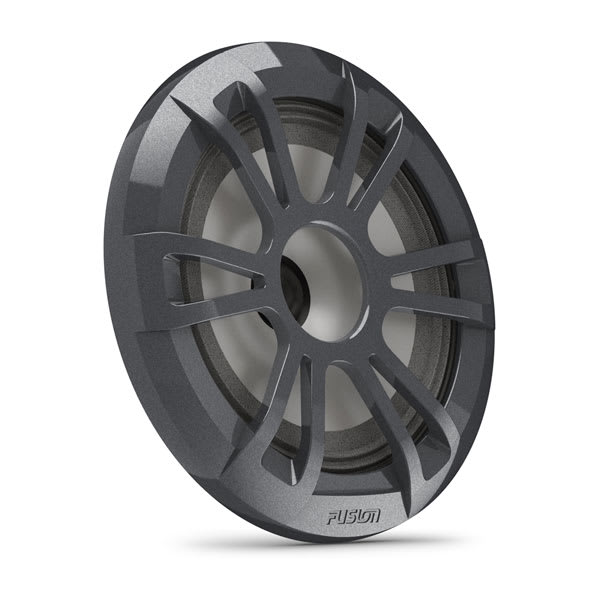

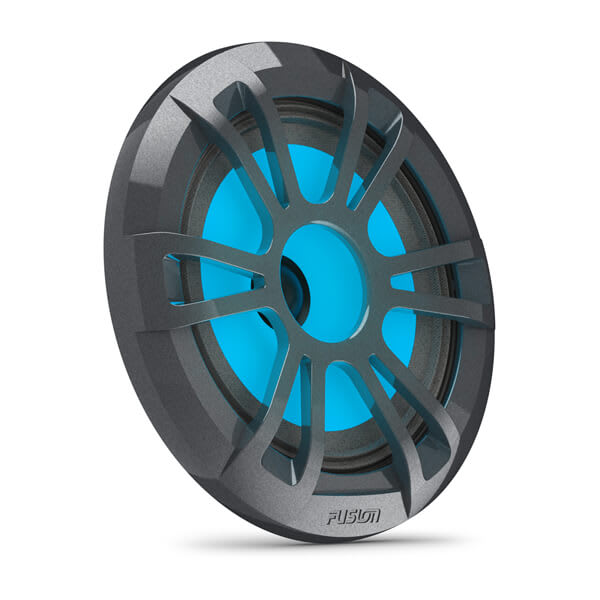

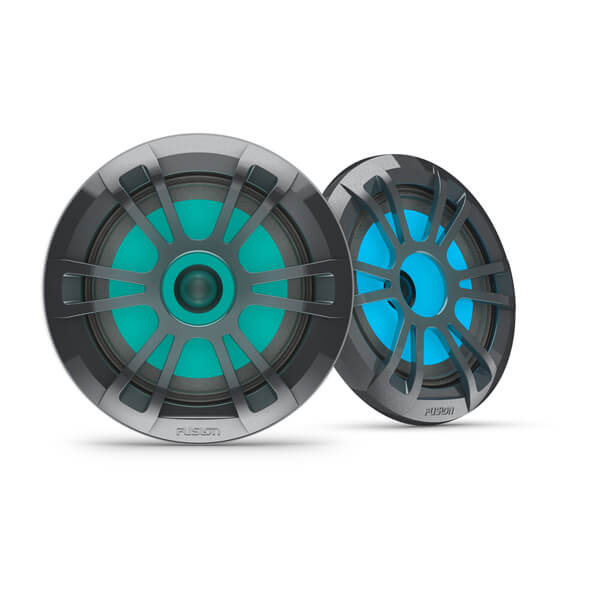

Fusion® EL Series marine speakers, 6.5" 80 watt grey marine sports speaker (pair) with RGB LED lighting
Item no. FUS-10158
Giv den valgte del af båden et lys, der passer til brugen.
- Til belysning eller markering af det område, modellen er beregnet til.
- Fysiske mål (diameter): 6,5" (Classic): 6,93" x (176 mm) 6,5" (Sports): 6,93" (176 mm)
- Fysiske mål (dybde): 6,5" (Classic): 2,26" (57,5 mm) 6,5" (Sports): 2,32" (59 mm)
- Vægt: 0,57 kg (1,26 lbs)
What is included
- 12 monteringsstjerneskruer i rustfrit stål (4,2 mm x 25,4 mm (8 gauge x 1″))
Technical details
Your selected configuration: Standard
| Fysiske mål (diameter) | 6,5" (Classic): 6,93" x (176 mm) 6,5" (Sports): 6,93" (176 mm) |
|---|---|
| Fysiske mål (dybde) | 6,5" (Classic): 2,26" (57,5 mm) 6,5" (Sports): 2,32" (59 mm) |
| Vægt | 0,57 kg (1,26 lbs) |
| Monteringsdiameter, frirum | 130 mm (5,12″) |
| Monteringsdybde, frirum | 43 mm (1,69″) |
| LED belastningsstrøm ved 14,4 V DC (maks.) | 150 mA (kun udvalgte sportsmodeller) |
| Kontinuerlig effekthåndtering (RMS) | 20 W |
| Anbefalet forstærkereffekt (RMS) | 15-60 med kanal |
| LED-forsyningsspænding | 10,8-16 VDC (kun udvalgte sportsmodeller) |
| Produkt/model | Fusion® EL Series marinehøjttalere, 6,5" 80 watt grå marinesportshøjttaler (par) med RGB LED-belysning |
| Producent | Fusion |
| Frekvensrespons (+/- 3 dB) | 45 Hz-16 kHz |
| Størrelser | 6,5″ |
| Farve | Grå |
| Vand- og støvklassifikation | IP65 |
| Højttalertype | Fuld rækkevidde |
| Følsomhed (SPL ved 1 W/1 m) | 88 dB |
| Nominel impedans | 4 Ω |
| LED-belysning | Ja – RGB (kun udvalgte sportsmodeller) |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | Polypropylenkegle med stof-surround |
| Sikkerhedsafstand for kompas | 254 cm (100″) |
| Højttalerforbindelser | Spadestik |
| LED-forbindelse | Endeforbindelser (kun udvalgte sportsmodeller) |
| Frontgitterfremspring | 19 mm (0,75") |
| Mærke | Fusion |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Match spænding, monteringsmål, lysfarve og tæthed med placeringen. Indendørs lys er ikke automatisk egnet til åbent dæk.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® EL Series marinehøjttalere, 6,5" 80 watt grå marinesportshøjttaler (par) med RGB LED-belysning bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion® EL Series Marine Speakers, 6.5" 80-watt Grey Marine Sports Speaker (pair) with RGB LED Lighting – Designed for life on board
With the Fusion® EL Series Marine Speakers, 6.5" 80-watt Grey Marine Sports Speaker (pair) with RGB LED lighting, you get marine speakers for a clearer and fuller audio system on board. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to keep track of compatibility, mounting, and practical use on board.
⚡ Practical benefits
- 6.5" 80-watt grey marine sports speaker (pair) with RGB LED lighting
- Enjoy quality sound and multi-color RGB LED lighting to make your sailing even better with the EL Series speakers from Fusion.
- Multi-color RGB LED lighting (sports model only) that improves your sailing experience.
- Targeted at marine installations where speakers are exposed to moisture, vibrations, and fluctuating temperatures.
- Can be combined with compatible Fusion stereos, amplifiers, and zone control.
- Makes it possible to build a consistent audio solution in several areas of the boat.
⛵ Suitable for
- Cockpit, salon, cabin, or flybridge
- New audio installations and replacement of existing marine speakers
- Boat owners who want help with impedance, power, placement, and cable sizing
📊 Specifications
| Product/model | Fusion® EL Series Marine Speakers, 6.5" 80-watt Grey Marine Sports Speaker (pair) with RGB LED lighting |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter) | 6.5" (Classic): 6.93" (176 mm) 6.5" (Sports): 6.93" (176 mm) |
| Physical dimensions (depth) | 6.5" (Classic): 2.26" (57.5 mm) 6.5" (Sports): 2.32" (59 mm) |
| Weight | 0.57 kg (1.26 lbs) |
| LED load current at 14.4 V DC (max.) | 150 mA (selected sports models only) |
| Frequency response (+/- 3 dB) | 45 Hz-16 kHz |
| Sizes | 6.5″ |
| Color | Classic white, classic black, or Sports Grey |
| Water and dust rating | IP65 |
| Speaker type | Full range |
| Continuous power handling (RMS) | 20 W |
| Sensitivity (SPL at 1 W/1 m) | 88 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 15-60 per channel |
| LED lighting | Yes – RGB (selected sports models only) |
| LED supply voltage | 10.8-16 VDC (selected sports models only) |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Cone material | Polypropylene cone with cloth surround |
| Compass safe distance | 254 cm (100″) |
| Speaker connections | Spade connectors |
| LED connection | Terminals (selected sports models only) |
| Mounting diameter, clearance | 130 mm (5.12″) |
| Mounting depth, clearance | 43 mm (1.69″) |
| Front grille protrusion | 19 mm (0.75") |
📦 In the box
- 12 stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
🔧 Installation and compatibility
Check cutout dimensions, mounting depth, impedance, RMS power, and cable size. For external mounting, the location must match the product's water rating and must be able to drain correctly.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Fusion® EL Series Marine Speakers, 6.5" 80-watt Grey Marine Sports Speaker (pair) with RGB LED lighting. You are welcome to send photos and model numbers, and I will help with the assessment.
