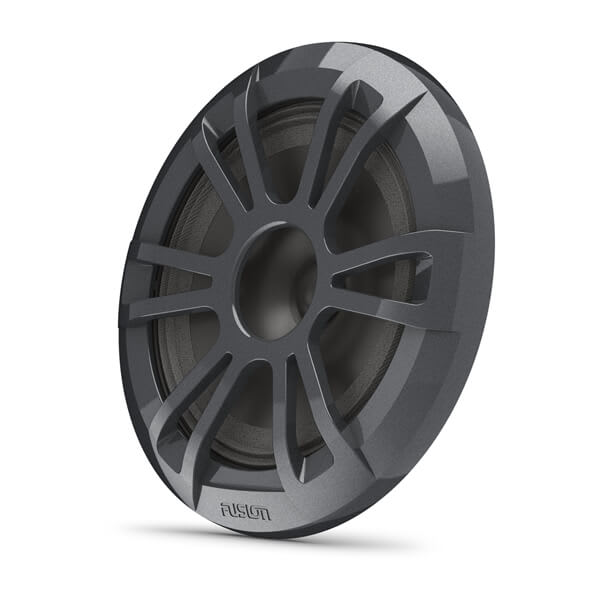

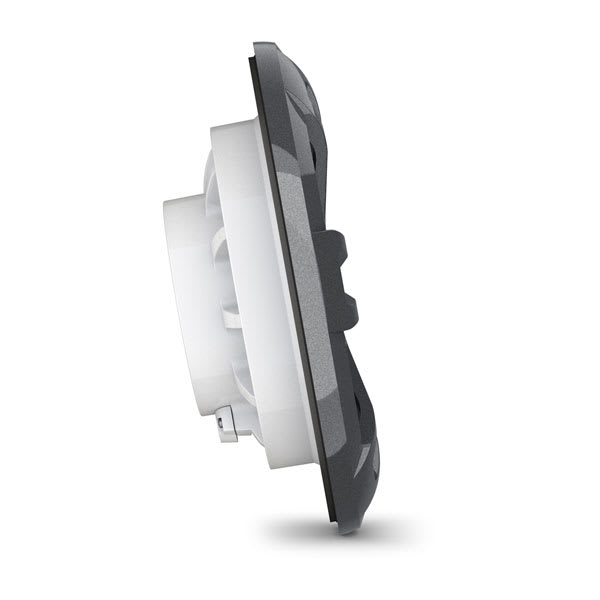

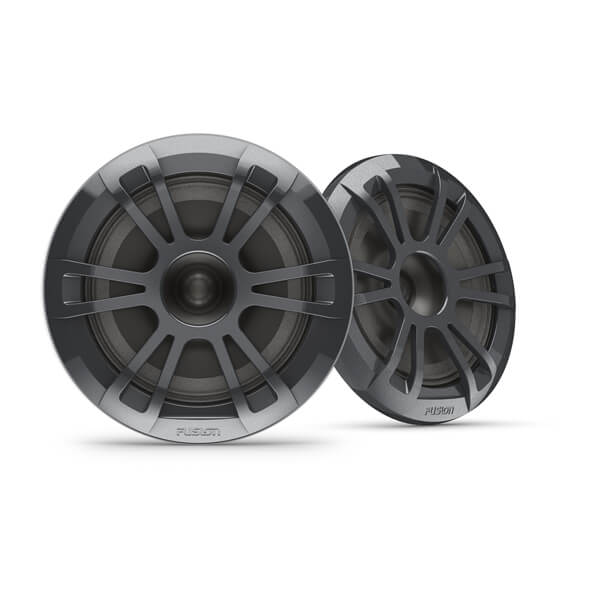

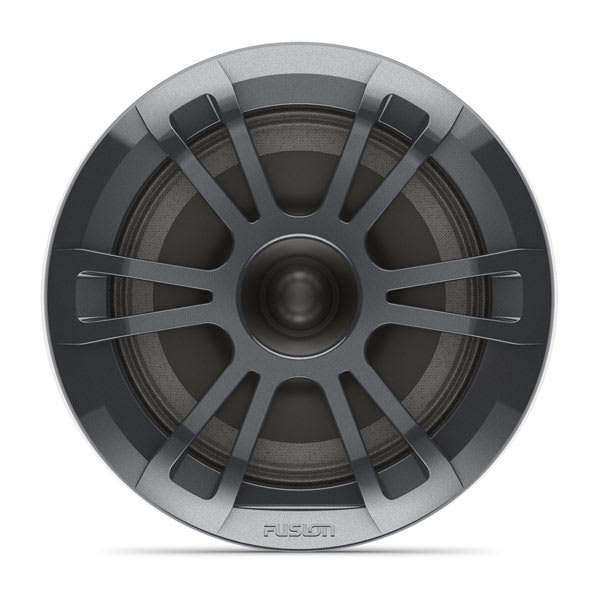

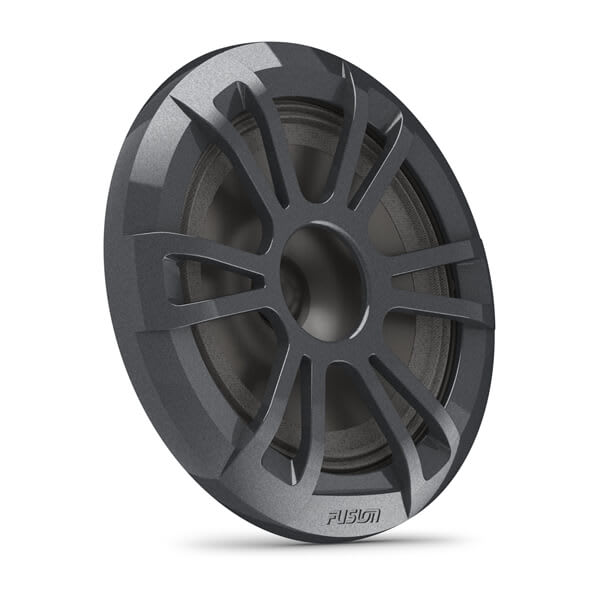

Fusion® EL Series marine speakers, 6.5" 80-watt marine speaker (pair) in Sports Grey
Item no. FUS-10161
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Fysiske mål (diameter): 6,5" (Classic): 6,93" x (176 mm) 6,5" (Sports): 6,93" (176 mm)
- Fysiske mål (dybde): 6,5" (Classic): 2,26" (57,5 mm) 6,5" (Sports): 2,32" (59 mm)
- Vægt: 0,57 kg (1,26 lbs)
What is included
- 12 monteringsstjerneskruer i rustfrit stål (4,2 mm x 25,4 mm (8 gauge x 1″))
Technical details
Your selected configuration: Standard
| Fysiske mål (diameter) | 6,5" (Classic): 6,93" x (176 mm) 6,5" (Sports): 6,93" (176 mm) |
|---|---|
| Fysiske mål (dybde) | 6,5" (Classic): 2,26" (57,5 mm) 6,5" (Sports): 2,32" (59 mm) |
| Vægt | 0,57 kg (1,26 lbs) |
| Monteringsdiameter, frirum | 130 mm (5,12″) |
| Monteringsdybde, frirum | 43 mm (1,69″) |
| LED belastningsstrøm ved 14,4 V DC (maks.) | 150 mA (kun udvalgte sportsmodeller) |
| Kontinuerlig effekthåndtering (RMS) | 20 W |
| Anbefalet forstærkereffekt (RMS) | 15-60 med kanal |
| LED-forsyningsspænding | 10,8-16 VDC (kun udvalgte sportsmodeller) |
| Produkt/model | Fusion® EL Series marinehøjttalere, 6,5" 80 watt marinehøjttaler (par) i Sports Grey |
| Producent | Fusion |
| Frekvensrespons (+/- 3 dB) | 45 Hz-16 kHz |
| Størrelser | 6,5″ |
| Farve | Klassisk hvid, klassisk sort eller Sports Grey |
| Vand- og støvklassifikation | IP65 |
| Højttalertype | Fuld rækkevidde |
| Følsomhed (SPL ved 1 W/1 m) | 88 dB |
| Nominel impedans | 4 Ω |
| LED-belysning | Ja – RGB (kun udvalgte sportsmodeller) |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | Polypropylenkegle med stof-surround |
| Sikkerhedsafstand for kompas | 254 cm (100″) |
| Højttalerforbindelser | Spadestik |
| LED-forbindelse | Endeforbindelser (kun udvalgte sportsmodeller) |
| Frontgitterfremspring | 19 mm (0,75") |
| Mærke | Fusion |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® EL Series marinehøjttalere, 6,5" 80 watt marinehøjttaler (par) i Sports Grey bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion® EL Series Marine Speakers, 6.5" 80 Watt Marine Speaker (Pair) in Sports Grey – designed for life on board
With Fusion® EL Series marine speakers, 6.5" 80 watt marine speaker (pair) in Sports Grey, you get marine speakers for a clearer and fuller onboard audio system. They are an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- 6.5" 80 watt marine speaker (pair) in Sports Grey
- Enjoy quality sound and multi-color RGB LED lighting to make your time on the water even better with the EL Series speakers from Fusion.
- Multi-color RGB LED lighting (LED sports model only) that improves your boating experience.
- Designed for marine installations where speakers are exposed to moisture, vibrations, and changing temperatures.
- Can be combined with compatible Fusion stereos, amplifiers, and zone control.
- Makes it possible to build a consistent audio solution in multiple areas of the boat.
⛵ Suitable for
- Cockpit, salon, cabin, or flybridge
- New audio installations and replacement of existing marine speakers
- Boat owners who want help with impedance, power, placement, and cable sizing
📊 Specifications
| Product/model | Fusion® EL Series marine speakers, 6.5" 80 watt marine speaker (pair) in Sports Grey |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter) | 6.5" (Classic): 6.93" (176 mm) 6.5" (Sports): 6.93" (176 mm) |
| Physical dimensions (depth) | 6.5" (Classic): 2.26" (57.5 mm) 6.5" (Sports): 2.32" (59 mm) |
| Weight | 0.57 kg (1.26 lbs) |
| LED load current at 14.4 V DC (max) | 150 mA (select sports models only) |
| Frequency response (+/- 3 dB) | 45 Hz-16 kHz |
| Sizes | 6.5″ |
| Color | Classic white, classic black, or Sports Grey |
| Water and dust rating | IP65 |
| Speaker type | Full range |
| Continuous power handling (RMS) | 20 W |
| Sensitivity (SPL at 1 W/1 m) | 88 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 15-60 W per channel |
| LED lighting | Yes – RGB (select sports models only) |
| LED supply voltage | 10.8-16 VDC (select sports models only) |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Cone material | Polypropylene cone with cloth surround |
| Compass safety distance | 254 cm (100″) |
| Speaker connections | Spade connectors |
| LED connection | Terminated connectors (select sports models only) |
| Mounting diameter, clearance | 130 mm (5.12″) |
| Mounting depth, clearance | 43 mm (1.69″) |
| Grille protrusion | 19 mm (0.75") |
📦 Package contents
- 12 stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
🔧 Installation and compatibility
Check cutout dimensions, mounting depth, impedance, RMS power, and cable sizing. For outdoor mounting, the location must match the product's water rating and allow for proper drainage.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Fusion® EL Series marine speakers, 6.5" 80 watt marine speaker (pair) in Sports Grey. You are welcome to send photos and model numbers, and I will help with the assessment.
