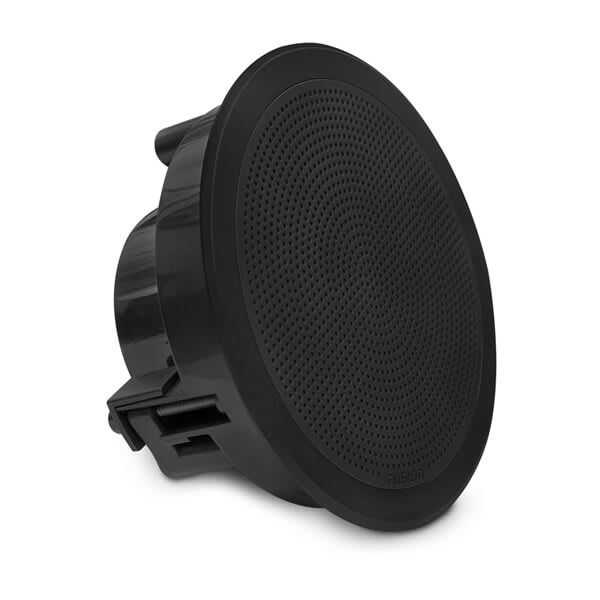

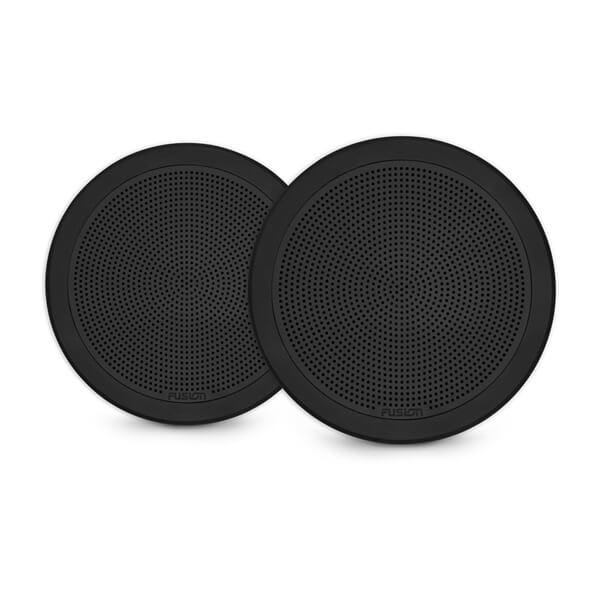

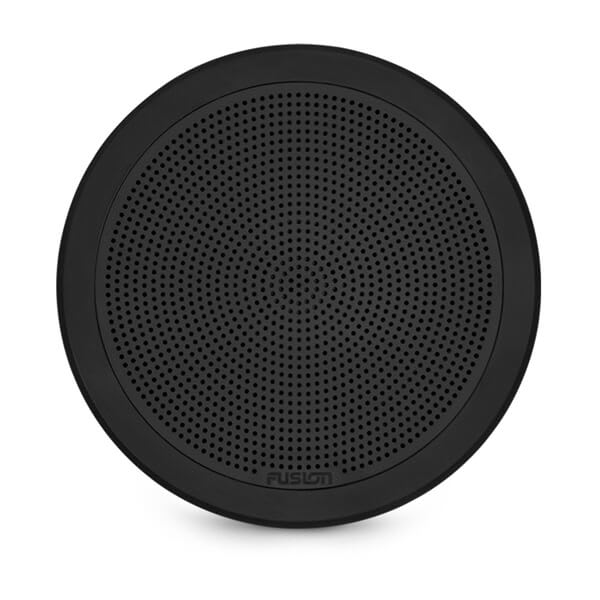

Fusion® FM Series marine speakers, 6.5" 120 W round, black, flush-mount marine speaker
Item no. FUS-10169
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Fysiske mål (diameter): 6,5":153 mm (6,02") 7,7": 181 mm (7,13")
- Fysiske mål (dybde): 6,5": 69,6 mm (2,74") 7,7": 82,9 mm (3,26")
- Vægt: 6,5" rund: 0,8 kg (1,76 lbs) 6,5" firkantet: 0,85 kg (1,87 lbs)7,7" rund: 1,2 kg (2,65 lbs) 7,7" firkantet: 1,3 kg (2,87 lbs)
Technical details
Your selected configuration: Standard
| Fysiske mål (diameter) | 6,5":153 mm (6,02") 7,7": 181 mm (7,13") |
|---|---|
| Fysiske mål (dybde) | 6,5": 69,6 mm (2,74") 7,7": 82,9 mm (3,26") |
| Vægt | 6,5" rund: 0,8 kg (1,76 lbs) 6,5" firkantet: 0,85 kg (1,87 lbs)7,7" rund: 1,2 kg (2,65 lbs) 7,7" firkantet: 1,3 kg (2,87 lbs) |
| Monteringsdiameter, frirum | 6,5": 138 mm (5,43") 7,7": 165 mm (6,5") |
| Monteringsdybde, frirum | 6,5": 70 mm (2,76") 7,7": 83 mm (3,27") |
| Kontinuerlig effekthåndtering (RMS) | 6,5": 30 W 7,7": 50 W |
| Effektangivelse | 120 W |
| Angivet effekt | 120 W |
| Produkt/model | Fusion® FM seriens marinehøjttalere, 6,5" 120 W rund, sort, planmonteret marinehøjttaler |
| Producent | Fusion |
| Frekvensrespons (+/- 3 dB) | 6,5": 100 Hz-18 kHz 7,7": 80 Hz-18 kHz |
| Størrelser | 6,5"/7,7" |
| Farve | Sort |
| Vand- og støvklassifikation | IP65 |
| Højttalertype | Koaksial |
| Følsomhed (SPL ved 1 W/1 m) | 6,5": 87 dB 7,7": 91 dB |
| Nominel impedans | 4 Ω |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | 6,5": Polypropylenkegle med gummikant 7,7": Polypropylenkegle med stof-surround |
| Diskanttype | Aluminiumskuppel |
| Sikkerhedsafstand for kompas | 6,5": 245 cm (96,5") 7,7": 290 cm (114,2") |
| Højttalerforbindelser | Spadestik |
| Frontgitterfremspring | 6,5": 3 mm (0,12")7,7": 3 mm (0,12") |
| Mærke | Fusion |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® FM seriens marinehøjttalere, 6,5" 120 W rund, sort, planmonteret marinehøjttaler bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion® FM Series Marine Speakers, 6.5" 120 W Round, Black, Flush-Mount Marine Speaker – Designed for Life on Board
With the Fusion® FM Series Marine Speakers, 6.5" 120 W Round, Black, Flush-Mount Marine Speaker, you get marine speakers for a clearer and fuller onboard audio system. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, ease of mounting, and practical onboard use.
⚡ Practical Benefits
- One pair of speakers (based on your selection)
- 6.5" 120 W round, black, flush-mount marine speaker
- The Fusion FM series speakers are designed to deliver quality acoustics for your boat and feature a slim and minimalist aesthetic that matches modern trends in boat design.
- Targeted at marine installations where speakers are exposed to moisture, vibrations, and varying temperatures.
- Can be combined with compatible Fusion stereos, amplifiers, and zone control.
- Makes it possible to build a consistent audio solution across several areas of the boat.
⛵ Suitable for
- Cockpit, saloon, cabin, or flybridge
- New audio installations and replacement of existing marine speakers
- Boat owners who want assistance with impedance, power, placement, and cable sizing
📊 Specifications
| Product/model | Fusion® FM Series Marine Speakers, 6.5" 120 W Round, Black, Flush-Mount Marine Speaker |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter) | 6.5": 153 mm (6.02") 7.7": 181 mm (7.13") |
| Physical dimensions (depth) | 6.5": 69.6 mm (2.74") 7.7": 82.9 mm (3.26") |
| Weight | 6.5" round: 0.8 kg (1.76 lbs) 6.5" square: 0.85 kg (1.87 lbs) 7.7" round: 1.2 kg (2.65 lbs) 7.7" square: 1.3 kg (2.87 lbs) |
| Frequency response (+/- 3 dB) | 6.5": 100 Hz-18 kHz 7.7": 80 Hz-18 kHz |
| Sizes | 6.5"/7.7" |
| Color | Round white or round black or square white or square black |
| Water and dust rating | IP65 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 30 W 7.7": 50 W |
| Sensitivity (SPL at 1 W/1 m) | 6.5": 87 dB 7.7": 91 dB |
| Nominal impedance | 4 Ω |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Cone material | 6.5": Polypropylene cone with rubber surround 7.7": Polypropylene cone with fabric surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 6.5": 245 cm (96.5") 7.7": 290 cm (114.2") |
| Speaker connections | Spade connectors |
| Mounting diameter, clearance | 6.5": 138 mm (5.43") 7.7": 165 mm (6.5") |
| Mounting depth, clearance | 6.5": 70 mm (2.76") 7.7": 83 mm (3.27") |
| Front grille protrusion | 6.5": 3 mm (0.12") 7.7": 3 mm (0.12") |
📦 Box contents
- Package contents may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check cutout dimensions, mounting depth, impedance, RMS power, and cable sizing. For outdoor mounting, the location must match the product's water resistance rating and be able to drain correctly.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Fusion® FM Series Marine Speakers, 6.5" 120 W Round, Black, Flush-Mount Marine Speaker. You are welcome to send photos and model numbers, and I will help with the assessment.
