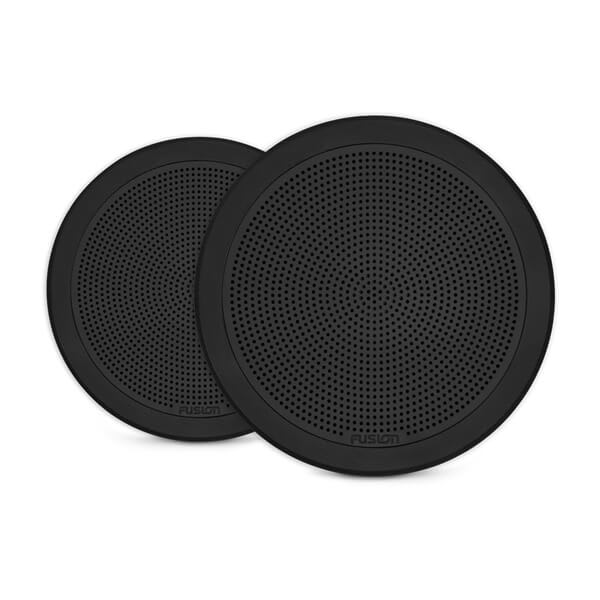

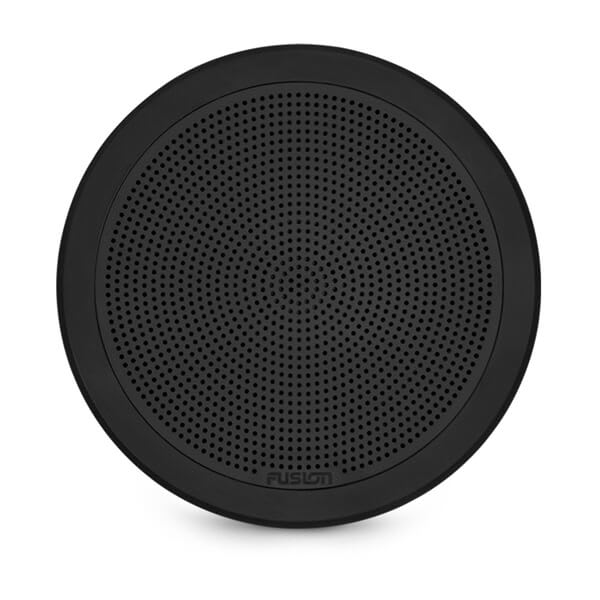

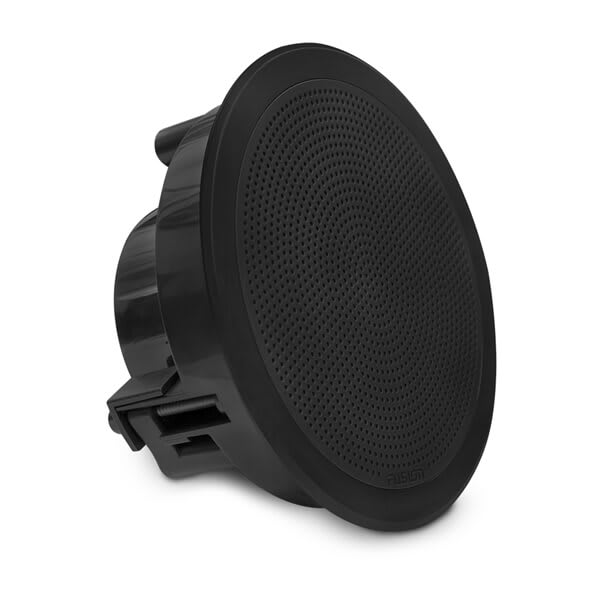

Fusion® FM Series marine speakers, 7.7" 200 W round, black, flush-mount marine speaker
Item no. FUS-10173
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Fysiske mål (diameter): 6,5":153 mm (6,02") 7,7": 181 mm (7,13")
- Fysiske mål (dybde): 6,5": 69,6 mm (2,74") 7,7": 82,9 mm (3,26")
- Vægt: 6,5" rund: 0,8 kg (1,76 lbs) 6,5" firkantet: 0,85 kg (1,87 lbs)7,7" rund: 1,2 kg (2,65 lbs) 7,7" firkantet: 1,3 kg (2,87 lbs)
Technical details
Your selected configuration: Standard
| Fysiske mål (diameter) | 6,5":153 mm (6,02") 7,7": 181 mm (7,13") |
|---|---|
| Fysiske mål (dybde) | 6,5": 69,6 mm (2,74") 7,7": 82,9 mm (3,26") |
| Vægt | 6,5" rund: 0,8 kg (1,76 lbs) 6,5" firkantet: 0,85 kg (1,87 lbs)7,7" rund: 1,2 kg (2,65 lbs) 7,7" firkantet: 1,3 kg (2,87 lbs) |
| Monteringsdiameter, frirum | 6,5": 138 mm (5,43") 7,7": 165 mm (6,5") |
| Monteringsdybde, frirum | 6,5": 70 mm (2,76") 7,7": 83 mm (3,27") |
| Kontinuerlig effekthåndtering (RMS) | 6,5": 30 W 7,7": 50 W |
| Effektangivelse | 200 W |
| Angivet effekt | 200 W |
| Produkt/model | Fusion® FM seriens marinehøjttalere, 7,7" 200 W rund, sort, planmonteret marinehøjttaler |
| Producent | Fusion |
| Frekvensrespons (+/- 3 dB) | 6,5": 100 Hz-18 kHz 7,7": 80 Hz-18 kHz |
| Størrelser | 6,5"/7,7" |
| Farve | Sort |
| Vand- og støvklassifikation | IP65 |
| Højttalertype | Koaksial |
| Følsomhed (SPL ved 1 W/1 m) | 6,5": 87 dB 7,7": 91 dB |
| Nominel impedans | 4 Ω |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | 6,5": Polypropylenkegle med gummikant 7,7": Polypropylenkegle med stof-surround |
| Diskanttype | Aluminiumskuppel |
| Sikkerhedsafstand for kompas | 6,5": 245 cm (96,5") 7,7": 290 cm (114,2") |
| Højttalerforbindelser | Spadestik |
| Frontgitterfremspring | 6,5": 3 mm (0,12")7,7": 3 mm (0,12") |
| Mærke | Fusion |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® FM seriens marinehøjttalere, 7,7" 200 W rund, sort, planmonteret marinehøjttaler bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion® FM Series Marine Speakers, 7.7" 200 W Round, Black, Flush-Mount Marine Speaker – Designed for life on board
With the Fusion® FM Series Marine Speakers, 7.7" 200 W Round, Black, Flush-Mount Marine Speaker, you get marine speakers for a clearer and fuller audio system on board. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical benefits
- One set of speakers (based on your selection)
- 7.7" 200 W round, black, flush-mount marine speaker
- The Fusion FM series speakers are designed to deliver quality acoustics for your boat and feature a slim and minimalist aesthetic that matches modern trends in boat design.
- Targeted at marine installations where speakers are exposed to moisture, vibrations, and changing temperatures.
- Can be combined with compatible Fusion stereos, amplifiers, and zone control.
- Makes it possible to build a uniform audio solution in multiple areas of the boat.
⛵ Suitable for
- Cockpit, salon, cabin, or flybridge
- New audio installations and replacement of existing marine speakers
- Boat owners who want help with impedance, power, placement, and cable dimensioning
📊 Specifications
| Product/model | Fusion® FM Series Marine Speakers, 7.7" 200 W Round, Black, Flush-Mount Marine Speaker |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter) | 6.5": 153 mm (6.02") 7.7": 181 mm (7.13") |
| Physical dimensions (depth) | 6.5": 69.6 mm (2.74") 7.7": 82.9 mm (3.26") |
| Weight | 6.5" round: 0.8 kg (1.76 lbs) 6.5" square: 0.85 kg (1.87 lbs) 7.7" round: 1.2 kg (2.65 lbs) 7.7" square: 1.3 kg (2.87 lbs) |
| Frequency response (+/- 3 dB) | 6.5": 100 Hz-18 kHz 7.7": 80 Hz-18 kHz |
| Sizes | 6.5"/7.7" |
| Color | Round white or round black or square white or square black |
| Water and dust rating | IP65 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 30 W 7.7": 50 W |
| Sensitivity (SPL at 1 W/1 m) | 6.5": 87 dB 7.7": 91 dB |
| Nominal impedance | 4 Ω |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Cone material | 6.5": Polypropylene cone with rubber surround 7.7": Polypropylene cone with fabric surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 6.5": 245 cm (96.5") 7.7": 290 cm (114.2") |
| Speaker connections | Spade connectors |
| Mounting diameter, clearance | 6.5": 138 mm (5.43") 7.7": 165 mm (6.5") |
| Mounting depth, clearance | 6.5": 70 mm (2.76") 7.7": 83 mm (3.27") |
| Front grille protrusion | 6.5": 3 mm (0.12") 7.7": 3 mm (0.12") |
📦 In the box
- Scope of delivery may vary between models and variants. Please check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check cut-out dimensions, mounting depth, impedance, RMS power, and cable dimension. For external mounting, the location must match the product's water rating and allow for proper drainage.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Fusion® FM Series Marine Speakers, 7.7" 200 W Round, Black, Flush-Mount Marine Speaker. You are welcome to send photos and model numbers, and I will help with the assessment.
