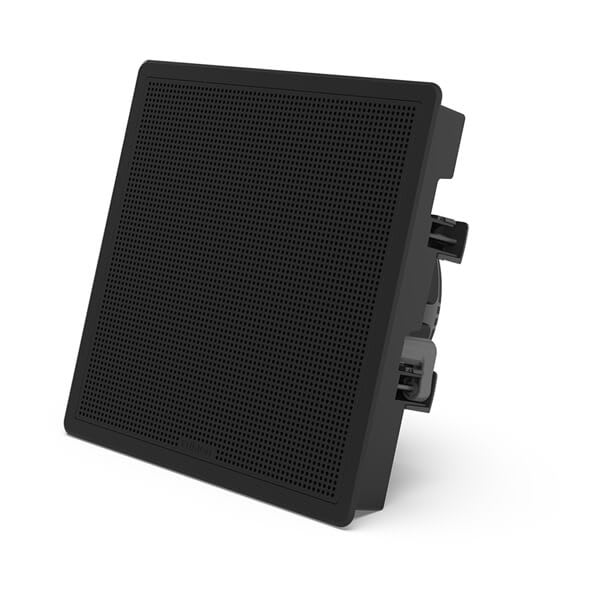

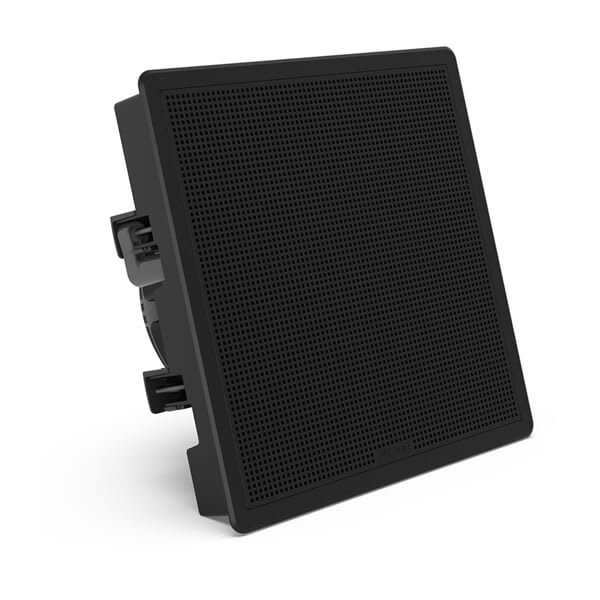

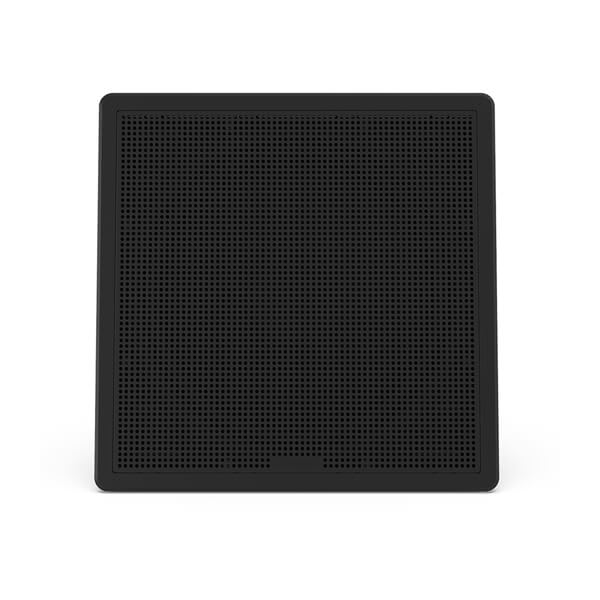

Fusion® FM Series marine subwoofers, 10" 400 W square, black, flush-mount marine subwoofer

Item no. FUS-10175

Fusion® FM Series marine subwoofers, 10" 400 W square, black, flush-mount marine subwoofer

Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.

  • Til lydgengivelse som del af et kompatibelt lydsystem.
  • Fysiske mål (diameter): 11,18 mm (284")
  • Fysiske mål (dybde): 139,5 mm (5,49")
  • Vægt: 10" runde: 3 kg (6,61 lbs) 10" firkantet hvid: 2,95 kg (6,5 lbs)10" firkantet sort: 3,1 kg (6,83 lbs)
Your selected configuration

Standard

Price each
1.749,00 DKK

Includes VAT. Shipping calculated at checkout.

View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

Technical details

Your selected configuration: Standard

Fysiske mål (diameter)11,18 mm (284")
Fysiske mål (dybde)139,5 mm (5,49")
Vægt10" runde: 3 kg (6,61 lbs) 10" firkantet hvid: 2,95 kg (6,5 lbs)10" firkantet sort: 3,1 kg (6,83 lbs)
Monteringsdiameter, frirum269 mm (10,59")
Monteringsdybde, frirum140 mm (5,51")
Kontinuerlig effekthåndtering (RMS)120 W
Effektangivelse400 W
Angivet effekt400 W
Produkt/modelFusion® FM seriens marinesubwoofere, 10" 400 W firkantet, sort, planmonteret marinesubwoofer
ProducentFusion
Frekvensrespons (+/- 3 dB)30 Hz-2 kHz
Størrelser10"
FarveSort
Vand- og støvklassifikationIP65
HøjttalertypeSubwoofer
Følsomhed (SPL ved 1 W/1 m)87 dB
Nominel impedans4 Ω
Driftstemperatur0° til 50° C (32° til 122° F)
Kegle materialePolypropylenkegle med gummikant
Sikkerhedsafstand for kompas381 cm (150")
HøjttalerforbindelserSpadestik
Frontgitterfremspring3 mm (0,12")
MærkeFusion
KapslingsklasseIP65
Installation and choosing accessories

Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.

Installation og kompatibilitet

Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt, anbefalet forstærkereffekt og kabeldimension. Ved udvendig montering skal vandklassifikation, tætning og afvanding passe til placeringen.

💡 Mit råd før bestilling

Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® FM seriens marinesubwoofere, 10" 400 W firkantet, sort, planmonteret marinesubwoofer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.

Full product description

Fusion® FM Series Marine Subwoofers, 10" 400 W Square, Black, Flush-Mount Marine Subwoofer – developed for life on board

With the Fusion® FM Series Marine Subwoofers, 10" 400 W Square, Black, Flush-Mount Marine Subwoofer, you get a marine subwoofer for fuller sound and deeper, more controlled bass reproduction in your boat's audio system. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to manage compatibility, mounting, and practical use on board.

⚡ Practical benefits

  • 10" 400 W square, black, flush-mount marine subwoofer
  • Fusion FM Series subwoofers are designed to enhance your experience on the water with quality sound in a sleek and minimalist aesthetic.
  • Innovative flush-mount design provides a sleek and minimalist finish.
  • Developed for marine use, where moisture, vibrations, and mounting conditions place higher demands on equipment.
  • Can be combined with compatible Fusion and Garmin components, allowing speakers, amplifier, and controls to be planned as a single solution.
  • Allows you to scale the bass section according to the boat's size, listening area, and the amplifier that will drive the subwoofer.

⛵ Suitable for

  • Cockpit, salon, or flybridge, where the audio experience requires more depth and fullness
  • New audio installations and upgrades of compatible Fusion equipment
  • Boat owners who want assistance with power, impedance, cable sizing, and placement

📊 Specifications

Product/model Fusion® FM Series Marine Subwoofers, 10" 400 W Square, Black, Flush-Mount Marine Subwoofer
Manufacturer Fusion
Physical dimensions (diameter) 284 mm (11.18")
Physical dimensions (depth) 139.5 mm (5.49")
Weight 10" round: 3 kg (6.61 lbs) 10" square white: 2.95 kg (6.5 lbs) 10" square black: 3.1 kg (6.83 lbs)
Frequency response (+/- 3 dB) 30 Hz-2 kHz
Sizes 10"
Color Round white or round black or square white or square black
Water and dust classification IP65
Speaker type Subwoofer
Continuous power handling (RMS) 120 W
Sensitivity (SPL at 1 W/1 m) 87 dB
Nominal impedance 4 Ω
Operating temperature 0° to 50° C (32° to 122° F)
Cone material Polypropylene cone with rubber surround
Compass safe distance 381 cm (150")
Speaker connections Spade connector
Mounting diameter, clearance 269 mm (10.59")
Mounting depth, clearance 140 mm (5.51")
Front grille protrusion 3 mm (0.12")

📦 Package contents

  • Scope of delivery may vary between models and variants. Check the official documentation for the specific variant before ordering.

🔧 Installation and compatibility

Check cutout dimensions, mounting depth, impedance, RMS power, recommended amplifier power, and cable size. For outdoor mounting, water classification, sealing, and drainage must be appropriate for the location.

📄 Manuals and documentation

💡 My advice before ordering

I recommend that model, power, connectors, and mounting conditions are verified before ordering the Fusion® FM Series Marine Subwoofers, 10" 400 W Square, Black, Flush-Mount Marine Subwoofer. You are welcome to send photos and model numbers, and I will help with the assessment.
