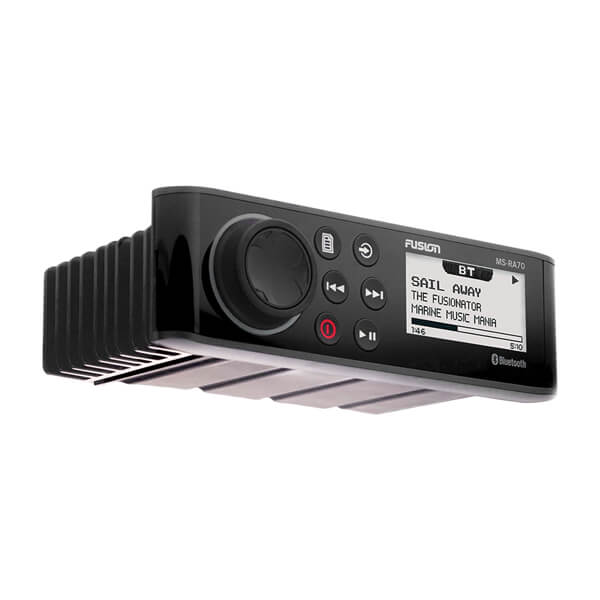

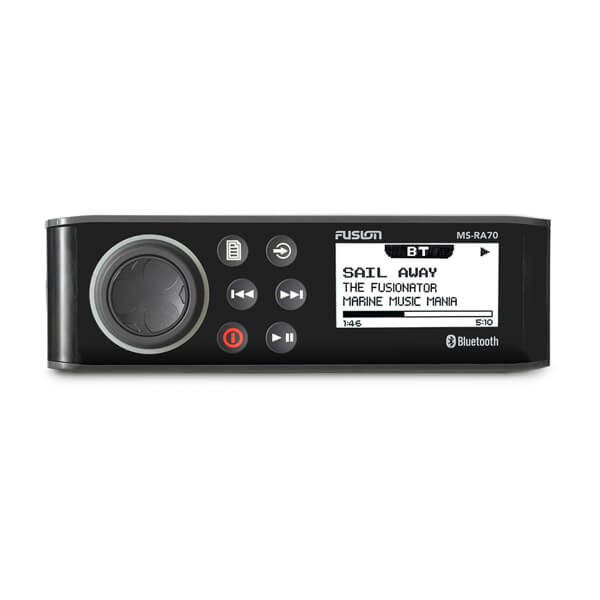

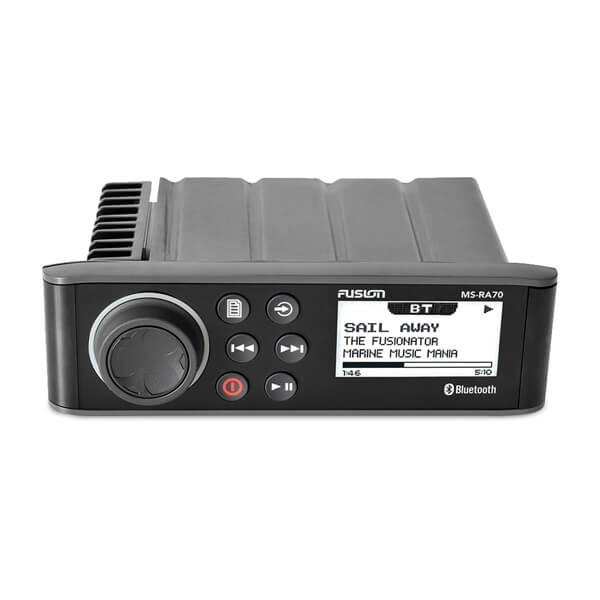

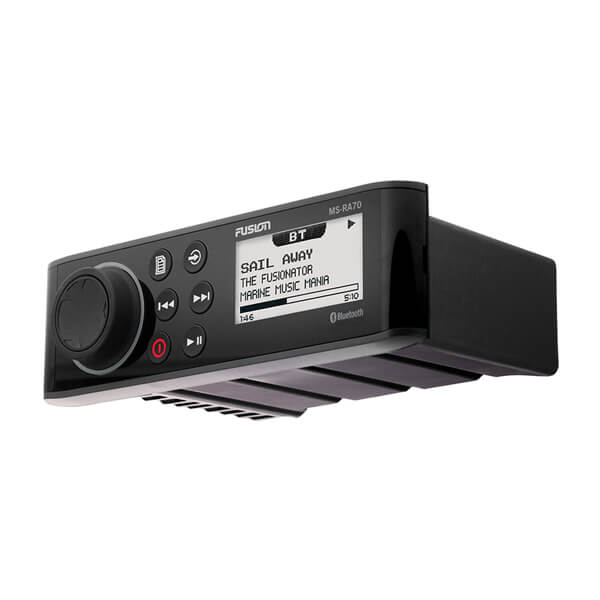

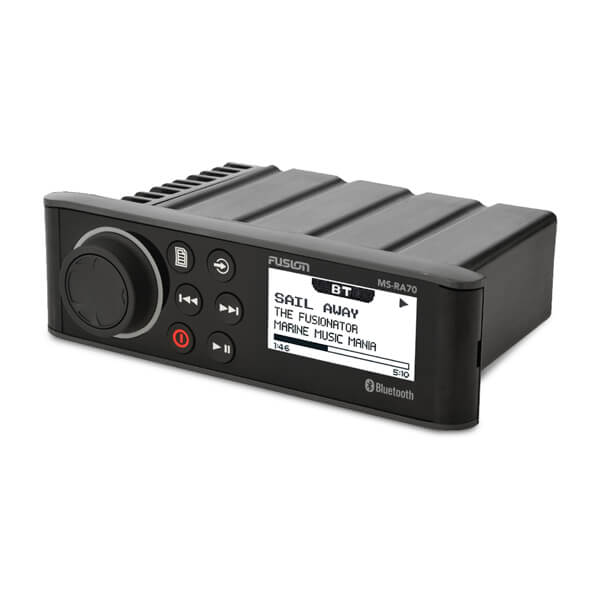

Fusion® RA70 Series marine stereo, MS-RA70 marine stereo with Bluetooth®
Item no. FUS-10202
Gør det nemt at vælge lydkilden og sætte stemningen om bord.
- Samler afspilning og betjening af de lydkilder, modellen understøtter.
- Vægt: 1.23 lbs (556 g)
- Strøm (maks.): 15 A
- Strømforsyning: 10.8 - 16 VDC
What is included
- Ledningsnet til AUX-indgang, linjeudgang og subwooferudgang
- MS-RA70N indeholder også et til-meter NMEA 2000® dropkabel
Technical details
Your selected configuration: Standard
| Vægt | 1.23 lbs (556 g) |
|---|---|
| Strøm (maks.) | 15 A |
| Strømforsyning | 10.8 - 16 VDC |
| Nominel udgangseffekt (4 ohm) | 26 watt RMS x 4 ved 14,4 V indgang < 10% THD |
| Maks. effekt | 200 W |
| Produkt/model | Fusion® RA70 seriens marinestereoanlæg, MS-RA70 marinestereoanlæg med Bluetooth® |
| Producent | Fusion |
| Fysisk størrelse (BxHxD) | 7.4" x 2.36" x 4.87" (188 x 60 x 123.5 mm) |
| Vandtæthedsklasse | IPX7 (kun frontpanelet, når det er korrekt installeret) |
| Skærm | 2,6″ optisk forbundet monokrom LCD |
| Trådløse frekvenser/protokoller | Bluetooth®: 2,4 GHz @ +1.9 dBm nomineltANT®: 2,4 GHz @ +1.9 dBm nominelt |
| NMEA 2000® porte | 1 (MS-RA70N and MS-RA70NSX only) |
| Trådløs Bluetooth® rækkevidde | Op til 10 meter (30 ft) |
| USB 2.0-porte | 1 |
| SiriusXM porte | 1 (MS-RA70NSX only) |
| Antenneporte | 1 |
| Driftstemperatur | 32° til 122° F (0° til 50° C) |
| Brugerflade med flere sprog | Hollandsk, engelsk, fransk, tysk, italiensk, spansk |
| Forstærker | Klasse AB (4 ohm) |
| Sikkerhedsafstand for kompas | 5.9" (150 mm) |
| Multi-Zone™ teknologi | 2 zoner |
| Softwareopdateringer | USB |
| Ekstra indgange (RCA) | 1 |
| Højttalerforbindelser | 4 (2-zone forstærket) |
| RCA pre-out (venstre, højre og subwoofer) | 2 zoner (kræver ekstern forstærkning) |
| Line-out | 2 (1 x V + H pr. zone, kræver ekstern forstærkning) |
| Subwooferudgang | Zone (kræver ekstern forstærkning) |
| Trådløs ANT® rækkevidde | Op til 3 meter (10 ft) |
| Forbindelser | Bluetooth |
| Mærke | Fusion |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Kontrollér spænding, tilslutninger, kompatible fjernbetjeninger og monteringsmål.
Installation og kompatibilitet
Kontrollér monteringsmål, strømforsyning, sikring, højttalerbelastning, zoner og eventuelle netværksforbindelser. Afklar også om eksisterende fjernbetjeninger og andet Fusion-udstyr er kompatibelt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® RA70 seriens marinestereoanlæg, MS-RA70 marinestereoanlæg med Bluetooth® bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Fusion® RA70 Series Marine Stereo, MS-RA70 Marine Stereo with Bluetooth® – developed for life on board
With the Fusion® RA70 Series Marine Stereo, MS-RA70 Marine Stereo with Bluetooth®, you get a marine stereo for music, zone control, and operation of the onboard audio system. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- DIN mounting plate
- MS-RA70 marine stereo with Bluetooth®
- Supports NMEA 2000 connectivity for wired Fusion-Link™ integration with compatible multi-function displays (MFDs) and wired remote controls in the NRX series.
- Consolidates control of the boat's audio system in one place and can be used as a hub for multiple audio zones depending on the model.
- Developed for life on board, where moisture, vibrations, and installation in limited space must be considered.
- Can be combined with compatible Fusion speakers, subwoofers, amplifiers, and remote controls.
⛵ Suitable for
- Saloon, cockpit, and flybridge, where music must be easily controllable
- New Fusion installations and upgrades of older stereo systems
- Boat owners who want help with zones, NMEA/networks, amplifiers, and speakers
📊 Specifications
| Product/model | Fusion® RA70 Series Marine Stereo, MS-RA70 Marine Stereo with Bluetooth® |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (WxHxD) | 7.4" x 2.36" x 4.87" (188 x 60 x 123.5 mm) |
| Weight | 1.23 lbs (556 g) |
| Water rating | IPX7 (front panel only, when properly installed) |
| Display | 2.6″ optically bonded monochrome LCD |
| Current (max) | 15 A |
| Power supply | 10.8 - 16 VDC |
| Rated power output (4 ohm) | 26 watts RMS x 4 at 14.4 V input < 10% THD |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +1.9 dBm nominal, ANT®: 2.4 GHz @ +1.9 dBm nominal |
| NMEA 2000® ports | 1 (MS-RA70N and MS-RA70NSX only) |
| Wireless Bluetooth® range | Up to 10 meters (30 ft) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 (MS-RA70NSX only) |
| Antenna ports | 1 |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Multi-language interface | Dutch, English, French, German, Italian, Spanish |
| Amplifier | Class AB (4 ohm) |
| Compass safe distance | 5.9" (150 mm) |
| Max power | 200 W |
| Multi-Zone™ technology | 2 zones |
| Software updates | USB |
| Auxiliary inputs (RCA) | 1 |
| Speaker connections | 4 (2-zone amplified) |
| RCA pre-out (left, right, and subwoofer) | 2 zones (requires external amplification) |
| Line-out | 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer output | Zone (requires external amplification) |
| Wireless ANT® range | Up to 3 meters (10 ft) |
📦 In the box
- Wiring harness for AUX input, line out, and subwoofer out
- MS-RA70N also includes a two-meter NMEA 2000® drop cable
🔧 Installation and compatibility
Check mounting dimensions, power supply, fuse, speaker load, zones, and any network connections. Also, clarify whether existing remote controls and other Fusion equipment are compatible.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Fusion® RA70 Series Marine Stereo, MS-RA70 Marine Stereo with Bluetooth®. You are welcome to send photos and model numbers, and I will help with the assessment.
