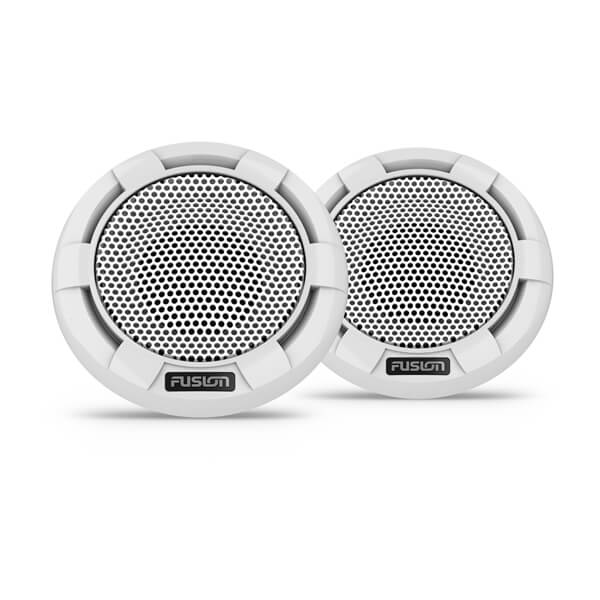

Fusion® Signature Series 3i Component Tweeters, White

Item no. FUS-10224

Fusion® Signature Series 3i Component Tweeters, White

Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.

  • Til lydgengivelse som del af et kompatibelt lydsystem.
  • Fysiske mål (diameter x dybde): 2,91″ x 1,64″ (74 x 41,6 mm)
  • Maks. effekt (watt): 330 W
  • RMS-effekt (watt): 60 W
Your selected configuration

Standard

Price each
879,00 DKK

Includes VAT. Shipping calculated at checkout.

Delivery time confirmed after ordering
View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

See what is included and what the installation requires

What is included

  • 6 Phillips monteringsskruer i rustfrit stål (3,5 mm x 25,4 mm/6 måler x 1″))
  • 2 vandtæt kabelsamling med 2-benet stik (5,9″ (150 mm))
Technical details

Your selected configuration: Standard

Fysiske mål (diameter x dybde)2,91″ x 1,64″ (74 x 41,6 mm)
Diameter på svingspole1″
Monteringsdiameter, frirum2,01″ (51 mm)
Monteringsdybde, frirum1,22″ (31 mm)
Maks. effekt (watt)330 W
RMS-effekt (watt)60 W
Anbefalet forstærkereffekt (RMS)25-140 W/kanal
Produkt/modelFusion® Signature Series 3i Komponentdiskanthøjttalere, Hvid
ProducentFusion
Vand- og støvklassifikationIP65
Diskanthøjttalerens størrelse1″
Følsomhed (1 W / 1 m)91 dB
Nominel impedans4 ohm
Driftstemperatur0° til 50° C (32° til 122° F)
MaterialeAluminiumskuppel
Tilslutning af diskantenhedLøse ledninger med vandtæt 2-vejs stik, 5,9″ (150 mm)
Sikkerhedsafstand for kompas43,3″ (110 cm)
ModelserieSignature
MærkeFusion
KapslingsklasseIP65
FarveHvid
Installation and choosing accessories

Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.

Installation og kompatibilitet

Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.

💡 Mit råd før bestilling

Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Fusion® Signature Series 3i Komponentdiskanthøjttalere, Hvid bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.

Full product description

Fusion® Signature Series 3i Component Tweeters, White – designed for life on board

With the Fusion® Signature Series 3i Component Tweeters, White, you get marine speakers for a clearer and richer onboard audio system. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.

⚡ Practical benefits

  • A pair of component tweeters
  • Helps keep your spirits up on longer trips.
  • Should be selected according to the boat's steering, weight, and existing installation.
  • Designed for marine installations where speakers are exposed to moisture, vibrations, and changing temperatures.
  • Can be combined with compatible Fusion stereos, amplifiers, and zone control.
  • Makes it possible to build a consistent audio solution in multiple areas of the boat.

⛵ Suitable for

  • Cockpit, salon, cabin, or flybridge
  • New audio installations and replacement of existing marine speakers
  • Boat owners who want help with impedance, power, placement, and cable dimensioning

📊 Specifications

Product/model Fusion® Signature Series 3i Component Tweeters, White
Manufacturer Fusion
Physical dimensions (diameter x depth) 2.91″ x 1.64″ (74 x 41.6 mm)
Water and dust rating IP65
Tweeter size 1″
Peak power (watts) 330 W
RMS power (watts) 60 W
Sensitivity (1 W / 1 m) 91 dB
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 25-140 W/channel
Operating temperature 0° to 50° C (32° to 122° F)
Voice coil diameter 1″
Material Aluminum dome
Tweeter connection Loose wires with waterproof 2-way connector, 5.9″ (150 mm)
Compass safe distance 43.3″ (110 cm)
Mounting diameter, clearance 2.01″ (51 mm)
Mounting depth, clearance 1.22″ (31 mm)

📦 In the box

  • 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm / 6 gauge x 1″)
  • 2 waterproof cable assemblies with 2-pin connector (5.9″ (150 mm))

🔧 Installation and compatibility

Check cutout dimensions, mounting depth, impedance, RMS power, and cable dimension. For external mounting, the location must match the product's water rating and allow for proper drainage.

📄 Manuals and documentation

💡 My advice before ordering

I recommend that model, power, connectors, and mounting conditions are checked before ordering the Fusion® Signature Series 3i Component Tweeters, White. You are welcome to send photos and model numbers, and I will help with the assessment.
