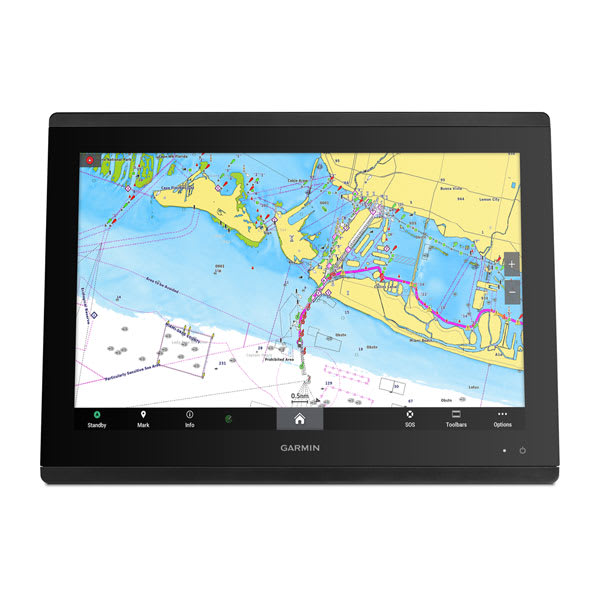

Garmin GPSMAP® 8417 MFD
Item no. GAR-10435
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 5,21 kg
- Strømforsyning: 10-35 Vdc
- Typisk strømforbrug ved 12 V DC: 2.8 A
Technical details
| Vægt | 5,21 kg |
|---|---|
| Strømforsyning | 10-35 Vdc |
| Typisk strømforbrug ved 12 V DC | 2.8 A |
| Maksimalt strømforbrug ved 12 V DC | 3.5 A |
| Maksimalt strømforbrug ved 10 V DC | 40W |
| Produkt/model | Garmin GPSMAP® 8417 MFD |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 419 x 307 x 71 mm |
| Vandtæthedsklasse | IPX7 |
| Displaytype | Touchscreen IPS-display (antirefleks-finish) |
| Displaystørrelse, BxH | 366 x 231 mm17,0" diagonal (432 mm) |
| Displayopløsning, BxH | 1920 x 1200 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Ja (med ekstern black box) |
| ClearVü | Ja (med GCV™ black box, sælges separat) |
| SideVü | Ja (mit kompatiblem Blackbox-Echolot) |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 4 |
| NMEA 0183 udgangsporte (Tx) | 2 |
| Garmin Marine Network porte | 4 |
| Accepterer datakort | 2 SD-kort (med Garmin SD-kortlæsertilbehør) |
| Waypoints | 5.000 |
| Ruter | 100 (250 waypoints hver) |
| Receiver | 10 Hz højfølsom |
| Kompatibel med ActiveCaptain | Ja |
| Videoindgangsporte | 1 - BNC komposit1 - HDMI (HDCP-kompatibelt) |
| Video output ports | 1 HDMI |
| J1939 porte | 1 |
| Monteringsmuligheder | Planmonteret eller forsænket |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Ekstra | Yderligere tilknytninger:NMEA 2000-port: 1USB-port: 1J1939-port: 1HDMI- og kompositvideoindgange kodes og deles på tværs af Garmin marinenetværket til andre kompatible plottere. |
| Modelserie | GPSMAP |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 8417 MFD bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 8417 MFD – developed for life on board
With the Garmin GPSMAP® 8417 MFD, you get a chartplotter or navigation component to consolidate maps, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to be in control of compatibility, mounting, and practical use on board.
⚡ Advantages in practice
- From ANT® technology to Wi-Fi® networks, there are countless ways to connect to your system.
- With SmartMode™ station control buttons, everything is designed to give you quick access to the information you need with a single touch.
- This display, available in 10″, 12″, and 16″, provides wider viewing angles, premium image clarity, and readability in sunlight, even with polarized sunglasses.
- Provides a unified overview of navigation and compatible data from the rest of the boat's electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where screens, networks, and sensors work together.
⛵ Suitable for
- Motorboats and sailboats where navigation must be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want help with maps, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 8417 MFD |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 419 x 307 x 71 mm |
| Weight | 5.21 kg |
| Water rating | IPX7 |
| Display type | Touchscreen IPS display (anti-glare finish) |
| Display size, WxH | 366 x 231 mm 17.0" diagonal (432 mm) |
| Display resolution, WxH | 1920 x 1200 pixels |
| Power supply | 10-35 Vdc |
| Typical current draw at 12 V DC | 2.8 A |
| Max current draw at 12 V DC | 3.5 A |
| Max power consumption at 10 V DC | 40W |
| Traditional sonar (dual frequency/beam) | Yes (with external black box) |
| ClearVü | Yes (with GCV™ black box, sold separately) |
| SideVü | Yes (with compatible black box sonar) |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 4 |
| NMEA 0183 output ports (Tx) | 2 |
| Garmin Marine Network™ ports | 4 |
| Supports data cards | 2 SD cards (with Garmin SD card reader accessory) |
| Waypoints | 5,000 |
| Routes | 100 (250 waypoints each) |
| Receiver | 10 Hz high-sensitivity |
| ActiveCaptain compatible | Yes |
| Video input ports | 1 - BNC composite1 - HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Mounting options | Flat or flush mount |
| Track log | 50,000 points |
| Tracks | 50 saved tracks |
| Additional | Additional connections:NMEA 2000 port: 1USB port: 1J1939 port: 1HDMI and composite video inputs are encoded and shared across the Garmin Marine Network to other compatible plotters. |
📦 In the box
- The scope of delivery may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, map type, and the required network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking model, power, connectors, and mounting conditions before ordering the Garmin GPSMAP® 8417 MFD. You are welcome to send photos and model numbers, and I will help with the assessment.
