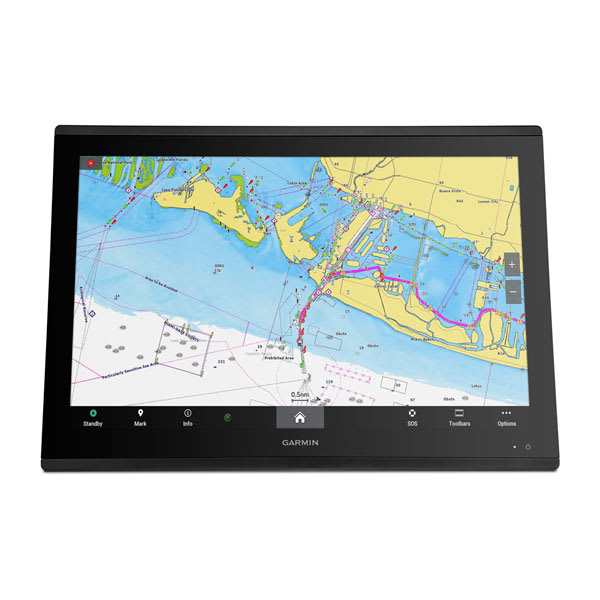

Garmin GPSMAP® 8424 MFD
Item no. GAR-10437
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 8,60 kg
- Strømforsyning: 10-35 Vdc
- Typisk strømforbrug ved 12 V DC: 6.1A
Technical details
| Vægt | 8,60 kg |
|---|---|
| Strømforsyning | 10-35 Vdc |
| Typisk strømforbrug ved 12 V DC | 6.1A |
| Maksimalt strømforbrug ved 12 V DC | 7.6A |
| Maksimalt strømforbrug ved 10 V DC | 87W |
| Produkt/model | Garmin GPSMAP® 8424 MFD |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 600 x 410 x 71 mm |
| Vandtæthedsklasse | IPX7 |
| Displaytype | Touchscreen IPS-display (antirefleks-finish) |
| Displaystørrelse, BxH | 518 x 325 mm24,0" (610 mm) diagonal |
| Displayopløsning, BxH | 1920 x 1200 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Ja (med ekstern black box) |
| ClearVü | Ja (med GCV™ black box, sælges separat) |
| SideVü | Ja (med GCV™ black box, sælges separat) |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 4 |
| NMEA 0183 udgangsporte (Tx) | 2 |
| Garmin Marine Network porte | 4 |
| Accepterer datakort | 2 SD-kort (med Garmin SD-kortlæsertilbehør) |
| Waypoints | 5.000 |
| Ruter | 100 (250 waypoints hver) |
| Receiver | 10 Hz højfølsom |
| Kompatibel med ActiveCaptain | Ja |
| Videoindgangsporte | 1 - BNC komposit1 - HDMI (HDCP-kompatibelt) |
| Video output ports | 1 HDMI |
| J1939 porte | 1 |
| Monteringsmuligheder | Planmonteret eller forsænket |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Ekstra | Yderligere tilknytninger:NMEA 2000-port: 1USB-port: 1J1939-port: 1HDMI- og kompositvideoindgange kodes og deles på tværs af Garmin marinenetværket til andre kompatible plottere. |
| Modelserie | GPSMAP |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 8424 MFD bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 8424 MFD – designed for life on board
With the Garmin GPSMAP® 8424 MFD, you get a chartplotter or navigation component to consolidate maps, positioning, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- From ANT® technology to Wi-Fi® networks, there are countless ways to connect to your system.
- With SmartMode™ station control buttons, everything is designed to give you quick, one-touch access to the information you need.
- This display, available in 10″, 12″, and 16″, provides wider viewing angles, premium image clarity, and sunlight readability, even with polarized sunglasses.
- Provides a unified overview of navigation and compatible data from the rest of the boat's electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where the display, network, and sensors work together.
⛵ Suitable for
- Powerboats and sailboats where navigation must be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with maps, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 8424 MFD |
|---|---|
| Manufacturer | Garmin |
| Physical size (WxHxD) | 600 x 410 x 71 mm |
| Weight | 8.60 kg |
| Water rating | IPX7 |
| Display type | Touchscreen IPS display (anti-glare finish) |
| Display size, WxH | 518 x 325 mm 24.0" (610 mm) diagonal |
| Display resolution, WxH | 1920 x 1200 pixels |
| Power input | 10-35 Vdc |
| Typical current draw at 12 V DC | 6.1A |
| Maximum current draw at 12 V DC | 7.6A |
| Maximum power usage at 10 V DC | 87W |
| Traditional sonar (dual frequency/beam) | Yes (with external black box) |
| ClearVü | Yes (with GCV™ black box, sold separately) |
| SideVü | Yes (with GCV™ black box, sold separately) |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 4 |
| NMEA 0183 output ports (Tx) | 2 |
| Garmin Marine Network™ ports | 4 |
| Accepts data cards | 2 SD cards (with Garmin SD card reader accessory) |
| Waypoints | 5,000 |
| Routes | 100 (250 waypoints each) |
| Receiver | 10 Hz high-sensitivity |
| Compatible with ActiveCaptain | Yes |
| Video input ports | 1 - BNC composite 1 - HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Mounting options | Flush or flat mount |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Additional | Additional connections: NMEA 2000 port: 1 USB port: 1 J1939 port: 1 HDMI and composite video inputs are encoded and shared across the Garmin Marine Network to other compatible chartplotters. |
📦 Box contents
- Package contents may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Verify physical dimensions, mounting depth, power supply, fuses, map type, and desired network connections. Sort out transducers, radar, AIS, and other sensors before planning cable runs and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend verifying the model, power, connectors, and mounting conditions before ordering the Garmin GPSMAP® 8424 MFD. You are welcome to send photos and model numbers, and I will be happy to help with the assessment.
