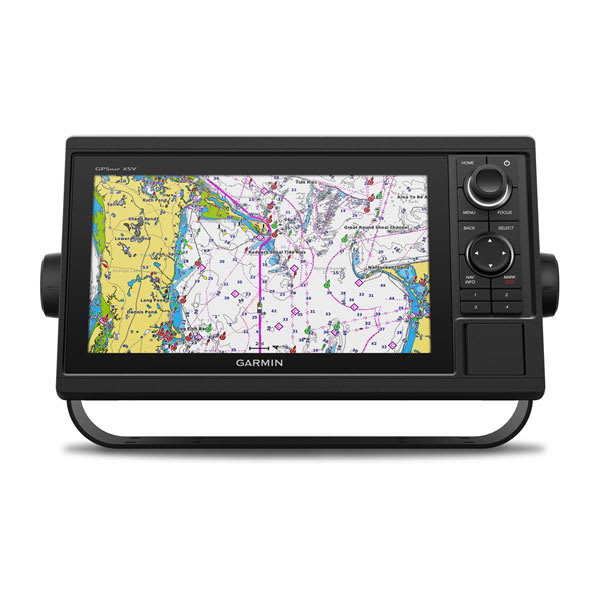

Garmin GPSMAP® 1022xsv
Item no. GAR-10253
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 1,85 kg
- Strømforsyning: 10 til 32 Vdc
- Typisk strømforbrug ved 12 V DC: 1.9A
Technical details
| Vægt | 1,85 kg |
|---|---|
| Strømforsyning | 10 til 32 Vdc |
| Typisk strømforbrug ved 12 V DC | 1.9A |
| Maksimalt strømforbrug ved 12 V DC | 2.7A |
| Maksimalt strømforbrug ved 10 V DC | 32.4 W |
| Udgangseffekt | 1 kW |
| Spænding | 12 V |
| Produkt/model | Garmin GPSMAP® 1022xsv |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 318 x 185 x 69 cm |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WSVGA-skærm |
| Displaystørrelse, BxH | 22,4 x 12,5 cm10,1" (25,7 cm) diagonal |
| Displayopløsning, BxH | 1024 x 600 pixel |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Indbygget (1-kanals CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Ja, med chirp (indbygget) |
| SideVü | Ja, med chirp (indbygget) |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 1 |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Garmin Marine Network porte | 2 |
| Accepterer datakort | 2 SD™ kort |
| Waypoints | 5.000 |
| Ruter | 100 |
| Receiver | 10 Hz høj følsomhed |
| Kompatibel med ActiveCaptain | Ja |
| Videoindgangsporte | 1 BNC |
| Video output ports | Ingen |
| Monteringsmuligheder | Bøjle- eller planmonteret |
| Supplerende knapbetjening | Knapbetjent |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Forbindelser | NMEA 2000 / NMEA 0183 |
| Kapslingsklasse | IPX7 |
| Modelserie | GPSMAP |
| Mærke | Garmin |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 1022xsv bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 1022xsv – developed for life on board
With the Garmin GPSMAP® 1022xsv, you get a chartplotter or navigation component to consolidate charts, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-thought-out part of the boat's overall installation, and you want full control over compatibility, mounting, and practical use on board.
⚡ Practical benefits
- A chartplotter with many features.
- The chartplotters feature built-in single-channel CHIRP sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonar, with Panoptix™ and LiveScope™ sonar support on selected models (transducers sold separately).
- Benefit from the built-in wireless ANT connectivity directly to your compatible Garmin devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.
- Provides a unified overview of navigation and compatible data from the boat's other electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where display, network, and sensors work together.
⛵ Suitable for
- Motorboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want help with charts, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 1022xsv |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 318 x 185 x 69 cm |
| Weight | 1.85 kg |
| Water rating | IPX7 |
| Display type | WSVGA display |
| Display size, WxH | 22.4 x 12.5 cm 10.1" (25.7 cm) diagonal |
| Display resolution, WxH | 1024 x 600 pixels |
| Power supply | 10 to 32 Vdc |
| Typical current draw at 12 V DC | 1.9A |
| Max current draw at 12 V DC | 2.7A |
| Max power consumption at 10 V DC | 32.4 W |
| Output power | 1 kW |
| Traditional sonar (dual frequency/beam) | Built-in (1-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Yes, with CHIRP (built-in) |
| SideVü | Yes, with CHIRP (built-in) |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports (Tx) | 1 |
| Garmin Marine Network™ ports | 2 |
| Supports data cards | 2 SD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Receiver | 10 Hz high sensitivity |
| Compatible with ActiveCaptain | Yes |
| Video input ports | 1 BNC |
| Video output ports | None |
| Mounting options | Bail or flush mount |
| Supplementary button control | Button operated |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
📦 What's in the box
- Package contents may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, card type, and desired network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Garmin GPSMAP® 1022xsv. You are welcome to send photos and model numbers, and I will help with the assessment.
