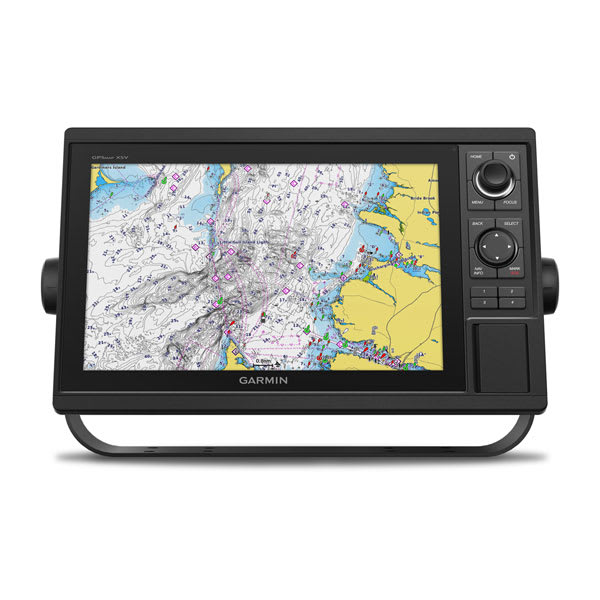

Garmin GPSMAP® 1222xsv
Item no. GAR-10254
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 2,34 kg
- Strømforsyning: 10 til 32 Vdc
- Typisk strømforbrug ved 12 V DC: 2.2 A
Technical details
| Vægt | 2,34 kg |
|---|---|
| Strømforsyning | 10 til 32 Vdc |
| Typisk strømforbrug ved 12 V DC | 2.2 A |
| Maksimalt strømforbrug ved 12 V DC | 2.9 A |
| Maksimalt strømforbrug ved 10 V DC | 34.8W |
| Udgangseffekt | 1 kW |
| Spænding | 12 V |
| Produkt/model | Garmin GPSMAP® 1222xsv |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 35,8 x 22,6 x 6,9 cm |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WXGA-skærm |
| Displaystørrelse, BxH | 26,2 x 16,3 cm12,1" (30,7 cm) diagonal |
| Displayopløsning, BxH | 1280 x 800 pixel |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Indbygget (1-kanals CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Ja, med chirp (indbygget) |
| SideVü | Ja, med chirp (indbygget) |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 1 |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Garmin Marine Network porte | 2 |
| Accepterer datakort | 2 SD™ kort |
| Waypoints | 5.000 |
| Ruter | 100 |
| Receiver | 10 Hz høj følsomhed |
| Kompatibel med ActiveCaptain | Ja |
| 12-benede transducerporte | 1 |
| Videoindgangsporte | 1 BNC |
| Video output ports | Ingen |
| Monteringsmuligheder | Bøjle- eller planmonteret |
| Supplerende knapbetjening | Knapbetjent |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Forbindelser | NMEA 2000 / NMEA 0183 |
| Kapslingsklasse | IPX7 |
| Modelserie | GPSMAP |
| Mærke | Garmin |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 1222xsv bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 1222xsv – developed for life on board
With the Garmin GPSMAP® 1222xsv, you get a chartplotter or navigation component to consolidate charts, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-thought-out part of the boat's overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical Benefits
- A feature-rich chartplotter.
- The chartplotters have a built-in single-channel CHIRP sonar, plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonar, with Panoptix™ and LiveScope™ sonar support on select models (transducers sold separately).
- Benefit from built-in wireless ANT connectivity directly to your compatible Garmin devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.
- Provides a consolidated overview of navigation and compatible data from the rest of the boat's electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where the display, network, and sensors work together.
⛵ Suitable for
- Powerboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades of existing Garmin systems
- Boat owners who want assistance with charts, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 1222xsv |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 35.8 x 22.6 x 6.9 cm |
| Weight | 2.34 kg |
| Water rating | IPX7 |
| Display type | WXGA display |
| Display size, WxH | 26.2 x 16.3 cm 12.1" (30.7 cm) diagonal |
| Display resolution, WxH | 1280 x 800 pixels |
| Power input | 10 to 32 Vdc |
| Typical current draw at 12 V DC | 2.2 A |
| Maximum current draw at 12 V DC | 2.9 A |
| Maximum power usage at 10 V DC | 34.8W |
| Transmit power | 1 kW |
| Traditional sonar (dual frequency/beam) | Built-in (single-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Yes, with CHIRP (built-in) |
| SideVü | Yes, with CHIRP (built-in) |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports (Tx) | 1 |
| Garmin Marine Network™ ports | 2 |
| Accepts data cards | 2 SD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Receiver | 10 Hz high sensitivity |
| ActiveCaptain compatible | Yes |
| 12-pin transducer ports | 1 |
| Video input ports | 1 BNC |
| Video output ports | None |
| Mounting options | Bail or flush mount |
| Auxiliary keypad support | Keypad operated |
| Track log | 50,000 points |
| Saved tracks | 50 saved tracks |
📦 In the box
- Package contents may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, map type, and the desired network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are verified before ordering the Garmin GPSMAP® 1222xsv. You are welcome to send photos and model numbers, and I will help with the assessment.
