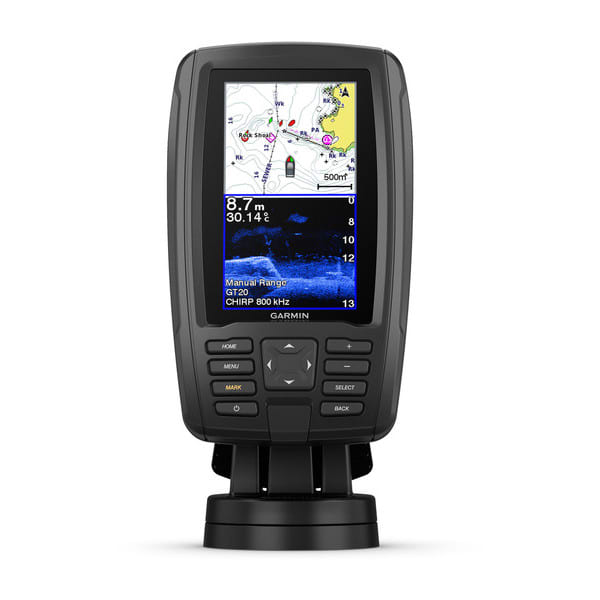

Garmin ECHOMAP™ Plus 42cv
Item no. GAR-10250
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 1,6 lbs (0,7 kg)
- Strømforsyning: 9 til 18 Vdc
- Typisk strømforbrug ved 12 V DC: 0.5 A
What is included
- Beskyttende cover (ECHOMAP™ Plus 4Xcv)
- Hurtigtudløsende vippe-/drejebeslag
- Strømkabel til køretøj
- Strøm-/datakabel (4-benet)
Technical details
| Vægt | 1,6 lbs (0,7 kg) |
|---|---|
| Strømforsyning | 9 til 18 Vdc |
| Typisk strømforbrug ved 12 V DC | 0.5 A |
| Maksimalt strømforbrug ved 12 V DC | 2.0 A |
| Maksimalt strømforbrug ved 10 V DC | 5W |
| Udgangseffekt | 500 W |
| Spænding | 12 V |
| Produkt/model | Garmin ECHOMAP™ Plus 42cv |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 4,0" x 8,0" x 3,1" (10,2 x 20,4 x 0,4 cm) |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WQVGA skærm |
| Displaystørrelse, BxH | 2,1" x 3,7"4,3" diagonalt (5,4 x 9,5 cm10,5 cm diagonalt) |
| Displayopløsning, BxH | 480 x 272 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Indbygget (1-kanals CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800 kHz |
| NMEA 2000® porte | 0 |
| NMEA 0183 indgangsporte | 1 |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Accepterer datakort | 1 microSD™ kort, 32 GB maksimal kortstørrelse |
| Waypoints | 5,000 |
| Ruter | 100 |
| Receiver | 5 Hz |
| Kompatibel med ActiveCaptain | ingen |
| Monteringsmuligheder | Bøjle- eller planmonteret |
| Supplerende knapbetjening | Knapbetjent |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Forbindelser | NMEA 0183 |
| Kapslingsklasse | IPX7 |
| Skærmstørrelse | 4,3 tommer |
| Modelserie | ECHOMAP |
| Mærke | Garmin |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin ECHOMAP™ Plus 42cv bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin ECHOMAP™ Plus 42cv – developed for life on board
With the Garmin ECHOMAP™ Plus 42cv, you get a chartplotter or navigation component to consolidate charts, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical benefits
- Take your ECHOMAP Plus with you
- 1 Auto Guidance is for planning purposes only and cannot replace safe navigation
- Bright, sunlight-readable 4.3-inch combo unit
- Provides a consolidated overview of navigation and compatible data from the boat's other electronics.
- Can be integrated into a larger Garmin system including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where display, network, and sensors work together.
⛵ Suitable for
- Powerboats and sailboats where navigation must be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with charts, transducers, networking, and compatibility
📊 Specifications
| Product/model | Garmin ECHOMAP™ Plus 42cv |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 4.0" x 8.0" x 3.1" (10.2 x 20.4 x 0.4 cm) |
| Weight | 1.6 lbs (0.7 kg) |
| Water rating | IPX7 |
| Display type | WQVGA display |
| Display size, WxH | 2.1" x 3.7" 4.3" diagonal (5.4 x 9.5 cm 10.5 cm diagonal) |
| Display resolution, WxH | 480 x 272 pixels |
| Power input | 9 to 18 Vdc |
| Typical current draw at 12 V DC | 0.5 A |
| Maximum current draw at 12 V DC | 2.0 A |
| Maximum power usage at 10 V DC | 5W |
| Transmit power | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (1-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800 kHz |
| NMEA 2000® ports | 0 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports (Tx) | 1 |
| Accepts data cards | 1 microSD™ card, 32 GB maximum card size |
| Waypoints | 5,000 |
| Routes | 100 |
| Receiver | 5 Hz |
| ActiveCaptain compatible | none |
| Mounting options | Bail or flush mount |
| Additional button operation | Button operated |
| Track points | 50,000 |
| Saved tracks | 50 saved tracks |
📦 What's in the box
- Protective cover (ECHOMAP™ Plus 4Xcv)
- Quick-release tilt/swivel mount
- Vehicle power cable
- Power/data cable (4-pin)
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, chart type, and desired network connections. Clarify transducer, radar, AIS, and other sensors before planning cable runs and mounting.
📄 Manuals and documentation
💡 My advice before ordering
I recommend verifying the model, power, connectors, and mounting conditions before ordering the Garmin ECHOMAP™ Plus 42cv. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
