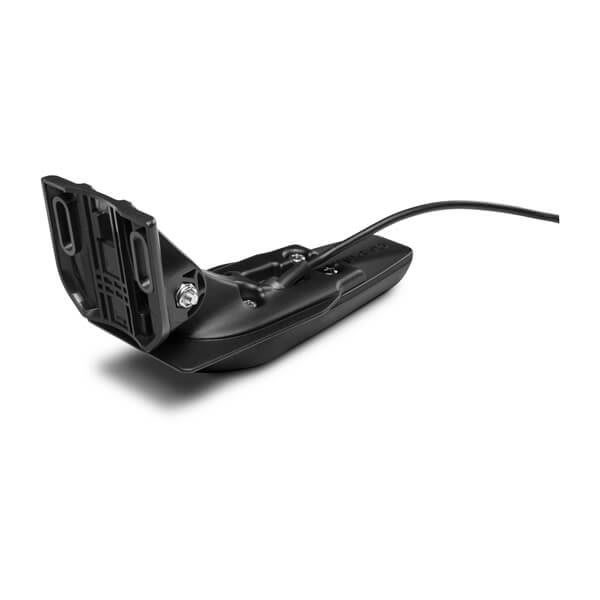

Garmin GT20-TM
Item no. GAR-10460
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Strålebredde: Traditionel: 45°/15°ClearVü: 2.5°x53°@ 455 kHz & 1,6°x29° @ 800 kHz
- Kabellængde: 20 fod
- Strøm: Traditionel 500 WClearVü 500 W
What is included
- Skrogbeslag: Disse er fastgjort til bagsiden (akterspejlet) af et bådskrog. Alternativt kan du bruge det medfølgende udstyr til at installere på en trollingmotor.
- Transduceren leveres med agterspejls- og trollingmotorbeslag og installationsvejledning. Følg vejledningen nøje for at undgå at beskadige båden.
Technical details
| Strålebredde | Traditionel: 45°/15°ClearVü: 2.5°x53°@ 455 kHz & 1,6°x29° @ 800 kHz |
|---|---|
| Maksimal dybde | Traditional: 1.900 fod.ClearVü: 750 fod |
| Kabellængde | 20 fod |
| Dybde/Hastighed/Temperatur | Dybde og temperatur |
| Strøm | Traditionel 500 WClearVü 500 W |
| Produkt/model | Garmin GT20-TM |
| Producent | Garmin |
| Frekvens | Traditionel 77/200ClearVü CHIRP 455 kHz (435-475 kHz) & 800kHz (800-840 kHz) |
| Antal Ben | 8-bens |
| Understøttet skroghældning/hækvinkel | 0°-70° hæk |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GT20-TM bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GT20-TM – developed for life on board
With the Garmin GT20-TM, you get sonar or transducer equipment for viewing depth, the bottom, fish, and structure beneath the boat. It is an obvious choice when the equipment needs to function as a well-thought-out part of the boat's overall installation, and you want to keep track of compatibility, mounting, and practical use on board.
⚡ Practical advantages
- Match the pin count on the sonar port of your sounder
- 77/200 kHz sonar transmits a single ping at either 77 or 200 kHz
- 260/455 kHz ClearVü is ideal for deeper water, 1000' max depth scanning sonar
- Can provide a more detailed picture of bottom conditions and underwater objects depending on the chosen technology.
- Can be integrated into a compatible Garmin sonar system together with a plotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth measurement, and a better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want help with transducer, frequency, connector, and mounting
📊 Specifications
| Product/model | Garmin GT20-TM |
|---|---|
| Manufacturer | Garmin |
| Power | Traditional 500 W ClearVü 500 W |
| Frequency | Traditional 77/200 ClearVü CHIRP 455 kHz (435-475 kHz) & 800 kHz (800-840 kHz) |
| Beamwidth | Traditional: 45°/15° ClearVü: 2.5°x53° @ 455 kHz & 1.6°x29° @ 800 kHz |
| Maximum depth | Traditional: 1,900 ft. ClearVü: 750 ft. |
| Cable length | 20 ft. |
| Depth/Speed/Temperature | Depth and temperature |
| Number of pins | 8-pin |
| Supported deadrise/transom angle | 0°-70° transom |
📦 Package contents
- Transom mounts: These are attached to the back (transom) of a boat hull. Alternatively, you can use the included equipment to install on a trolling motor.
- The transducer comes with transom and trolling motor mounts and installation instructions. Follow the instructions carefully to avoid damaging the boat.
🔧 Installation and compatibility
Check transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and fit the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connector, and mounting conditions are checked before ordering the Garmin GT20-TM. You are welcome to send pictures and model numbers, and I will help with the assessment.
