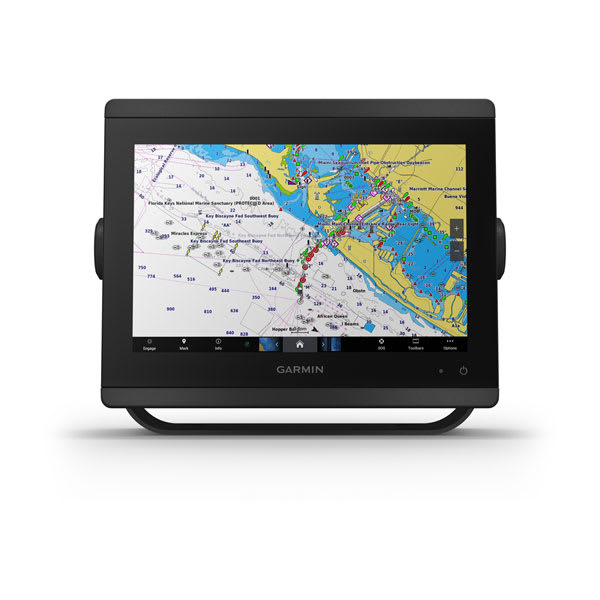

Garmin GPSMAP® 8410
Item no. GAR-10256
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 2,4 kg
- Strømforsyning: 10-32 Vdc
- Typisk strømforbrug ved 12 V DC: 1.5 A
Technical details
| Vægt | 2,4 kg |
|---|---|
| Strømforsyning | 10-32 Vdc |
| Typisk strømforbrug ved 12 V DC | 1.5 A |
| Maksimalt strømforbrug ved 12 V DC | 6.0 A |
| Maksimalt strømforbrug ved 10 V DC | 40.1W |
| Spænding | 10–32 V / 12 V |
| Produkt/model | Garmin GPSMAP® 8410 |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 259 x 205 x 75 mm |
| Vandtæthedsklasse | IPX7 |
| Displaytype | Touchscreen IPS-display (antirefleks-finish) |
| Displaystørrelse, BxH | 218 x 137 mm10.1" (218 mm) diagonal |
| Displayopløsning, BxH | WUXGA1920 x 1200 px |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Ja (med GCV™ black box, sælges separat) |
| ClearVü | Ja (med GCV™ black box, sælges separat) |
| SideVü | Ja (med GCV™ black box, sælges separat) |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 1 differential |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Garmin Marine Network porte | 2 |
| Accepterer datakort | 2 SD™-kort (på bagsiden af enheden) |
| Waypoints | 5.000 |
| Ruter | 100 (250 waypoints hver) |
| Receiver | 10 Hz GPS/GLONASS/Galileo |
| Kompatibel med ActiveCaptain | Ja |
| Videoindgangsporte | 1 BNC komposit1 HDMI (HDCP-kompatibelt) |
| Video output ports | 1 HDMI |
| J1939 porte | 1 |
| Monteringsmuligheder | Bøjle-, flad- eller planmonteret. (Garmin leverer hverken hardware eller tilbehør til fladmontering. Professionelt værktøj og viden er nødvendigt). |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Ekstra | Understøtter talte lydalarmer |
| Kapslingsklasse | IPX7 |
| Modelserie | GPSMAP |
| Mærke | Garmin |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 8410 bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 8410 – designed for life on board
With the Garmin GPSMAP® 8410, you get a chartplotter or navigation component to centralize charts, position, and relevant boat data at the helm. It is an ideal choice when the equipment needs to function as an integrated part of the boat's overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical benefits
- From ANT® technology to Wi-Fi® networks, there are countless ways to connect to your system.
- With SmartMode™ station control buttons, everything is designed to provide you with one-touch access to the information you need.
- This display, available in 10″, 12″, and 16″, offers wider viewing angles, superior image clarity, and readability in sunlight, even with polarized sunglasses.
- Provides a unified overview of navigation and compatible data from the rest of the boat's electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where screens, networks, and sensors work together.
⛵ Suitable for
- Motorboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with charts, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 8410 |
|---|---|
| Manufacturer | Garmin |
| Physical size (WxHxD) | 259 x 205 x 75 mm |
| Weight | 2.4 kg |
| Water rating | IPX7 |
| Display type | Touchscreen IPS display (anti-glare finish) |
| Display size, WxH | 218 x 137 mm 10.1" (218 mm) diagonal |
| Display resolution, WxH | WUXGA 1920 x 1200 px |
| Power input | 10-32 Vdc |
| Typical current draw at 12 V DC | 1.5 A |
| Maximum current draw at 12 V DC | 6.0 A |
| Maximum power usage at 10 V DC | 40.1W |
| Traditional sonar (dual frequency/beam) | Yes (with GCV™ black box, sold separately) |
| ClearVü | Yes (with GCV™ black box, sold separately) |
| SideVü | Yes (with GCV™ black box, sold separately) |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 1 differential |
| NMEA 0183 output ports (Tx) | 1 |
| Garmin Marine Network™ ports | 2 |
| Accepts data cards | 2 SD™ cards (on back of unit) |
| Waypoints | 5,000 |
| Routes | 100 (250 waypoints each) |
| Receiver | 10 Hz GPS/GLONASS/Galileo |
| Compatible with ActiveCaptain | Yes |
| Video input ports | 1 BNC composite, 1 HDMI (HDCP compatible) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Mounting options | Bail, flush, or flat mount. (Garmin does not provide hardware or accessories for flat mounting. Professional tools and expertise are required). |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Extra | Supports audible alarms |
📦 In the box
- Package contents may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Verify physical dimensions, mounting depth, power supply, fuses, chart types, and desired network connections. Determine transducer, radar, AIS, and other sensor requirements before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend verifying the model, power, connectors, and mounting conditions before ordering the Garmin GPSMAP® 8410. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
