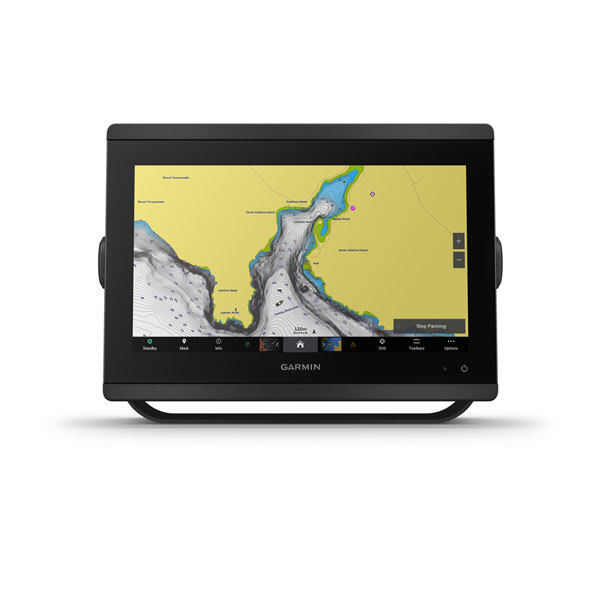

Garmin GPSMAP® 8412xsv
Item no. GAR-10258
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 2,7 kg
- Strømforsyning: 10-32 Vdc
- Typisk strømforbrug ved 12 V DC: 1.3 A
Technical details
| Vægt | 2,7 kg |
|---|---|
| Strømforsyning | 10-32 Vdc |
| Typisk strømforbrug ved 12 V DC | 1.3 A |
| Maksimalt strømforbrug ved 12 V DC | 6.0 A |
| Maksimalt strømforbrug ved 10 V DC | 45W |
| Udgangseffekt | 1 kW |
| Spænding | 10–32 V / 12 V |
| Produkt/model | Garmin GPSMAP® 8412xsv |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 303 x 216 x 76 mm |
| Vandtæthedsklasse | IPX7 |
| Displaytype | FHD, IPS |
| Displaystørrelse, BxH | 257 x 145 mm11.6" (295 mm) diagonal |
| Displayopløsning, BxH | 1920 x 1080 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Indbygget (CHIRP med til kanaler, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Indbygget 260/455/800/1000/1200 kHz |
| SideVü | Indbygget 260/455/800/1000/1200 kHz |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 1 differential |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Garmin Marine Network porte | 2 |
| Accepterer datakort | 2 SD™-kort (på bagsiden af enheden) |
| Waypoints | 5.000 |
| Ruter | 100 (250 waypoints hver) |
| Receiver | 10 Hz GPS/GLONASS/Galileo |
| Kompatibel med ActiveCaptain | Ja |
| Videoindgangsporte | 1 BNC komposit1 HDMI (HDCP-kompatibelt) |
| Video output ports | 1 HDMI |
| J1939 porte | 1 |
| Monteringsmuligheder | Bøjle-, flad- eller planmonteret. (Garmin leverer hverken hardware eller tilbehør til fladmontering. Professionelt værktøj og viden er nødvendigt). |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Kapslingsklasse | IPX7 |
| Modelserie | GPSMAP |
| Mærke | Garmin |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 8412xsv bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 8412xsv – designed for life on board
With the Garmin GPSMAP® 8412xsv, you get a chartplotter or navigation component to consolidate charts, positioning, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical benefits
- From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
- With SmartMode™ station control buttons, everything is designed to give you quick, one-touch access to the information you need.
- This display, available in 10″, 12″, and 16″, provides wider viewing angles, premium image clarity, and sunlight readability, even with polarized sunglasses.
- Provides a consolidated overview of navigation and compatible data from the boat’s other electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where the display, network, and sensors work together.
⛵ Suitable for
- Powerboats and sailboats where navigation must be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with charts, transducers, networking, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 8412xsv |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 303 x 216 x 76 mm |
| Weight | 2.7 kg |
| Water rating | IPX7 |
| Display type | FHD, IPS |
| Display size, WxH | 257 x 145 mm 11.6" (295 mm) diagonal |
| Display resolution, WxH | 1920 x 1080 pixels |
| Power supply | 10-32 Vdc |
| Typical current draw at 12 V DC | 1.3 A |
| Maximum current draw at 12 V DC | 6.0 A |
| Maximum power usage at 10 V DC | 45W |
| Output power | 1 kW |
| Traditional sonar (dual frequency/beam) | Built-in (CHIRP dual channel, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 1 differential |
| NMEA 0183 output ports (Tx) | 1 |
| Garmin Marine Network™ ports | 2 |
| Supports data cards | 2 SD™ cards (on the back of the unit) |
| Waypoints | 5,000 |
| Routes | 100 (250 waypoints each) |
| Receiver | 10 Hz GPS/GLONASS/Galileo |
| ActiveCaptain compatible | Yes |
| Video input ports | 1 BNC composite, 1 HDMI (HDCP compatible) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Mounting options | Bail, flush, or flat mount. (Garmin does not provide hardware or accessories for flat mounting. Professional tools and knowledge are required). |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
📦 In the box
- The scope of delivery may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fusing, chart type, and required network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Garmin GPSMAP® 8412xsv. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
