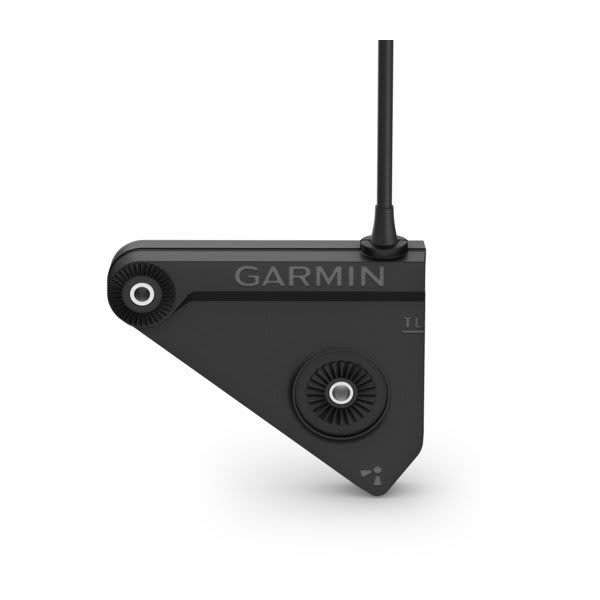

Garmin Panoptix LiveScope LVS12 transducer
Item no. GAR-10282
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Strålebredde: 30°x20° Forward and 30°x20° Down
- Kabellængde: 3,6 m (12 fod)
- Strøm: 500 W
What is included
- Både fremadrettet og nedadrettet visninger inkluderet i én transducer, uden behov for manuel justering
Technical details
| Strålebredde | 30°x20° Forward and 30°x20° Down |
|---|---|
| Maksimal dybde | Nedadrettet og fremadrettet: 60 m (200 fod) |
| Kabellængde | 3,6 m (12 fod) |
| Dybde/Hastighed/Temperatur | Dybde |
| Strøm | 500 W |
| Produkt/model | Garmin Panoptix LiveScope LVS12 transducer |
| Producent | Garmin |
| Frekvens | 530-1.100 kHz |
| Antal Ben | 12 |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Panoptix LiveScope LVS12 transducer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Panoptix LiveScope LVS12 transducer – developed for life on board
With the Garmin Panoptix LiveScope LVS12 transducer, you get sonar or transducer equipment for viewing depth, the bottom, fish, and structure under the boat. It is an obvious choice when the equipment needs to function as a well-thought-out part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical advantages
- Provides 30-degree forward and 30-degree downward real-time scanning sonar
- Panoptix LiveScope LVS12 Transducer
- Provides a better overview of depth, bottom conditions, and fish.
- Can provide a more detailed image of bottom conditions and objects underwater depending on the chosen technology.
- Can be integrated into a compatible Garmin sonar system together with a chartplotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth measurement, and better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want assistance with transducer, frequency, connector, and mounting
📊 Specifications
| Product/model | Garmin Panoptix LiveScope LVS12 transducer |
|---|---|
| Manufacturer | Garmin |
| Power | 500 W |
| Frequency | 530-1,100 kHz |
| Beamwidth | 30°x20° Forward and 30°x20° Down |
| Maximum depth | Downward and forward: 60 m (200 ft) |
| Cable length | 3.6 m (12 ft) |
| Depth/Speed/Temperature | Depth |
| Number of pins | 12 |
📦 Box contents
- Both forward and downward views included in one transducer, no need for manual adjustment
🔧 Installation and compatibility
Check transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and fit the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connector, and mounting conditions be checked before the Garmin Panoptix LiveScope LVS12 transducer is ordered. You are welcome to send photos and model numbers, and I will help with the assessment.
