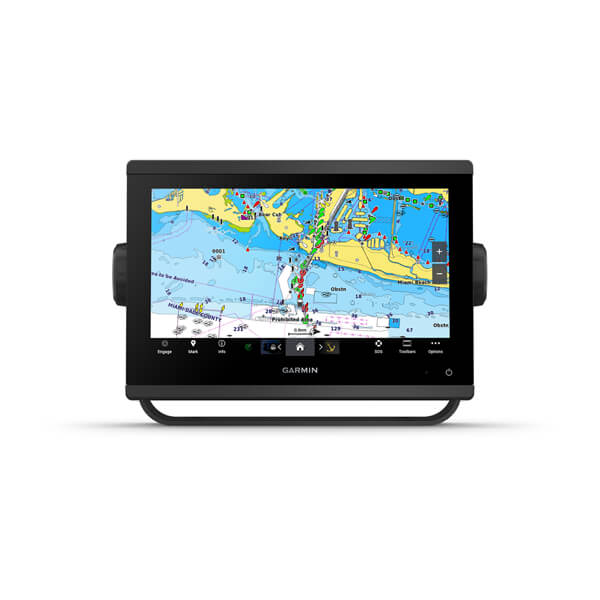

Garmin GPSMAP® 923, without sonar with worldwide basemap
Item no. GAR-10442
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Vægt: 1,6 kg
- Strømforsyning: 10 til 32 Vdc
- Typisk strømforbrug ved 12 V DC: 1.34 A
Technical details
| Vægt | 1,6 kg |
|---|---|
| Strømforsyning | 10 til 32 Vdc |
| Typisk strømforbrug ved 12 V DC | 1.34 A |
| Maksimalt strømforbrug ved 12 V DC | 1.78 A |
| Maksimalt strømforbrug ved 10 V DC | 22.0W |
| Spænding | 12 V |
| Produkt/model | Garmin GPSMAP® 923, uden ekkolod med globalt baggrundskort |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 9,2" x 6,4" x 3" (23,3 x 16,2 x 7,6 cm) |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WXGA-skærm |
| Displaystørrelse, BxH | 7,8" x 4,4"9,0" diagonalt(19,9 x 11,2 cm22,9 cm diagonalt) |
| Displayopløsning, BxH | 1280 x 720 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Ja (med GCV™ black box, sælges separat) |
| ClearVü | Ja (med GCV™ black box, sælges separat) |
| SideVü | Ja (med GCV™ black box, sælges separat) |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 1 (differential) |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Garmin Marine Network porte | 1 |
| Accepterer datakort | 2 microSD™-kort (på bagsiden af enheden) |
| Waypoints | 5,000 |
| Ruter | 100 |
| Receiver | 10 Hz høj følsomhed |
| Kompatibel med ActiveCaptain | Ja |
| Videoindgangsporte | 1 BNC |
| J1939 porte | 1 |
| Monteringsmuligheder | Bøjle, planmonteret eller flad |
| Supplerende knapbetjening | Touchscreen |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Forbindelser | NMEA 2000 / NMEA 0183 |
| Kapslingsklasse | IPX7 |
| Modelserie | GPSMAP |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 923, uden ekkolod med globalt baggrundskort bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 923, no sonar with worldwide basemap – developed for life on board
With the Garmin GPSMAP® 923, no sonar with worldwide basemap, you get a chartplotter or navigation component to consolidate charts, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical benefits
- Manage your marine experience, almost wherever you are.
- Pair with Panoptix or LiveScope™ easy-to-read sonar (transducer required, sold separately) to see all around the boat in real time.
- With increased processing power and a new slim design with edge-to-edge glass and a smaller footprint, it is easy to retrofit this plotter into a wide range of dashboard configurations.
- Provides a unified overview of navigation and compatible data from the boat's other electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where display, network, and sensors work together.
⛵ Well-suited for
- Powerboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with charts, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 923, no sonar with worldwide basemap |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| Weight | 1.6 kg |
| Water rating | IPX7 |
| Display type | WXGA display |
| Display size, WxH | 7.8" x 4.4" 9.0" diagonal (19.9 x 11.2 cm 22.9 cm diagonal) |
| Display resolution, WxH | 1280 x 720 pixels |
| Power input | 10 to 32 Vdc |
| Typical current draw at 12 V DC | 1.34 A |
| Max current draw at 12 V DC | 1.78 A |
| Max power usage at 10 V DC | 22.0W |
| Traditional sonar (dual frequency/beam) | Yes (with GCV™ black box, sold separately) |
| ClearVü | Yes (with GCV™ black box, sold separately) |
| SideVü | Yes (with GCV™ black box, sold separately) |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 1 (differential) |
| NMEA 0183 output ports (Tx) | 1 |
| Garmin Marine Network ports | 1 |
| Accepts data cards | 2 microSD™ cards (on back of unit) |
| Waypoints | 5,000 |
| Routes | 100 |
| Receiver | 10 Hz high-sensitivity |
| ActiveCaptain compatible | Yes |
| Video input ports | 1 BNC |
| J1939 ports | 1 |
| Mounting options | Bail, flush or flat |
| Additional button operation | Touchscreen |
| Track log | 50,000 |
| Saved tracks | 50 saved tracks |
📦 What's in the box
- Scope of delivery may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, card type, and desired network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Garmin GPSMAP® 923, no sonar with worldwide basemap. You are welcome to send photos and model numbers, and I will help with the assessment.
