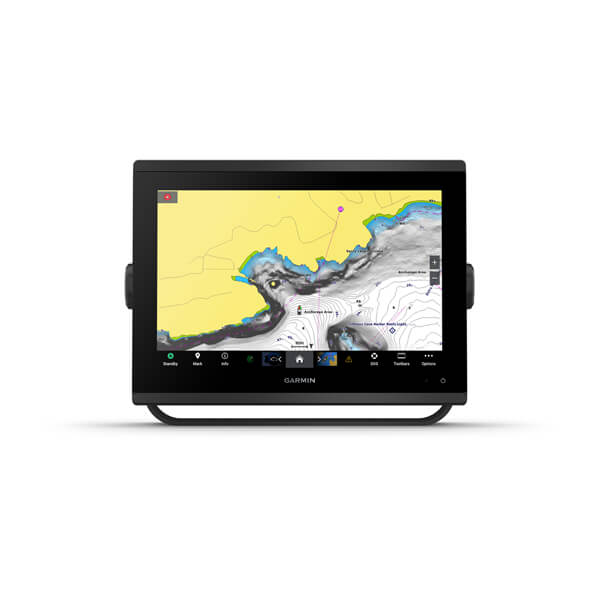

Garmin GPSMAP® 1223xsv, SideVü, ClearVü and Traditional CHIRP sonar with worldwide basemap
Item no. GAR-10445
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Vægt: 3,0 kg
- Strømforsyning: 10 til 32 Vdc
- Typisk strømforbrug ved 12 V DC: 1.68 A
Technical details
| Vægt | 3,0 kg |
|---|---|
| Strømforsyning | 10 til 32 Vdc |
| Typisk strømforbrug ved 12 V DC | 1.68 A |
| Maksimalt strømforbrug ved 12 V DC | 3.56 A |
| Maksimalt strømforbrug ved 10 V DC | 43.0W |
| Udgangseffekt | 1 kW |
| Spænding | 12 V |
| Produkt/model | Garmin GPSMAP® 1223xsv, SideVü, ClearVü og Traditional chirp ekkolod med globalt baggrundskort |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 12,1" x 8,9" x 3,2" (30,8 x 22,8 x 8,2 cm) |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WXGA-skærm |
| Displaystørrelse, BxH | 10,3" x 6,4"12,1" diagonalt(26,2 x 16,3 cm30,7 cm diagonalt) |
| Displayopløsning, BxH | 1280 x 800 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Indbygget (1-kanals CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Indbygget 260/455/800/1000/1200 kHz |
| SideVü | Indbygget 260/455/800/1000/1200 kHz |
| NMEA 2000® porte | 1 |
| NMEA 0183 indgangsporte | 1 |
| NMEA 0183 udgangsporte (Tx) | 1 |
| Garmin Marine Network porte | 2 |
| Accepterer datakort | 2 microSD™-kort (på bagsiden af enheden) |
| Waypoints | 5,000 |
| Ruter | 100 |
| Receiver | 10 Hz høj følsomhed |
| Kompatibel med ActiveCaptain | Ja |
| 12-benede transducerporte | 1 |
| Videoindgangsporte | 1 BNC |
| Video output ports | 1 HDMI |
| J1939 porte | 1 |
| Monteringsmuligheder | Bøjle- eller planmonteret |
| Supplerende knapbetjening | Touchscreen |
| Sporpunkter | 50,000 |
| Løbebaner | 50 saved tracks |
| Forbindelser | NMEA 2000 / NMEA 0183 |
| Kapslingsklasse | IPX7 |
| Modelserie | GPSMAP |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GPSMAP® 1223xsv, SideVü, ClearVü og Traditional chirp ekkolod med globalt baggrundskort bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GPSMAP® 1223xsv, SideVü, ClearVü, and Traditional CHIRP sonar with worldwide basemap – designed for life on board
With the Garmin GPSMAP® 1223xsv, SideVü, ClearVü, and Traditional CHIRP sonar with worldwide basemap, you get a chartplotter or navigation component to consolidate maps, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall setup, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical Benefits
- Manage your marine experience from almost anywhere.
- Pair with Panoptix or LiveScope™ easy-to-read sonar (transducer required, sold separately) so you can see all around the boat in real-time.
- With the extra processing power and the new sleek design with edge-to-edge glass and a smaller footprint for the unit, it is easy to retrofit this plotter into a wide range of dashboard configurations.
- Provides a unified overview of navigation and compatible data from the boat's other electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where display, network, and sensors work together.
⛵ Suitable for
- Motorboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with maps, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin GPSMAP® 1223xsv, SideVü, ClearVü, and Traditional CHIRP sonar with worldwide basemap |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| Weight | 3.0 kg |
| Water rating | IPX7 |
| Display type | WXGA display |
| Display size, WxH | 10.3" x 6.4" 12.1" diagonal (26.2 x 16.3 cm 30.7 cm diagonal) |
| Display resolution, WxH | 1280 x 800 pixels |
| Power supply | 10 to 32 Vdc |
| Typical current draw at 12 V DC | 1.68 A |
| Max current draw at 12 V DC | 3.56 A |
| Max current draw at 10 V DC | 43.0W |
| Transmit power | 1 kW |
| Traditional sonar (dual frequency/beam) | Built-in (1-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| NMEA 2000® ports | 1 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports (Tx) | 1 |
| Garmin Marine Network™ ports | 2 |
| Accepts data cards | 2 microSD™ cards (back of unit) |
| Waypoints | 5,000 |
| Routes | 100 |
| Receiver | 10 Hz high sensitivity |
| ActiveCaptain compatible | Yes |
| 12-pin transducer ports | 1 |
| Video input ports | 1 BNC |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Mounting options | Bail or flush |
| Additional button controls | Touchscreen |
| Track points | 50,000 |
| Saved tracks | 50 saved tracks |
📦 In the box
- Scope of delivery may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, map type, and the desired network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Garmin GPSMAP® 1223xsv, SideVü, ClearVü, and Traditional CHIRP sonar with worldwide basemap. You are welcome to send photos and model numbers, and I will help with the assessment.
