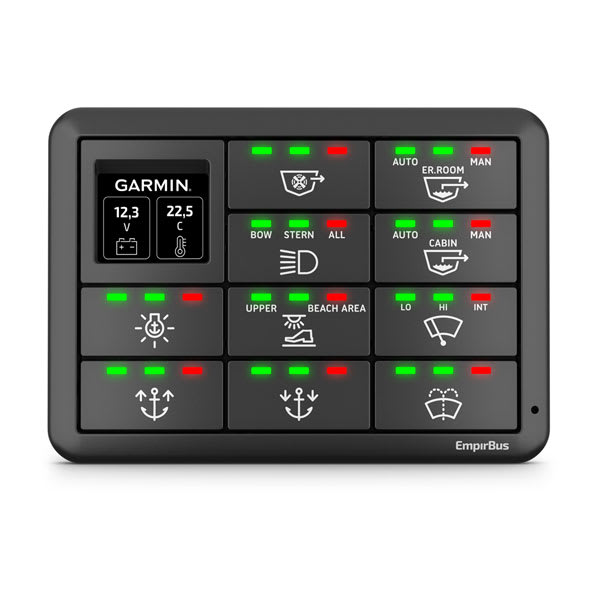

Garmin EmpirBus™ SP8 & SP12 switches, SP12, horizontal with screen
Item no. GAR-10354
Saml betjening og forbindelser i et overskueligt panel.
- Giver de angivne kredse et fast betjenings- eller tilslutningspunkt.
- Mål: 4 x 2: (55,2 x 115,8 x 14,4 mm)2 x 4: (104,7 x 62,8 x 21,7 mm)
- Mål (B x H x D): 127,5 x 90,5 x 12,2 mm
- Vægt (kun enhed): 0,2 kg
Technical details
| Mål | 4 x 2: (55,2 x 115,8 x 14,4 mm)2 x 4: (104,7 x 62,8 x 21,7 mm) |
|---|---|
| Mål (B x H x D) | 127,5 x 90,5 x 12,2 mm |
| Vægt (kun enhed) | 0,2 kg |
| Strømforsyning | 12/12 V |
| Strømforbrug | Maks./gennemsnit 500 mA/0.25 mA |
| Forsyningsspænding | 9-32 Vdc |
| Produkt/model | Garmin EmpirBus™ SP8 & SP12 kontakter, SP12, vandret med skærm |
| Producent | Garmin |
| NMEA 2000 | Mikro 5-benet M12 han |
| Fabrikant | Grayhill, Inc. |
| Serie | 3K |
| Pakke | Bulk |
| Kontakttype | Snap dome |
| Antal taster | 8 |
| Matrix (kolonner x rækker) | 2 x 44 x 2 |
| Belysning | Ja |
| Tasttype | Gummioverlejring |
| Udgangstype | CAN-bus (J1939) |
| Tegnforklaringsfarve | Hvid |
| Tastfarve | Sort |
| Monteringstype | Panelmontering, front |
| Stik | 4-benet Dutch DT |
| Driftstemperatur | 40° C ~ 85° C |
| Indgangsbeskyttelse | IP67 |
| Omgivelsestemperatur | 20 °C til +55 °C |
| Indkapslingens vandklassificering | IP21-beskyttelse mod indtrængning |
| Kommunikation | CAN-bus NMEA 2000® |
| Mærke | Garmin |
| Kapslingsklasse | IP67 / IP21 |
Installation and choosing accessories
Kontrollér kredsenes spænding, belastning, sikringer, tæthed og monteringsmål.
Installation og kompatibilitet
Kontrollér varenummer, fysisk pasform, stiktype, spænding og kompatibilitet med det eksisterende udstyr, før du bestiller eller monterer produktet.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin EmpirBus™ SP8 & SP12 kontakter, SP12, vandret med skærm bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin EmpirBus™ SP8 & SP12 Keypads, SP12, horizontal with screen – designed for life on board
With Garmin EmpirBus™ SP8 & SP12 Keypads, SP12, horizontal with screen, you get original marine equipment or accessories for the installation, replacement, or upgrade of compatible Garmin and Fusion equipment. It is an ideal choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, proper mounting, and practical use on board.
⚡ Practical Benefits
- Selected for marine use
- Suitable for a complete boat installation
- Check compatibility before ordering
- Designed to be integrated with compatible marine equipment.
- Can be relevant for new installations, expansions, or replacing existing parts.
- It is important to match the model, part number, connectors, and mounting conditions before ordering.
⛵ Suitable for
- New installations and upgrades of existing marine electronics
- Replacement of compatible parts, brackets, cables, or accessories
- Boat owners who want help verifying the correct part
📊 Specifications
| Product/model | Garmin EmpirBus™ SP8 & SP12 Keypads, SP12, horizontal with screen |
|---|---|
| Manufacturer | Garmin |
| Dimensions | 4 x 2: (55.2 x 115.8 x 14.4 mm)2 x 4: (104.7 x 62.8 x 21.7 mm) |
| Dimensions (W x H x D) | 127.5 x 90.5 x 12.2 mm |
| Weight (unit only) | 0.2 kg |
| Power supply | 12/12 V |
| Power consumption | Max./average 500 mA/0.25 mA |
| NMEA 2000 | Micro 5-pin M12 male |
| Manufacturer | Grayhill, Inc. |
| Series | 3K |
| Package | Bulk |
| Switch type | Snap dome |
| Number of keys | 8 |
| Matrix (columns x rows) | 2 x 44 x 2 |
| Backlighting | Yes |
| Key type | Rubber overlay |
| Output type | CAN-bus (J1939) |
| Legend color | White |
| Key color | Black |
| Mounting type | Panel mount, front |
| Connector | 4-pin Deutsch DT |
| Operating temperature | 40° C ~ 85° C |
| Ingress protection | IP67 |
| Ambient temperature | 20° C to +55° C |
| Enclosure water rating | IP21 ingress protection |
| Communication | CAN-bus NMEA 2000® |
| Supply voltage | 9-32 Vdc |
📦 Box contents
- Scope of delivery may vary between models and variants. Please check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Please check the part number, physical fit, connector type, voltage, and compatibility with existing equipment before ordering or installing the product.
📄 Manuals and documentation
💡 My advice before ordering
I recommend verifying the model, power, connectors, and mounting conditions before ordering the Garmin EmpirBus™ SP8 & SP12 Keypads, SP12, horizontal with screen. You are welcome to send photos and model numbers, and I will assist you with the assessment.
