Garmin

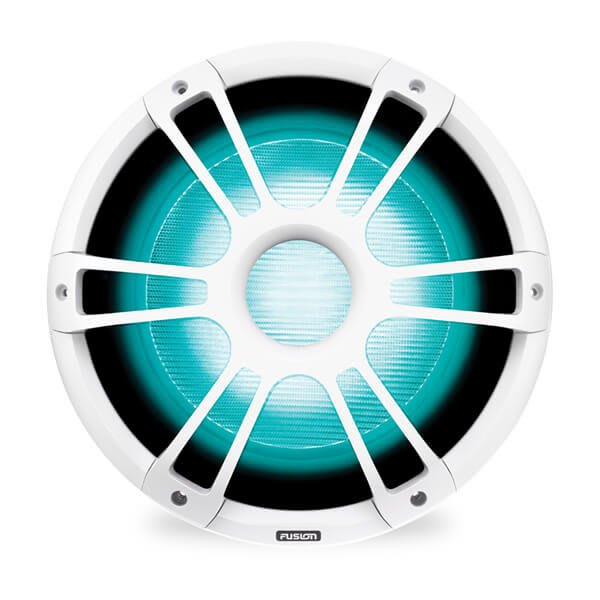

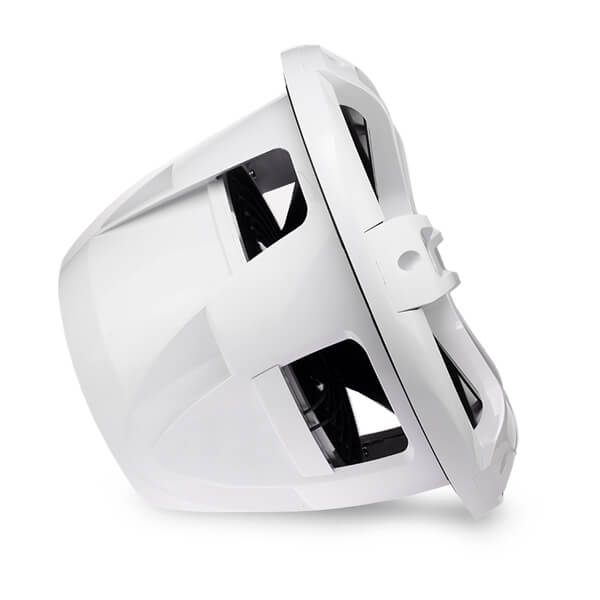

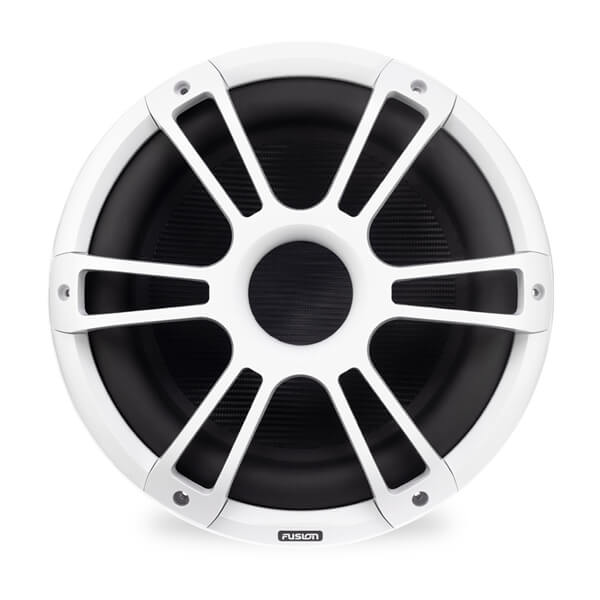

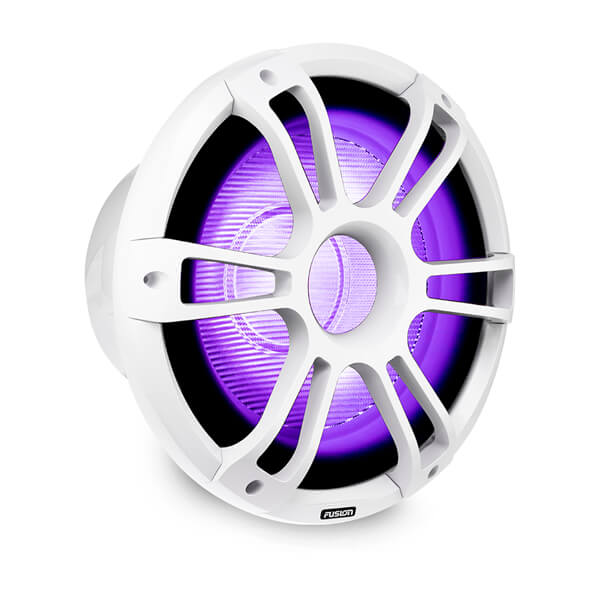

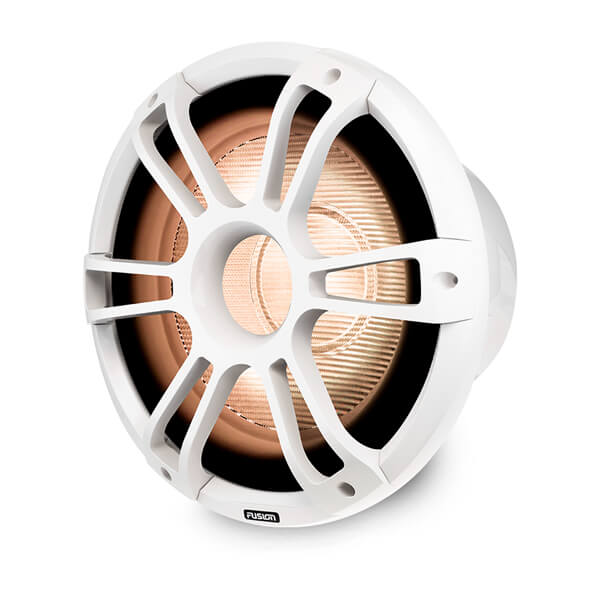

Garmin Fusion® Marine subwoofers, 12″ 1400 W sports white marine subwoofer with CRGBW
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Fysiske mål (diameter x dybde): 12″ Sports: 14.02″ x 10″ (356 x 254 mm) 10″ Classic: 10.83″ x 6.38″ (275 x 162 mm) 10″ Sports: 10.83″ x 6.77" (275 x 172 mm)
- Portlængde: 10.43″ (265 mm)
- LED-belastningsstrøm ved 14,4 V DC: 300 mA (kun sportsstil)
Technical details
| Fysiske mål (diameter x dybde) | 12″ Sports: 14.02″ x 10″ (356 x 254 mm) 10″ Classic: 10.83″ x 6.38″ (275 x 162 mm) 10″ Sports: 10.83″ x 6.77" (275 x 172 mm) |
|---|---|
| Portdiameter | 4″ (104 mm) |
| Portlængde | 10.43″ (265 mm) |
| Diameter på svingspole | 2″ |
| Monteringsdiameter, frirum | 8.78″ (223 mm) |
| Monteringsdybde, frirum | 5.24″ (133 mm) |
| LED-belastningsstrøm ved 14,4 V DC | 300 mA (kun sportsstil) |
| Maks. effekt (watt) | 600 W |
| Anbefalet forstærkereffekt (RMS) | 50-600 W |
| LED-forsyningsspænding | 10,8-16 V DC (kun sportsstil) |
| Effektangivelse | 1.400 W |
| Angivet effekt | 1,400 W |
| Produkt/model | Garmin Fusion® Marine subwoofere, 12″ 1.400 W sportshvid marinesubwoofer med CRGBW |
| Producent | Fusion |
| Rumfang for kabinet med porte (ventileret) (foret med absorberende materiale) | 45 l (1,6 kubikfod) |
| Vand- og støvklassifikation | IP65 |
| Højttalerstørrelse | 10″ |
| Følsomhed (1 W / 1 m) | 86 dB |
| Nominel impedans | 4 ohm |
| LED-belysning | Ja – CRGBW (kun sportsstil) |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | Polypropylenkegle med gummikant |
| Sikkerhedsafstand for kompas | 205″ (520 cm) |
| Rumfang af forseglet kabinet (helt fyldt med absorberende materiale) | 17,2 l (0,6 kubikfod) |
| Mærke | Garmin |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt, anbefalet forstærkereffekt og kabeldimension. Ved udvendig montering skal vandklassifikation, tætning og afvanding passe til placeringen.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Fusion® Marine subwoofere, 12″ 1.400 W sportshvid marinesubwoofer med CRGBW bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Fusion® Marine subwoofers, 12″ 1,400 W sports white marine subwoofer with CRGBW – designed for life on board
With the Garmin Fusion® Marine subwoofers, 12″ 1,400 W sports white marine subwoofer with CRGBW, you get a marine subwoofer for more fullness and a deeper, more controlled bass response in your boat's sound system. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- 12″ 1,400 W sports white marine subwoofer with CRGBW
- Industry-leading marine subwoofers with CRGBW LED lighting.
- The new Signature Series 3 subwoofers now have an improved power rating of 600 watts.
- Designed for marine use, where humidity, vibrations, and mounting conditions place higher demands on the equipment.
- Can be combined with compatible Fusion and Garmin components, allowing speakers, amplifier, and control to be planned as a single solution.
- Makes it possible to dimension the bass section according to the boat's size, listening area, and the amplifier that will drive the subwoofer.
⛵ Suitable for
- Cockpit, salon, or flybridge where the sound experience needs more depth and fullness
- New sound installations and upgrades of compatible Fusion equipment
- Boat owners who want assistance with power, impedance, cable dimensioning, and placement
📊 Specifications
| Product/model | Garmin Fusion® Marine subwoofers, 12″ 1,400 W sports white marine subwoofer with CRGBW |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter x depth) | 12″ Sports: 14.02″ x 10″ (356 x 254 mm) 10″ Classic: 10.83″ x 6.38″ (275 x 162 mm) 10″ Sports: 10.83″ x 6.77" (275 x 172 mm) |
| LED load current at 14.4 V DC | 300 mA (sports style only) |
| Enclosure volume with ports (vented) (lined with absorbent material) | 45 l (1.6 cubic feet) |
| Port diameter | 4″ (104 mm) |
| Port length | 10.43″ (265 mm) |
| Water and dust rating | IP65 |
| Speaker size | 10″ |
| Max power (watts) | 600 W |
| Sensitivity (1 W / 1 m) | 86 dB |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 50-600 W |
| LED lighting | Yes – CRGBW (sports style only) |
| LED supply voltage | 10.8-16 V DC (sports style only) |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Voice coil diameter | 2″ |
| Cone material | Polypropylene cone with rubber surround |
| Compass safe distance | 205″ (520 cm) |
| Mounting diameter, clearance | 8.78″ (223 mm) |
| Mounting depth, clearance | 5.24″ (133 mm) |
| Sealed enclosure volume (fully filled with absorbent material) | 17.2 l (0.6 cubic feet) |
📦 In the box
- Scope of delivery may vary between models and variants. Check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check cut-out dimensions, mounting depth, impedance, RMS power, recommended amplifier power, and cable dimension. For external mounting, ensure the water rating, sealing, and drainage are suitable for the location.
📄 Manuals and documentation
💡 My advice before ordering
I recommend verifying the model, power, connectors, and mounting conditions before ordering the Garmin Fusion® Marine subwoofers, 12″ 1,400 W sports white marine subwoofer with CRGBW. You are welcome to send photos and model numbers, and I will help with the assessment.
