Garmin

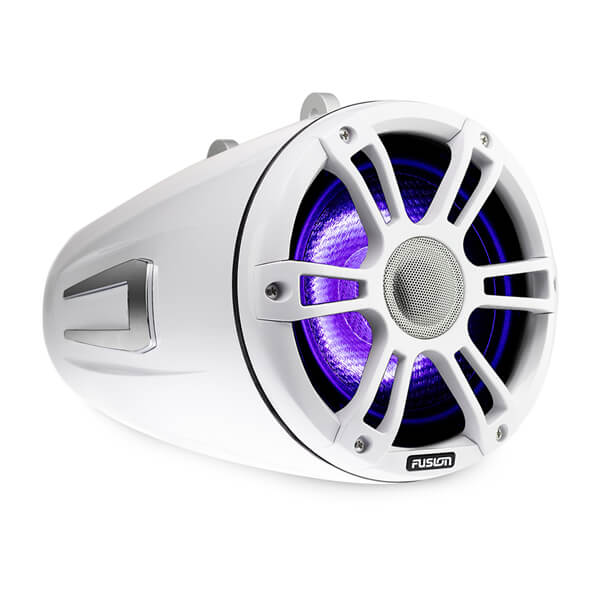

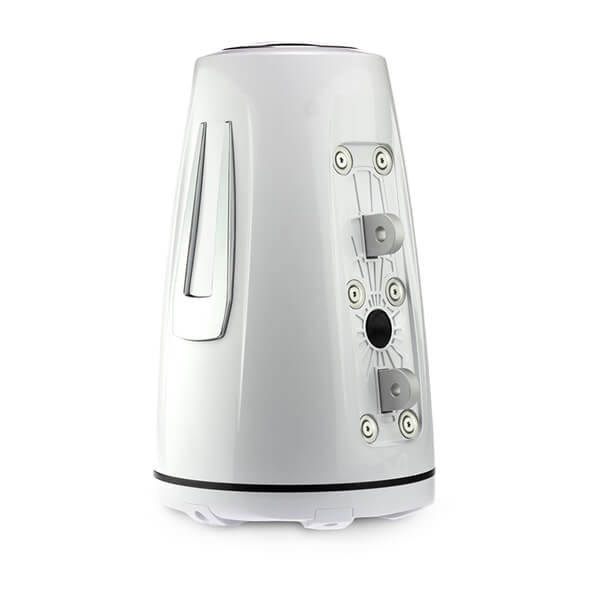

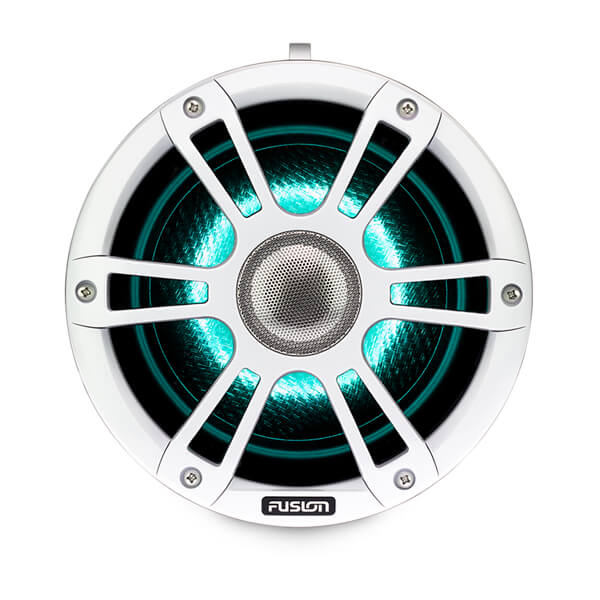

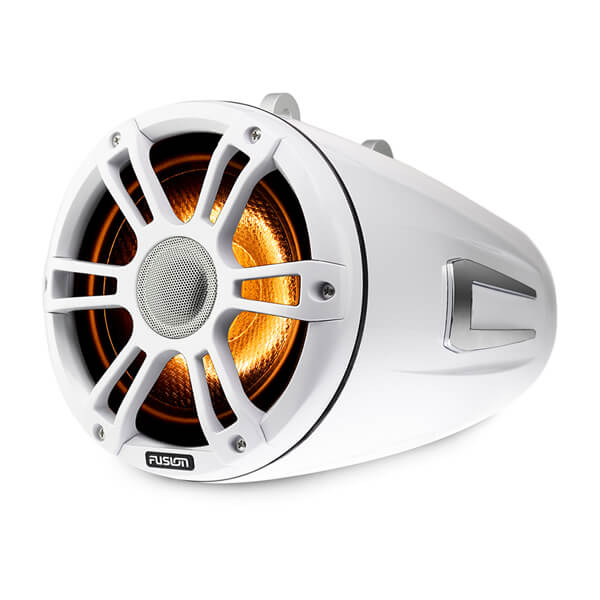

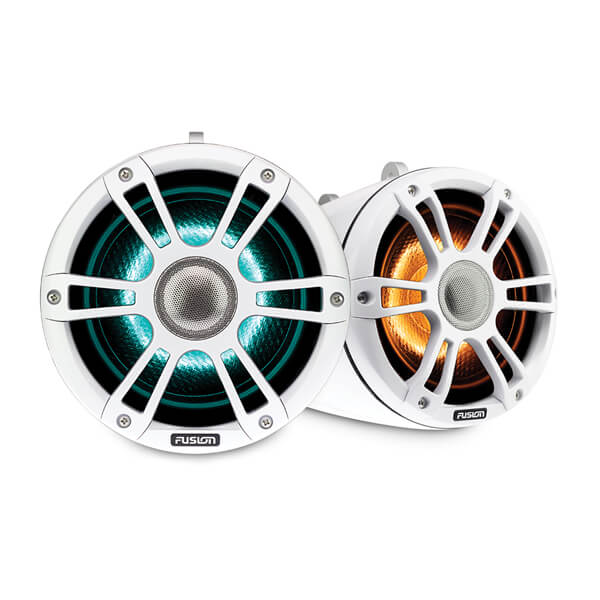

Garmin Fusion® Signature Series 3 Wake Tower marine speakers, 7.7" 280-watt sports white wake tower marine speakers with CRGBW
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Fysiske mål (diameter x dybde): 224 x 385 mm 196 x 328 mm 176 x 304 mm
- LED-belastningsstrøm ved 14,4 V DC: 300 mA
- Maks. effekt (watt): Monoblok: 2250 W 7,7": 280 W 6,5": 230 W
Technical details
| Fysiske mål (diameter x dybde) | 224 x 385 mm 196 x 328 mm 176 x 304 mm |
|---|---|
| Diameter på svingspole | 8,8": 1,5" 7,7": 1,4" 6,5": 1,2" |
| LED-belastningsstrøm ved 14,4 V DC | 300 mA |
| Maks. effekt (watt) | Monoblok: 2250 W 7,7": 280 W 6,5": 230 W |
| RMS topeffekt (watt) | 8,8" højttaler: 130 W 7,7": 100 W 6,5": 75 W |
| Anbefalet forstærkereffekt (RMS) | 8,8": 25-140 W/kanal 7,7": 25-120 W/kanal 6,5": 30-90 W/kanal |
| LED-forsyningsspænding | 10,8-16 VDC |
| Produkt/model | Garmin Fusion® Signature Series 3 Wake Tower marinehøjttalere, 7,7" 280 watt sportshvide wake tower marinehøjttalere med CRGBW |
| Producent | Fusion |
| Vand- og støvklassifikation | IP65 |
| Opsætning | Koaksial |
| Højttalerstørrelse | SG-FL882SPW / SG-FL882SPC / SG-F882W: 8,8" |
| Følsomhed (1 W / 1 m) | 8,8" højttaler: 91 dB 7,7": 91 dB 6,5": 90 dB |
| Nominel impedans | 4 ohm |
| LED-belysning | Ja – CRGBW |
| Driftstemperatur | 0° til 50° C |
| Diskanttype | Silk-dome |
| Sikkerhedsafstand for kompas | 8,8": 412 cm 7,7": 358 cm 6,5": 310 cm |
| Modelserie | Signature |
| Mærke | Garmin |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Fusion® Signature Series 3 Wake Tower marinehøjttalere, 7,7" 280 watt sportshvide wake tower marinehøjttalere med CRGBW bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Fusion® Signature Series 3 Wake Tower Marine Speakers, 7.7" 280-watt Sports White Wake Tower Marine Speakers with CRGBW – engineered for life on the water
With the Garmin Fusion® Signature Series 3 Wake Tower Marine Speakers, 7.7" 280-watt Sports White Wake Tower Marine Speakers with CRGBW, you get marine speakers for a clearer and richer onboard audio system. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to manage compatibility, mounting, and practical use onboard.
⚡ Practical benefits
- One pair of wake tower speakers (based on your selection)
- 7.7" 280-watt sports white wake tower marine speakers with CRGBW
- Enjoy crystal-clear audio regardless of volume. Fusion Signature Series 3 wake tower speakers are perfect for providing the soundtrack to your activities on the water.
- Targeted for marine installations where speakers are exposed to moisture, vibrations, and changing temperatures.
- Can be combined with compatible Fusion stereos, amplifiers, and zone control.
- Allows for building a uniform audio solution in multiple areas of the boat.
⛵ Suitable for
- Cockpit, saloon, cabin, or flybridge
- New audio installations and replacement of existing marine speakers
- Boat owners who want assistance with impedance, power, placement, and cable dimensioning
📊 Specifications
| Product/model | Garmin Fusion® Signature Series 3 Wake Tower Marine Speakers, 7.7" 280-watt Sports White Wake Tower Marine Speakers with CRGBW |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter x depth) | 224 x 385 mm 196 x 328 mm 176 x 304 mm |
| LED load current at 14.4 V DC | 300 mA |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | SG-FL882SPW / SG-FL882SPC / SG-F882W: 8.8" |
| Max power (watts) | Monoblock: 2250 W 7.7": 280 W 6.5": 230 W |
| RMS power (watts) | 8.8" speaker: 130 W 7.7": 100 W 6.5": 75 W |
| Sensitivity (1 W / 1 m) | 8.8" speaker: 91 dB 7.7": 91 dB 6.5": 90 dB |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 8.8": 25-140 W/channel 7.7": 25-120 W/channel 6.5": 30-90 W/channel |
| LED lighting | Yes – CRGBW |
| LED supply voltage | 10.8-16 VDC |
| Operating temperature | 0° to 50° C |
| Voice coil diameter | 8.8": 1.5" 7.7": 1.4" 6.5": 1.2" |
| Tweeter type | Silk-dome |
| Compass-safe distance | 8.8": 412 cm 7.7": 358 cm 6.5": 310 cm |
📦 Package contents
- Scope of delivery may vary between models and variants. Please check the official documentation for the specific variant before ordering.
🔧 Installation and compatibility
Check cutout dimensions, mounting depth, impedance, RMS power, and cable dimension. For outdoor mounting, the placement must suit the product’s water rating and allow for proper drainage.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Garmin Fusion® Signature Series 3 Wake Tower Marine Speakers, 7.7" 280-watt Sports White Wake Tower Marine Speakers with CRGBW. You are welcome to send photos and model numbers, and I will help with the assessment.
