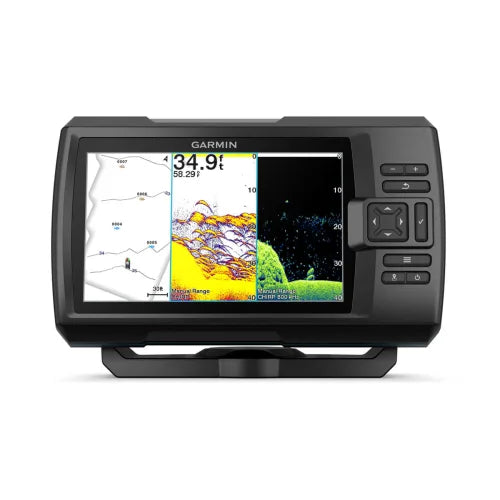

Garmin STRIKER™ Vivid 7cv with GT20-TM transducer
Item no. GAR-10272
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Vægt: 1,7 lbs (0,8 kg)
- Strømforsyning: 12 til 20 Vdc
- Typisk strømforbrug: 0.55 A
What is included
- Vippe-/drejebeslag
Technical details
| Vægt | 1,7 lbs (0,8 kg) |
|---|---|
| Strømforsyning | 12 til 20 Vdc |
| Typisk strømforbrug | 0.55 A |
| Maks. strømforbrug | 1.5 A |
| Strømforbrug | 6.6 |
| Produkt/model | Garmin STRIKER™ Vivid 7cv med GT20-TM transducer |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 9,3" x 5,5" x 2,3" (23,5 x 14,0 x 5,8 cm) |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WVGA farver |
| Displaystørrelse, BxH | 3.4" x 6.1" (8.6 x 15.4 cm)7.0" diag (17.8 cm) |
| Displayopløsning, BxH | 800 x 480 pixels |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Built-in |
| Understøttede frekvenser | Traditionel: 50/77/200 kHz CHIRP (mellem og høj) ClearVü: 260/455/800 kHz |
| Waypoints/favoritter/positioner | 5000 |
| Ruter | 100 |
| 4-benede transducerporte | 1 |
| Monteringsmuligheder | flush, tilt/swivel |
| Supplerende knapbetjening | Knapbetjent |
| Sporpunkter | 50,000 |
| Løbebaner | 50 |
| Sendestyrke | 500 W (RMS) |
| Modelserie | STRIKER |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin STRIKER™ Vivid 7cv med GT20-TM transducer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin STRIKER™ Vivid 7cv with GT20-TM transducer – developed for life on board
With the Garmin STRIKER™ Vivid 7cv with GT20-TM transducer, you get a chartplotter or navigation component to consolidate charts, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical benefits
- Variant includes transducer if stated in the product name
- One 4-pin transducer port
- GT20-TM transducer
- Provides a comprehensive overview of navigation and compatible data from the boat's other electronics.
- Can be integrated into a larger Garmin system, including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where screens, networks, and sensors work together.
⛵ Suitable for
- Motorboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades to existing Garmin systems
- Boat owners who want assistance with charts, transducers, networks, and compatibility
📊 Specifications
| Product/model | Garmin STRIKER™ Vivid 7cv with GT20-TM transducer |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm) |
| Weight | 1.7 lbs (0.8 kg) |
| Water rating | IPX7 |
| Display type | WVGA color |
| Display size, WxH | 3.4" x 6.1" (8.6 x 15.4 cm) 7.0" diag (17.8 cm) |
| Display resolution, WxH | 800 x 480 pixels |
| Power supply | 12 to 20 Vdc |
| Typical current draw | 0.55 A |
| Max. current draw | 1.5 A |
| Power consumption | 6.6 |
| Traditional sonar (dual frequency/beam) | Built-in |
| Supported frequencies | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz |
| Waypoints/favorites/locations | 5000 |
| Routes | 100 |
| 4-pin transducer ports | 1 |
| Mounting options | flush, tilt/swivel |
| Additional button control | Button operated |
| Track points | 50,000 |
| Tracks | 50 |
| Transmit power | 500 W (RMS) |
📦 In the box
- Tilt/swivel mount
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, chart type, and required network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Garmin STRIKER™ Vivid 7cv with GT20-TM transducer. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
