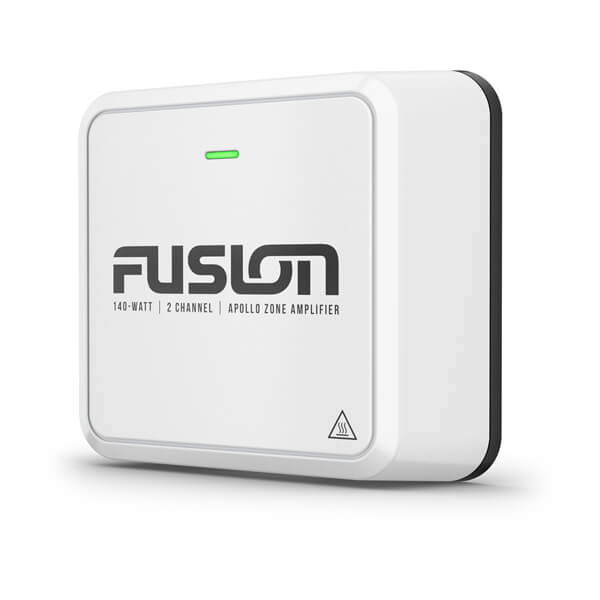

Garmin Fusion® Apollo™ marine amplifiers, zone marine amplifier
Tilpas forstærkningen til bådens højttalere og lydzoner.
- Driver kompatible højttalere eller subwoofere med de angivne kanaler.
- Fysiske mål (højde): Monoblok/4-/6-/8-kanals: 180 mm (7,06")Zone: 100 mm (3,94")
- Fysiske mål (bredde): Monoblok/4-kanals: 235 mm (9,25")6-kanals: 297 mm (11,69") 8-kanals: 359 mm (14,13")Zone: 100 mm (3,94")
- Fysiske mål (dybde): Monoblok/4-/6-/8-kanals: 45 mm (1,75")Zone: 40 mm (1,57")
What is included
- Ét monteringsbeslag
- Fire 8-gauge, selvskærende rundhovedskruer (til monteringsbeslag)
- Monteringsskabelon
- To højttalerstik med adaptere med høj effekt
- Tre højttalerstik med højeffektive adaptere
Technical details
| Fysiske mål (højde) | Monoblok/4-/6-/8-kanals: 180 mm (7,06")Zone: 100 mm (3,94") |
|---|---|
| Fysiske mål (bredde) | Monoblok/4-kanals: 235 mm (9,25")6-kanals: 297 mm (11,69") 8-kanals: 359 mm (14,13")Zone: 100 mm (3,94") |
| Fysiske mål (dybde) | Monoblok/4-/6-/8-kanals: 45 mm (1,75")Zone: 40 mm (1,57") |
| Min. kobberstrøms-/jordledningsmåler | Bussmann™ BK/AMI-030 30 A hurtigtvirkende |
| Vægt | Monoblok/4-kanals: 2,2 kg (4,85 lbs)6-kanals: 2,7 kg (5,95 lbs) 8-kanals: 3,15 kg (6,94 lbs)Zone: 460 g (1,01 lbs) |
| Strømforbrug (standby) | Monoblok/4-/6-/8-kanals: < 5 mA ved 14,4 V indgangZone: < 1 mA ved 14,4 V indgang |
| Strømforbrug (maksimal) | Monoblok: 87 A4-kanals: 53 A 6-kanals: 78 A8-kanals: 104 A Zone: 10 A |
| Nominel kontinuerlig (RMS) effekt (14,4 V indgang ved 4 ohm < 1 % THD) | Monoblok: 650 W x 14-Kanal: 150 W x 4/580 x 2 (broforbundet) 6-Kanal: 150 W x 6/580 x 3 (broforbundet)8-Kanal: 150 W x 8/580 x 4 (broforbundet) Zone: 20 W x 2 |
| Nominel kontinuerlig (RMS) effekt (14,4 V indgang ved 2 ohm < 1 % THD) | Monoblok: 1100 W x 14-Kanal: 290 W x 4 6-Kanal: 290 W x 68-Kanal: 290 W x 8 Zone: 30 W x 2 |
| Indgangsspændingsområde ved RCA-indgange | Monoblok: 2,15 V RMS4-/6-/8-kanals: 1,3 V RMS Zone: 0,45 V RMS |
| Produkt/model | Garmin Fusion® Apollo™ marineforstærkere, zonemarineforstærker |
| Producent | Fusion |
| Frekvensrespons (+0, -1 dB) | 20 Hz-20 kHz |
| Kanaler | Monoblok/4/6/8/Zone |
| Vand- og støvklassifikation | Monoblok/4-/6-/8-kanals: IPX2Zone: IPX7 |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Forstærkerklasse | Klasse D |
| Indgangsfølsomhed ved RCA-indgange | Monoblok: 2,15 V RMS4-/6-/8-kanals: 1,3 V RMS Zone: 0,45 V RMS |
| Indgangsmodstand | Monoblok/4-/6-/8-kanals: 22 kΩZone: 9 kΩ |
| Sikkerhedskredse | Omvendt spændingIndgangsunder-/overspænding Over temperaturUdgangskortslutning |
| Modelserie | Apollo |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Match RMS-effekt, impedans, kanaler, indgangssignal, sikringer og køling.
Installation og kompatibilitet
Kontrollér forsyningsspænding, sikringsstørrelse, kabeldimension, jordforbindelse, antal kanaler, højttalerimpedans og ventilationsforhold. Planlæg strøm- og signalkabler, så støj og spændingsfald begrænses.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Fusion® Apollo™ marineforstærkere, zonemarineforstærker bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Fusion® Apollo™ marine amplifiers, zone marine amplifier – developed for life on board
With Garmin Fusion® Apollo™ marine amplifiers, zone marine amplifier, you get a marine amplifier to drive speakers and subwoofers with the power your audio system requires. It is an obvious choice when the equipment must function as a well-integrated part of the boat's overall installation, and you want control over compatibility, mounting, and practical use on board.
⚡ Practical benefits
- One Apollo monoblock amplifier
- Important safety and product information (ISPI)
- One Apollo 4-channel amplifier
- Allows for matching speakers and subwoofers with appropriate and stable power.
- Can be included in multi-zone installations together with compatible Fusion stereos.
- Is relevant when the audio system needs to play cleaner and with more headroom than the stereo's built-in output stage can deliver.
⛵ Suitable for
- Larger audio installations with multiple speakers or subwoofers
- Upgrades where existing stereo needs more power
- Boat owners who want help with channel distribution, impedance, fusing, and cable sizing
📊 Specifications
| Product/model | Garmin Fusion® Apollo™ marine amplifiers, zone marine amplifier |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (height) | Monoblock/4-/6-/8-channel: 180 mm (7.06")Zone: 100 mm (3.94") |
| Physical dimensions (width) | Monoblock/4-channel: 235 mm (9.25")6-channel: 297 mm (11.69") 8-channel: 359 mm (14.13")Zone: 100 mm (3.94") |
| Physical dimensions (depth) | Monoblock/4-/6-/8-channel: 45 mm (1.75")Zone: 40 mm (1.57") |
| Min. copper power/ground wire gauge | Bussmann™ BK/AMI-030 30 A fast-acting |
| Weight | Monoblock/4-channel: 2.2 kg (4.85 lbs)6-channel: 2.7 kg (5.95 lbs) 8-channel: 3.15 kg (6.94 lbs)Zone: 460 g (1.01 lbs) |
| Power consumption (standby) | Monoblock/4-/6-/8-channel: < 5 mA @ 14.4 V inputZone: < 1 mA @ 14.4 V input |
| Power consumption (maximum) | Monoblock: 87 A4-channel: 53 A 6-channel: 78 A8-channel: 104 A Zone: 10 A |
| Frequency response (+0, -1 dB) | 20 Hz-20 kHz |
| Channels | Monoblock/4/6/8/Zone |
| Water and dust rating | Monoblock/4-/6-/8-channel: IPX2Zone: IPX7 |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Amplifier class | Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 ohms < 1% THD) | Monoblock: 650 W x 14-Channel: 150 W x 4/580 x 2 (bridged) 6-Channel: 150 W x 6/580 x 3 (bridged)8-Channel: 150 W x 8/580 x 4 (bridged) Zone: 20 W x 2 |
| Rated continuous (RMS) power (14.4 V input @ 2 ohms < 1% THD) | Monoblock: 1100 W x 14-Channel: 290 W x 4 6-Channel: 290 W x 68-Channel: 290 W x 8 Zone: 30 W x 2 |
| Input sensitivity at RCA inputs | Monoblock: 2.15 V RMS4-/6-/8-channel: 1.3 V RMS Zone: 0.45 V RMS |
| Input voltage range at RCA inputs | Monoblock: 2.15 V RMS4-/6-/8-channel: 1.3 V RMS Zone: 0.45 V RMS |
| Input impedance | Monoblock/4-/6-/8-channel: 22 kΩZone: 9 kΩ |
| Safety circuits | Reverse voltageInput under-/over-voltage Over temperatureOutput short circuit |
📦 Package contents
- One mounting bracket
- Four 8-gauge, self-tapping round-head screws (for mounting bracket)
- Mounting template
- Two speaker connectors with high-power adapters
- Three speaker connectors with high-power adapters
🔧 Installation and compatibility
Check supply voltage, fuse size, cable dimension, grounding, number of channels, speaker impedance, and ventilation conditions. Plan power and signal cables to limit noise and voltage drops.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions be checked before ordering Garmin Fusion® Apollo™ marine amplifiers, zone marine amplifier. You are welcome to send photos and model numbers, and I will help with the assessment.
