Garmin

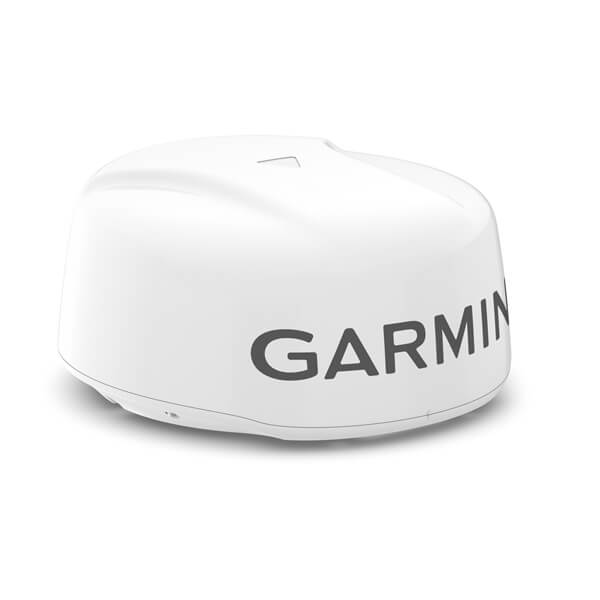

GARMIN GMR Fantom™ 18x radome, white
Supplér udsynet fra styrepladsen med radarbilledet.
- Viser radarmål via et kompatibelt display og netværk.
- MARPA-målsporing (undgå kollisioner): Ja (kræver kurssensor, sælges separat)
- Vægt: 18x: 14,0 lbs 24x: 17,40 lbs
- Antennelængde: 18x: 17″ (43,18 cm) 24x: 23″ (58,42 cm)
What is included
- Strømkabel (15 m/49,21 fod)
- Netværkskabel (15 m/49,21 fod)
- Adapterkabel til Garmin marinenetværk (lille stik til stort stik)
- Monteringsudstyr og -skabelon
Technical details
| MARPA-målsporing (undgå kollisioner) | Ja (kræver kurssensor, sælges separat) |
|---|---|
| Vægt | 18x: 14,0 lbs 24x: 17,40 lbs |
| Antennelængde | 18x: 17″ (43,18 cm) 24x: 23″ (58,42 cm) |
| Strålebredde | 18x: 5,20° vandret, 25° lodret 24x: 3,70° vandret, 25° lodret |
| Strømforsyning | 10-32 V DC |
| Strømforbrug, standby | 4 W |
| Maks. strømforbrug, transmission, strømbesparelse | 24 W |
| Maks. strømforbrug, transmission, normal tilstand | 33 W |
| Produkt/model | GARMIN GMR Fantom™ 18x radome, hvid |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 18x: 20″ x 9,80″ (50,80 x 24,90 cm) 24x: 25,40″ x 9,80″ (64,50 cm x 24,90 cm) |
| Vandtæthedsklasse | IPX7 |
| Maks. rækkevidde | 48 NM |
| Rotationshastighed | Op til 60 omdr./min., afhængigt af indstillinger |
| Min. rækkevidde | 6 meter |
| Radartype | Radome |
| Sendestyrke | 50 W |
| DOBBELT RÆKKEVIDDE | Ja |
| Radar overlay | Ja |
| Auto Gain | Dynamisk |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
| Farve | Hvid |
Installation and choosing accessories
Kontrollér displaykompatibilitet, strøm, monteringsplads og kabelpakke; radar supplerer, men erstatter ikke udkig.
Installation og kompatibilitet
Kontrollér monteringshøjde, frit udsyn, sikkerhedsafstande, strømforsyning, sikring og netværksforbindelse. Placeringen bør planlægges, så radarstrålen ikke blokeres unødigt af mast, instrumenter eller andet udstyr.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før GARMIN GMR Fantom™ 18x radome, hvid bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
GARMIN GMR Fantom™ 18x radome, white – designed for life on board
With the GARMIN GMR Fantom™ 18x radome, white, you get marine radar for better situational awareness and an overview around your boat. It is an obvious choice when the equipment needs to function as a well-thought-out part of the boat's overall installation, and you want to be in control of compatibility, mounting, and practical use on board.
⚡ Practical benefits
- GMR Fantom 18x or 24x dome radar (depending on the selected model)
- These incredibly powerful 18″ and 24″ dome radars have both intelligence and style, and are available in a black version and with an output power of 50 W.
- GMR Fantom creates the power. A full fifty watts, in fact.
- Can improve the overview when sailing in darkness, rain, fog, and dense traffic.
- Can be integrated with compatible Garmin chartplotters so that radar and map data can be used together.
- Is particularly relevant on boats where safe navigation in changing visibility conditions is prioritized.
⛵ Suitable for
- Coastal sailing and longer trips with a risk of limited visibility
- Motorboats and sailboats with a compatible Garmin chartplotter
- Boat owners who want help with placement, networking, and power supply
📊 Specifications
| Product/model | GARMIN GMR Fantom™ 18x radome, white |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 18x: 20″ x 9.80″ (50.80 x 24.90 cm) 24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm) |
| MARPA target tracking (collision avoidance) | Yes (requires heading sensor, sold separately) |
| Weight | 18x: 14.0 lbs 24x: 17.40 lbs |
| Water rating | IPX7 |
| Power supply | 10-32 V DC |
| Power consumption, standby | 4 W |
| Max power consumption, transmit, power saving | 24 W |
| Max power consumption, transmit, normal mode | 33 W |
| Max range | 48 NM |
| Antenna length | 18x: 17″ (43.18 cm) 24x: 23″ (58.42 cm) |
| Rotation speed | Up to 60 RPM, depending on settings |
| Beam width | 18x: 5.20° horizontal, 25° vertical 24x: 3.70° horizontal, 25° vertical |
| Min range | 6 meters |
| Radar type | Radome |
| Transmit power | 50 W |
| DUAL RANGE | Yes |
| Radar overlay | Yes |
| Auto Gain | Dynamic |
📦 In the box
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Adapter cable for Garmin Marine Network (small connector to large connector)
- Mounting hardware and template
🔧 Installation and compatibility
Check mounting height, clear view, safety distances, power supply, fuse, and network connection. The location should be planned so that the radar beam is not unnecessarily blocked by a mast, instruments, or other equipment.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions be checked before ordering the GARMIN GMR Fantom™ 18x radome, white. You are welcome to send photos and model numbers, and I will help with the assessment.
