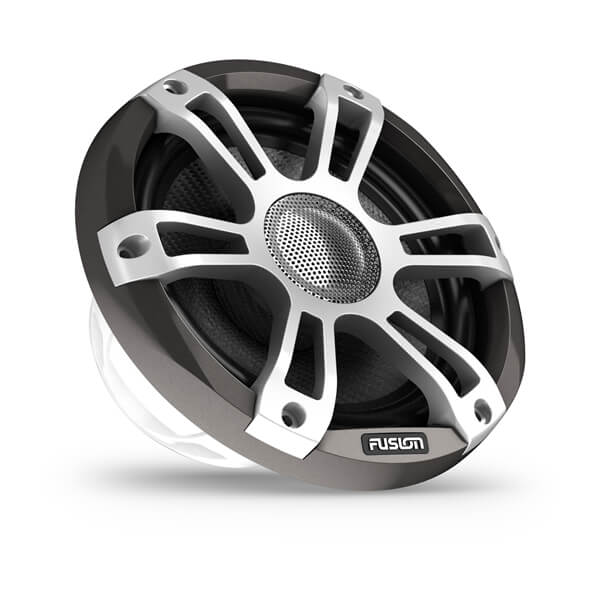

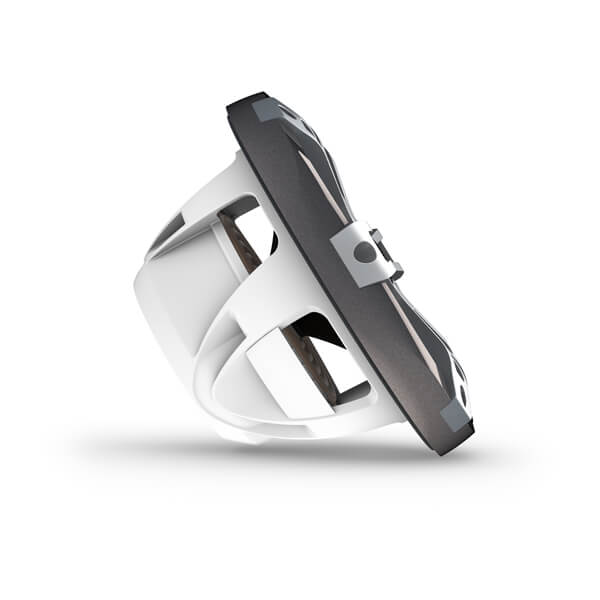

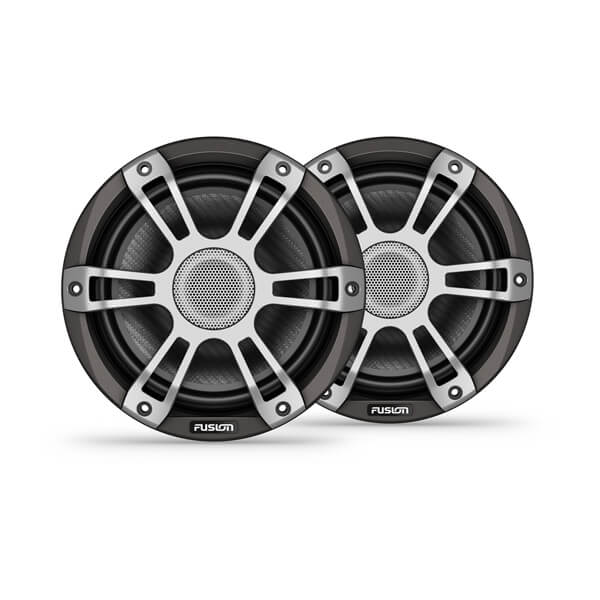

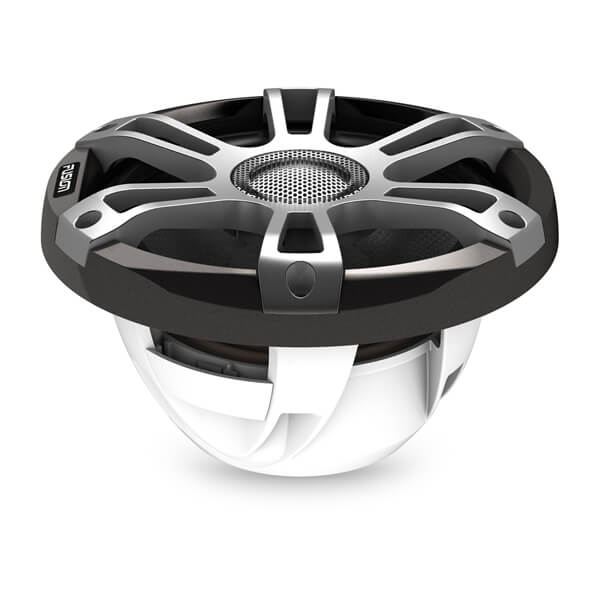

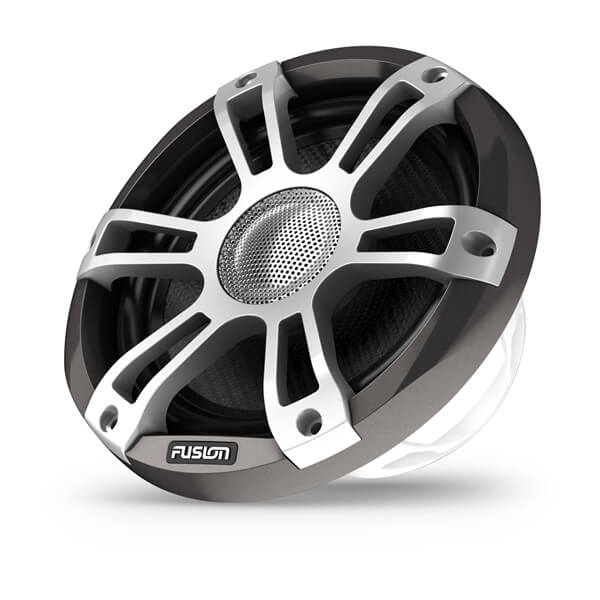

Garmin Fusion® Signature Series 3i Marine Speakers, 7.7" 280-Watt Sports Grey Coaxial Marine Speakers (pair)
Item no. FUS-10097
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- LED belastningsstrøm ved 14,4 V DC (maks.): 300 mA (kun udvalgte sportsmodeller)
- Kontinuerlig effekthåndtering (RMS): 6,5": 75 W 7,7": 100 W8,8": 130 W
- Anbefalet forstærkereffekt (RMS): Oversigt 6,5": 25-160 med kanal 7,7": 25-220 med kanal8,8": 30-300 med kanal
What is included
- 12 Phillips monteringsskruer i rustfrit stål, 4,2 mm x 40 mm (8 gauge x 1,6")
Technical details
| Fysiske mål (diameter) | 6,5" (Classic): 200 mm (7,87") 6,5" (Sport): 176 mm (6,93")7,7" (Classic): 220 mm (8,66") 7,7" (Sport): 196 mm (7,72") 8,8" (Classic): 247 mm (9,75") 8,8" (Sport): 224 mm (8,82") |
|---|---|
| Fysiske mål (dybde) | 6,5" (Classic): 103 mm (4,06") 6,5" (Sport): 104,5 mm (4,11")7,7" (Classic): 109,5 mm (4,31") 7,7" (Sport): 111 mm (4,37") 8,8" (Classic): 131mm (5,16") 8,8" (Sport): 133mm (5,24") |
| Monteringsdiameter, frirum | 6,5": 136mm (5,35") 7,7": 156mm (6,14")8,8": 188mm (7,44") |
| Monteringsdybde, frirum | 6,5": 79 mm (3,11") 7,7": 86mm (3,39")8,8": 106mm (4,13") |
| LED belastningsstrøm ved 14,4 V DC (maks.) | 300 mA (kun udvalgte sportsmodeller) |
| Kontinuerlig effekthåndtering (RMS) | 6,5": 75 W 7,7": 100 W8,8": 130 W |
| Anbefalet forstærkereffekt (RMS) | Oversigt 6,5": 25-160 med kanal 7,7": 25-220 med kanal8,8": 30-300 med kanal |
| LED-forsyningsspænding | 10,8-16 VDC (kun udvalgte sportsmodeller) |
| Produkt/model | Garmin Fusion® Signature Series 3i Marinehøjttalere, 7,7" 280 watt Sports Grey koaksiale marinehøjttalere (sæt) |
| Producent | Fusion |
| Frekvensrespons (+/- 3 dB) | 6,5": 70 Hz-22 kHz 7,7": 60 Hz-22 kHz8,8": 50 Hz-20 kHz |
| Størrelser | 6,5"/7,7"/8,8" |
| Farve | Classic White, Sports White eller Sports Grey |
| Vand- og støvklassifikation | IP65 |
| Højttalertype | Koaksial |
| Følsomhed (SPL ved 1 W/1 m) | 6,5": 90 dB 7,7"/8,8": 91 dB |
| Nominel impedans | 4 Ω |
| LED-belysning | Ja - CRGBW (kun udvalgte sportsmodeller) |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | CURV® Cone Technology med gummikant |
| Diskanttype | Silk-dome |
| Sikkerhedsafstand for kompas | 6,5": 310 cm (122") 7,7": 358 cm (141")8,8": 412 cm (162") |
| Højttalerforbindelser | Ikke-tilsluttet kabel med vandtæt tovejsstik, 150mm (5,9") |
| LED-forbindelse | Ikke-tilsluttet kabel med vandtæt seksvejsstik, 150 mm (5,9") (kun udvalgte sportsmodeller) |
| Frontgitterfremspring | 6,5": 29 mm (1,14") 7,7": 29 mm (1,14")8,8": 31 mm (1,34") |
| Modelserie | Signature |
| Mærke | Garmin |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt og kabeldimension. Ved udvendig montering skal placeringen passe til produktets vandklassifikation og kunne afvandes korrekt.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Fusion® Signature Series 3i Marinehøjttalere, 7,7" 280 watt Sports Grey koaksiale marinehøjttalere (sæt) bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Fusion® Signature Series 3i Marine Speakers, 7.7" 280 Watt Sports Grey Coaxial Marine Speakers (Pair) – engineered for life on board
With the Garmin Fusion® Signature Series 3i Marine Speakers, 7.7" 280 Watt Sports Grey Coaxial Marine Speakers (Pair), you get marine speakers for a clearer and fuller audio system on board. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical Benefits
- One pair of speakers (based on your choice)
- 7.7" 280 watt Sports Grey coaxial marine speakers (pair)
- Challenge the elements. Signature Series 3i coaxial speakers deliver crystal-clear audio and can withstand the conditions like never before.
- Designed for marine installations where speakers are exposed to moisture, vibration, and changing temperatures.
- Can be combined with compatible Fusion stereos, amplifiers, and zone control.
- Makes it possible to build a uniform audio solution in multiple areas of the boat.
⛵ Suitable for
- Cockpit, salon, cabin, or flybridge
- New audio installations and replacement of existing marine speakers
- Boat owners who want help with impedance, power, placement, and cable dimensioning
📊 Specifications
| Product/model | Garmin Fusion® Signature Series 3i Marine Speakers, 7.7" 280 Watt Sports Grey Coaxial Marine Speakers (Pair) |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter) | 6.5" (Classic): 200 mm (7.87") 6.5" (Sport): 176 mm (6.93") 7.7" (Classic): 220 mm (8.66") 7.7" (Sport): 196 mm (7.72") 8.8" (Classic): 247 mm (9.75") 8.8" (Sport): 224 mm (8.82") |
| Physical dimensions (depth) | 6.5" (Classic): 103 mm (4.06") 6.5" (Sport): 104.5 mm (4.11") 7.7" (Classic): 109.5 mm (4.31") 7.7" (Sport): 111 mm (4.37") 8.8" (Classic): 131 mm (5.16") 8.8" (Sport): 133 mm (5.24") |
| LED load current at 14.4 V DC (max.) | 300 mA (selected sports models only) |
| Frequency response (+/- 3 dB) | 6.5": 70 Hz-22 kHz 7.7": 60 Hz-22 kHz 8.8": 50 Hz-20 kHz |
| Sizes | 6.5"/7.7"/8.8" |
| Color | Classic White, Sports White or Sports Grey |
| Water and dust rating | IP65 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 75 W 7.7": 100 W 8.8": 130 W |
| Sensitivity (SPL at 1 W/1 m) | 6.5": 90 dB 7.7"/8.8": 91 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | Overview 6.5": 25-160 per channel 7.7": 25-220 per channel 8.8": 30-300 per channel |
| LED lighting | Yes - CRGBW (selected sports models only) |
| LED supply voltage | 10.8-16 VDC (selected sports models only) |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk-dome |
| Compass safe distance | 6.5": 310 cm (122") 7.7": 358 cm (141") 8.8": 412 cm (162") |
| Speaker connections | Flying lead with waterproof 2-way connector, 150 mm (5.9") |
| LED connection | Flying lead with waterproof 6-way connector, 150 mm (5.9") (selected sports models only) |
| Mounting diameter clearance | 6.5": 136 mm (5.35") 7.7": 156 mm (6.14") 8.8": 188 mm (7.44") |
| Mounting depth clearance | 6.5": 79 mm (3.11") 7.7": 86 mm (3.39") 8.8": 106 mm (4.13") |
| Front grille protrusion | 6.5": 29 mm (1.14") 7.7": 29 mm (1.14") 8.8": 31 mm (1.34") |
📦 In the box
- 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6")
🔧 Installation and compatibility
Check cutout dimensions, mounting depth, impedance, RMS power, and cable dimensions. For exterior mounting, the placement must suit the product's water rating and allow for proper drainage.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that the model, power, connectors, and mounting conditions are checked before ordering the Garmin Fusion® Signature Series 3i Marine Speakers, 7.7" 280 Watt Sports Grey Coaxial Marine Speakers (Pair). You are welcome to send photos and model numbers, and I will help with the assessment.
