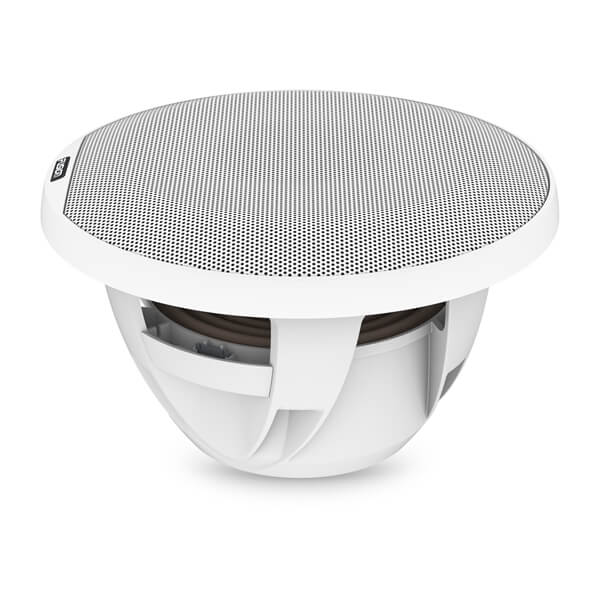

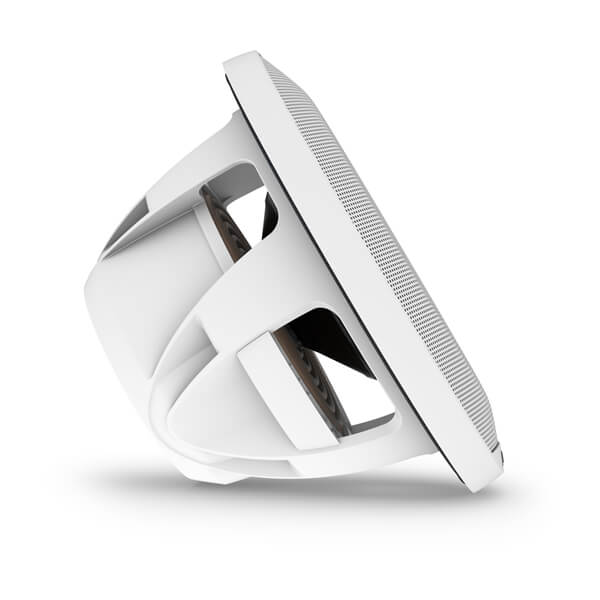

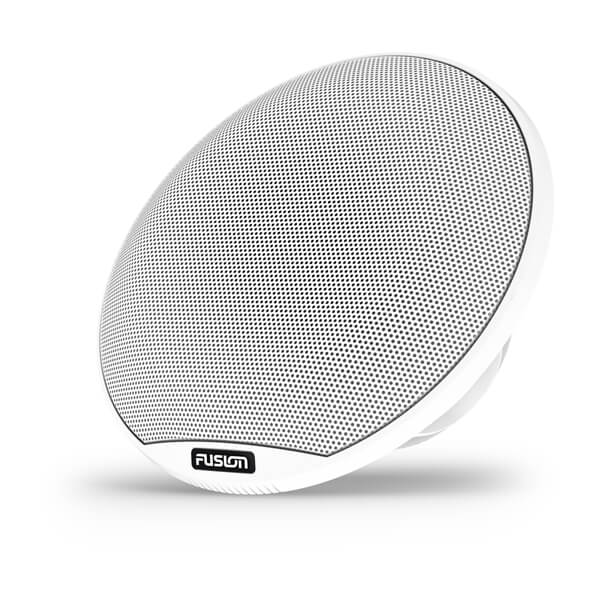

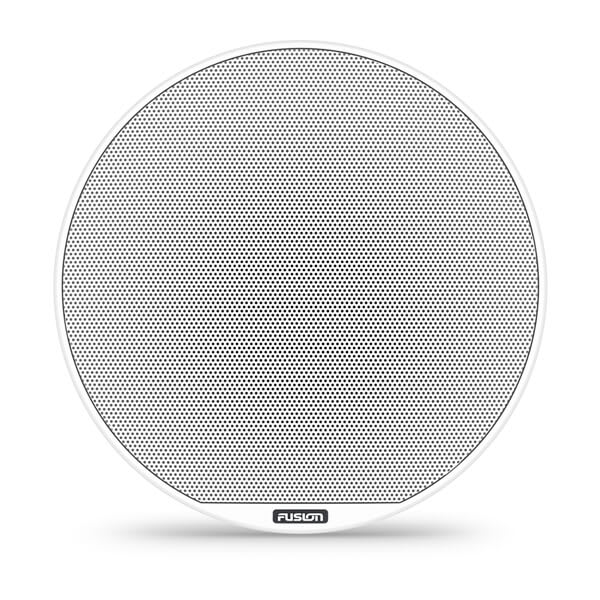

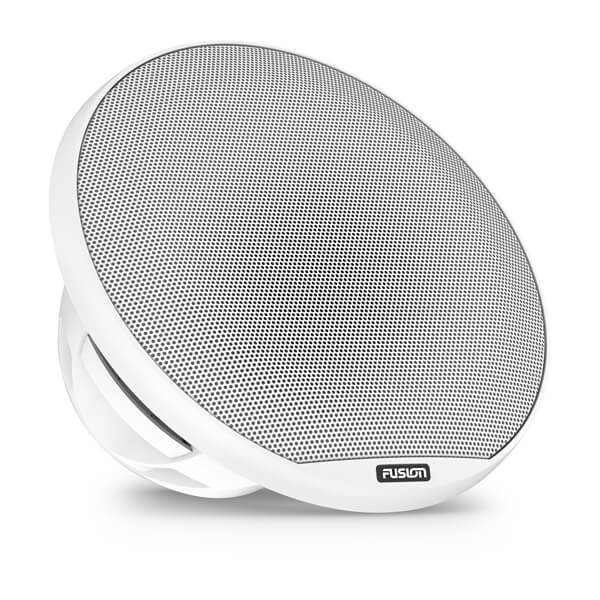

Garmin Fusion® Signature Series 3i marine subwoofers, 10" 600 watt Classic White marine subwoofer
Giv musikken plads om bord, når kursen er sat og der er tid til at nyde turen.
- Til lydgengivelse som del af et kompatibelt lydsystem.
- Fysiske mål (diameter): 10" (Classic/Sporta): 275 mm (10,83") 12" (Sporta): 356 mm (14,02")
- Fysiske mål (dybde): 10" (Classic): 162mm (6,38") 10" (Sport): 172mm (6,77")12" (Sport): 254mm (10")
- LED belastningsstrøm ved 14,4 V DC (maks.): 300 mA (kun udvalgte sportsmodeller)
What is included
- 6 Phillips monteringsskruer i rustfrit stål, 4,8 mm x 50 mm (10 gauge x 2")
- Vandtæt kabelsamling med 2-benet stik (5,9" (150 mm))
Technical details
| Fysiske mål (diameter) | 10" (Classic/Sporta): 275 mm (10,83") 12" (Sporta): 356 mm (14,02") |
|---|---|
| Fysiske mål (dybde) | 10" (Classic): 162mm (6,38") 10" (Sport): 172mm (6,77")12" (Sport): 254mm (10") |
| Vægt | 10" (Classic): 5,06 kg (11,2 lbs) 10" (Sports): 4,98 kg (11 lbs)10" (Sports) med CRGBW: 5,12 kg (11,3 lbs) 12" (Sports): 10,93 kg (24,1 lbs) |
| Monteringsdiameter, frirum | 10": 223mm (8,78") 12": 306mm (12,05") |
| Monteringsdybde, frirum | 10": 133 mm (5,24") 12": 207mm (8,15") |
| LED belastningsstrøm ved 14,4 V DC (maks.) | 300 mA (kun udvalgte sportsmodeller) |
| Kontinuerlig effekthåndtering (RMS) | 10": 300 W 12": 700 W |
| Anbefalet forstærkereffekt (RMS) | 10": 50-600 W 12": 200-1000 W |
| LED-forsyningsspænding | 10,8-16 VDC (kun udvalgte sportsmodeller) |
| Produkt/model | Garmin Fusion® Signature Series 3i marinesubwoofere, 10" 600 watt Classic White marinesubwoofer |
| Producent | Fusion |
| Frekvensrespons (+/- 3 dB) | 10": 30 Hz-2 kHz 12": 20 Hz-2 kHz |
| Størrelser | 10"/12" |
| Farve | 10": Classic White, Sports White eller Sports Grey12": Sports White eller Sports Grey |
| Vand- og støvklassifikation | IP65 |
| Højttalertype | Subwoofer |
| Følsomhed (SPL ved 1 W/1 m) | 86 dB |
| Nominel impedans | 4 Ω |
| LED-belysning | Ja - CRGBW (kun udvalgte sportsmodeller) |
| Driftstemperatur | 0° til 50° C (32° til 122° F) |
| Kegle materiale | Polypropylenkegle med gummikant |
| Sikkerhedsafstand for kompas | 10": 520 cm (205") 12": 460 cm (181") |
| Højttalerforbindelser | Ikke-tilsluttet kabel med vandtæt tovejsstik, 150mm (5,9") |
| LED-forbindelse | Ikke-tilsluttet kabel med vandtæt seksvejsstik, 150 mm (5,9") (kun udvalgte sportsmodeller) |
| Frontgitterfremspring | 10": 42 mm (1,65") 12": 50 mm (1,97") |
| Modelserie | Signature |
| Mærke | Garmin |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Kontrollér impedans, RMS-effekt, monteringsdybde, udskæring og egnet forstærker. LED-funktioner kræver kompatibel styring.
Installation og kompatibilitet
Kontrollér udskæringsmål, monteringsdybde, impedans, RMS-effekt, anbefalet forstærkereffekt og kabeldimension. Ved udvendig montering skal vandklassifikation, tætning og afvanding passe til placeringen.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Fusion® Signature Series 3i marinesubwoofere, 10" 600 watt Classic White marinesubwoofer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Fusion® Signature Series 3i marine subwoofers, 10" 600-watt Classic White marine subwoofer – developed for life on board
With the Garmin Fusion® Signature Series 3i marine subwoofers, 10" 600-watt Classic White marine subwoofer, you get a marine subwoofer for more fullness and a deeper, more controlled bass reproduction in your boat's sound system. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- 10" 600-watt Classic White marine subwoofer
- Turn it up. Signature Series 3i subwoofers deliver drama with premium low frequencies to enhance your listening experience.
- Waterproof connectors provide simplified mounting and excellent protection.
- Developed for marine use, where moisture, vibrations, and mounting conditions place higher demands on the equipment.
- Can be combined with compatible Fusion and Garmin components, so speakers, amplifier, and control can be planned as one solution.
- Allows you to size the bass section according to the boat's size, listening area, and the amplifier that will drive the subwoofer.
⛵ Suitable for
- Cockpit, salon, or flybridge, where the sound experience needs more depth and fullness
- New sound installations and upgrades of compatible Fusion equipment
- Boat owners who want help with power, impedance, cable sizing, and placement
📊 Specifications
| Product/model | Garmin Fusion® Signature Series 3i marine subwoofers, 10" 600-watt Classic White marine subwoofer |
|---|---|
| Manufacturer | Fusion |
| Physical dimensions (diameter) | 10" (Classic/Sport): 275 mm (10.83") 12" (Sport): 356 mm (14.02") |
| Physical dimensions (depth) | 10" (Classic): 162mm (6.38") 10" (Sport): 172mm (6.77") 12" (Sport): 254mm (10") |
| Weight | 10" (Classic): 5.06 kg (11.2 lbs) 10" (Sports): 4.98 kg (11 lbs) 10" (Sports) with CRGBW: 5.12 kg (11.3 lbs) 12" (Sports): 10.93 kg (24.1 lbs) |
| LED load current at 14.4 V DC (max.) | 300 mA (select sports models only) |
| Frequency response (+/- 3 dB) | 10": 30 Hz-2 kHz 12": 20 Hz-2 kHz |
| Sizes | 10"/12" |
| Color | 10": Classic White, Sports White or Sports Grey 12": Sports White or Sports Grey |
| Water and dust classification | IP65 |
| Speaker type | Subwoofer |
| Continuous power handling (RMS) | 10": 300 W 12": 700 W |
| Sensitivity (SPL at 1 W/1 m) | 86 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 10": 50-600 W 12": 200-1000 W |
| LED lighting | Yes - CRGBW (select sports models only) |
| LED supply voltage | 10.8-16 VDC (select sports models only) |
| Operating temperature | 0° to 50° C (32° to 122° F) |
| Cone material | Polypropylene cone with rubber surround |
| Compass safety distance | 10": 520 cm (205") 12": 460 cm (181") |
| Speaker connections | Flying lead with waterproof 2-way connector, 150mm (5.9") |
| LED connection | Flying lead with waterproof 6-way connector, 150 mm (5.9") (select sports models only) |
| Mounting diameter, clearance | 10": 223mm (8.78") 12": 306mm (12.05") |
| Mounting depth, clearance | 10": 133 mm (5.24") 12": 207mm (8.15") |
| Front grille protrusion | 10": 42 mm (1.65") 12": 50 mm (1.97") |
📦 Package contents
- 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2")
- Waterproof cable assembly with 2-pin connector (5.9" (150 mm))
🔧 Installation and compatibility
Check cutout dimensions, mounting depth, impedance, RMS power, recommended amplifier power, and cable sizing. For exterior mounting, ensure water classification, sealing, and drainage are suitable for the location.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that model, power, connectors, and mounting conditions are checked before ordering the Garmin Fusion® Signature Series 3i marine subwoofers, 10" 600-watt Classic White marine subwoofer. You are welcome to send photos and model numbers, and I will help with the assessment.
