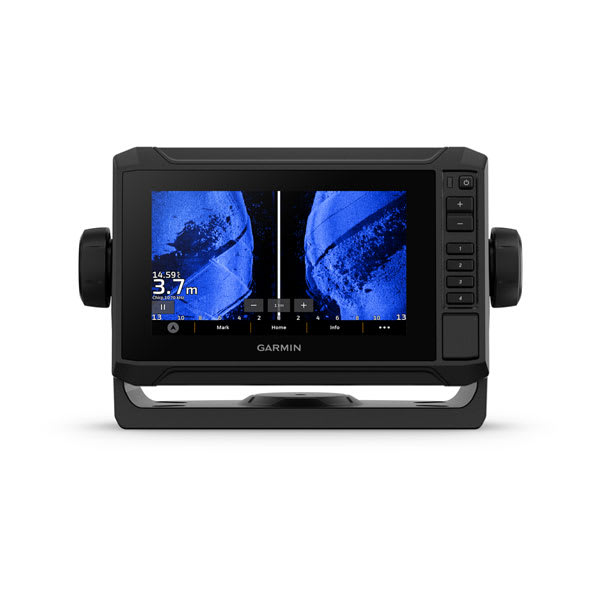

Garmin ECHOMAP UHD2 62sv Touch
Saml navigationens overblik dér, hvor du styrer båden.
- Viser de navigations- og instrumentdata, modellen og tilslutningerne understøtter.
- Vægt: 1,8 lbs (0,8 kg)
- Strømforsyning: 9 til 18 Vdc
- Typisk strømforbrug ved 12 V DC: 1,53 A
What is included
- ECHOMAP™ UHD2 6sv Beskyttende dæksel
- Vippebeslag med quick release-holder
- Strømkabel med gevind (2-benet)
- Vippe-/drejebeslag med quick release-holder
- Beskyttende dæksel
- 12-benet ekkolod til 8-benet transducerkabel
Technical details
| Vægt | 1,8 lbs (0,8 kg) |
|---|---|
| Strømforsyning | 9 til 18 Vdc |
| Typisk strømforbrug ved 12 V DC | 1,53 A |
| Maksimalt strømforbrug ved 12 V DC | 3,2 A |
| Maksimalt strømforbrug ved 10 V DC | 18,4 W |
| Udgangseffekt | 500 W |
| Strømkilde | dc-powered |
| Spænding | 12 V |
| Produkt/model | Garmin ECHOMAP UHD2 62sv Touch |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 8,1″ x 5,2″ x 2,6″ (20,6 x 13,1 x 6,7 cm) |
| Vandtæthedsklasse | IPX7 |
| Displaytype | WVGA, TN |
| Displaystørrelse, BxH | 5,4″ x 3,1″, 6,2″ (13,8 x 7,8 cm, 15,7 cm) |
| Displayopløsning, BxH | 800 x 480 pixel |
| Traditionelt ekkolod (dobbeltfrekvens/stråle) | Indbygget (1-kanals CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Indbygget 260/455/800/1000/1200 kHz |
| SideVü | Indbygget 260/455/800/1000/1200 kHz |
| NMEA 2000® porte | ja |
| Garmin Marine Network porte | 1 |
| Accepterer datakort | 1 microSD™ kort, 32 GB maksimal størrelse |
| Waypoints | 5.000 |
| Ruter | 100 |
| Receiver | 10 Hz |
| Kompatibel med ActiveCaptain | ja |
| 12-benede transducerporte | 1 |
| Monteringsmuligheder | Bøjle- eller planmonteret |
| Supplerende knapbetjening | Touchscreen med assisteret knapbetjening |
| Sporpunkter | 50,000 |
| Løbebaner | 50 gemte spor |
| Alle gode gange tre. Det vil sige tre ekkolodstyper | Garmin traditional, ClearVü™ og SideVü™ ekkolod. |
| Farve | black |
| Enhedsgrænseflade | ethernet-1bluetooth |
| Funktioner for marinenavigation | touchskaermnmea-2000vandtaet |
| Forbindelser | Ethernet / Bluetooth |
| Kapslingsklasse | IPX7 |
| Modelserie | ECHOMAP UHD2 |
| Mærke | Garmin |
Installation and choosing accessories
Kontrollér søkort, transducer, netværk, skærmmål og pakkens indhold. Funktioner kan kræve ekstra udstyr.
Installation og kompatibilitet
Kontrollér fysiske mål, monteringsdybde, strømforsyning, sikring, korttype og de ønskede netværksforbindelser. Afklar transducer, radar, AIS og øvrige sensorer inden kabeltræk og montering planlægges.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin ECHOMAP UHD2 62sv Touch bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin ECHOMAP UHD2 62sv Touch – developed for life on board
With the Garmin ECHOMAP UHD2 62sv Touch, you get a chartplotter or navigation component to consolidate charts, position, and relevant boat data at the helm. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- ECHOMAP UHD2 (unit varies depending on choice)
- The bright 6″, 7″, or 9″ touchscreen with auxiliary button control is user-friendly and easy to read.
- Good things come in threes. This means three types of sonar: Garmin traditional, ClearVü™, and SideVü™ sonar.
- Provides a comprehensive overview of navigation and compatible data from the boat's other electronics.
- Can be integrated into a larger Garmin system including radar, sonar, AIS, autopilot, and NMEA 2000.
- Makes it easier to plan a helm station where the screen, network, and sensors work together.
⛵ Suitable for
- Motorboats and sailboats where navigation needs to be easy to read
- New helm stations and upgrades of existing Garmin systems
- Boat owners who want assistance with charts, transducers, networking, and compatibility
📊 Specifications
| Product/model | Garmin ECHOMAP UHD2 62sv Touch |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 8.1″ x 5.2″ x 2.6″ (20.6 x 13.1 x 6.7 cm) |
| Weight | 1.8 lbs (0.8 kg) |
| Water rating | IPX7 |
| Display type | WVGA, TN |
| Display size, WxH | 5.4″ x 3.1″, 6.2″ (13.8 x 7.8 cm, 15.7 cm) |
| Display resolution, WxH | 800 x 480 pixels |
| Power supply | 9 to 18 Vdc |
| Typical current draw at 12 V DC | 1.53 A |
| Maximum current draw at 12 V DC | 3.2 A |
| Maximum power draw at 10 V DC | 18.4 W |
| Output power | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (1-channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| NMEA 2000® ports | yes |
| Garmin Marine Network™ ports | 1 |
| Accepts data cards | 1 microSD™ card, 32 GB max size |
| Waypoints | 5,000 |
| Routes | 100 |
| Receiver | 10 Hz |
| Compatible with ActiveCaptain | yes |
| 12-pin transducer ports | 1 |
| Mounting options | Bail or flush mount |
| Auxiliary button control | Touchscreen with assisted button control |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Three types of sonar | Garmin traditional, ClearVü™, and SideVü™ sonar. |
| Color | black |
| Device interface | ethernet-1 bluetooth |
| Marine navigation features | touchscreen nmea-2000 waterproof |
| Power source | dc-powered |
📦 In the box
- ECHOMAP™ UHD2 6sv protective cover
- Tilt mount with quick-release cradle
- Power cable with threaded connector (2-pin)
- Tilt/swivel mount with quick-release cradle
- Protective cover
- 12-pin sonar to 8-pin transducer adapter cable
🔧 Installation and compatibility
Check physical dimensions, mounting depth, power supply, fuse, chart type, and required network connections. Clarify transducer, radar, AIS, and other sensors before planning cable routing and installation.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Garmin ECHOMAP UHD2 62sv Touch. You are welcome to send photos and model numbers, and I will be happy to assist with the assessment.
