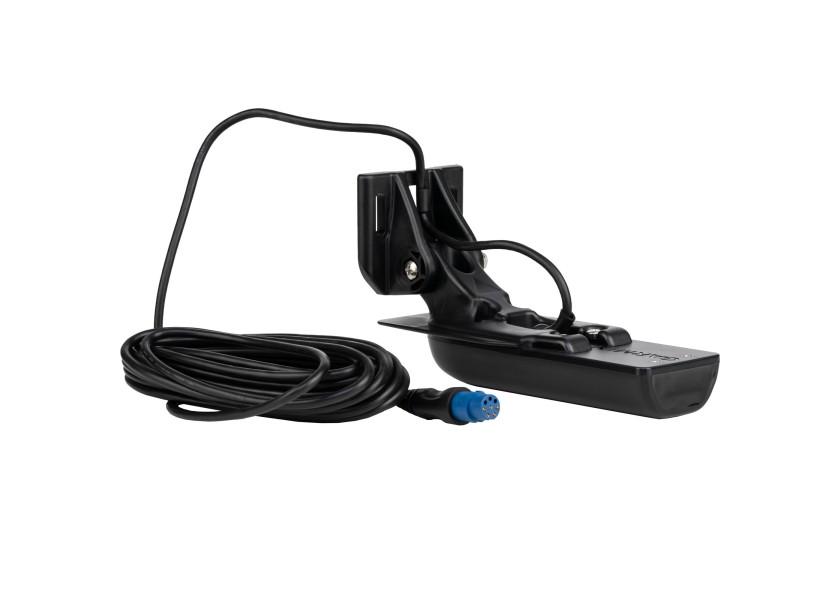

Garmin GT24UHD-TM Ultra High Definition Transom Transducer
Item no. GAR-10024
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Strålebredde: CHIRP: 24°-16°ClearVü: 0.94°x60° @ 800 kHz
- Kabellængde: 20 ft.
- Strøm: CHIRP Traditional 350 WClearVü 350 W
What is included
- Kompakt alt i ét-design, der er let at installere med medfølgende hæk- og elmotorbeslag

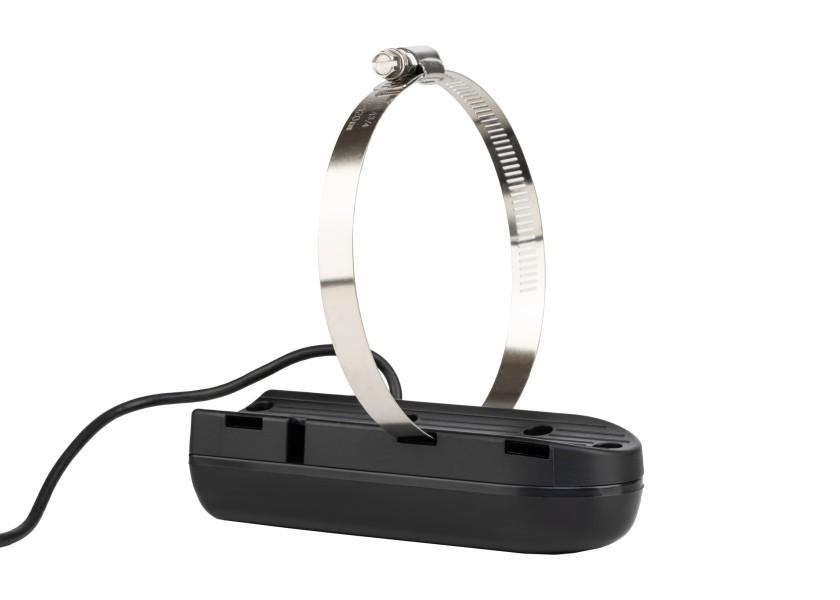

- Beslag til trollingmotor

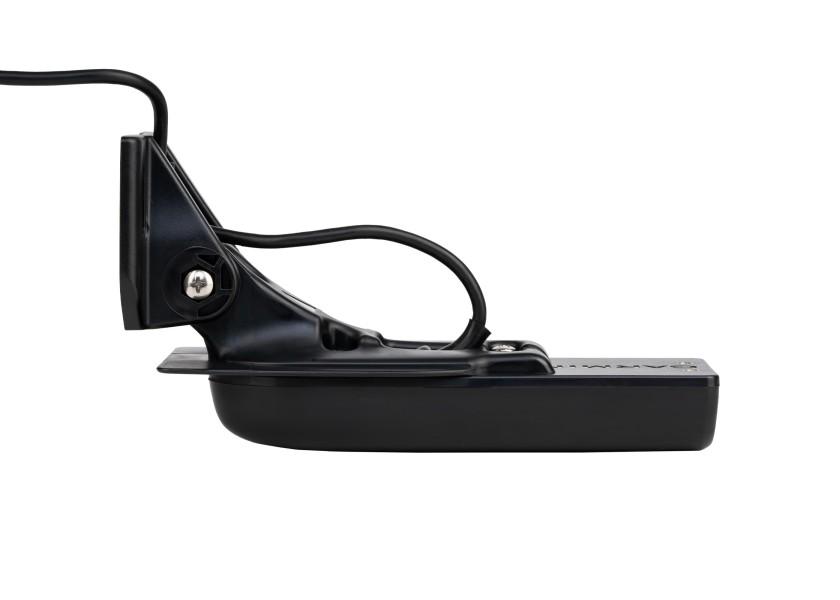

- Skrogbeslag: Disse er fastgjort til bagsiden (akterspejlet) af et bådskrog. Alternativt kan du bruge det medfølgende udstyr til at installere på en trollingmotor.
Technical details
| Strålebredde | CHIRP: 24°-16°ClearVü: 0.94°x60° @ 800 kHz |
|---|---|
| Maksimal dybde | CHIRP: 800 ft.ClearVü 200 ft. |
| Kabellængde | 20 ft. |
| Dybde/Hastighed/Temperatur | Depth and Temperature |
| Strøm | CHIRP Traditional 350 WClearVü 350 W |
| Effekt | Traditionel CHIRP: 350 WUltra HD ClearVü: 350 W |
| Produkt/model | Garmin GT24UHD-TM Ultra High Definition Transom Transducer |
| Producent | Garmin |
| Frekvens | CHIRP High Wide (150-240 kHz)UHD ClearVü CHIRP 800 kHz (760-880 kHz) |

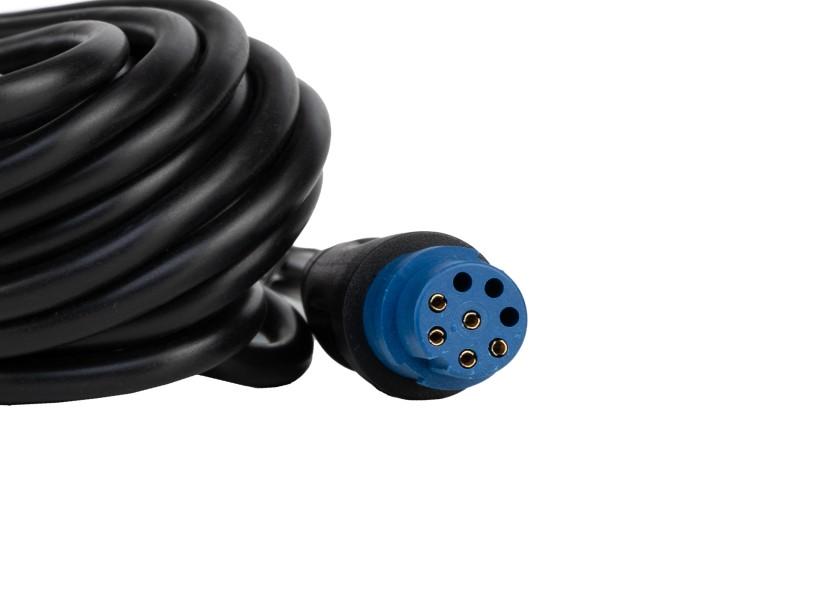

| Antal Ben | 8 |
| Understøttet skroghældning/hækvinkel | 0°-70° degree transom |
| Farve | black |
| Velegnet til lystfiskeritype | dybhav |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GT24UHD-TM Ultra High Definition Transom Transducer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GT24UHD-TM Ultra High Definition Transom Transducer – developed for life on board
With the Garmin GT24UHD-TM Ultra High Definition Transom Transducer, you get sonar or transducer equipment for displaying depth, bottom, fish, and structure under your boat. It is an obvious choice when the equipment needs to function as a well-thought-out part of the boat’s overall installation, and you want to manage compatibility, mounting, and practical use on board.
⚡ Practical benefits
- A single transducer provides the highest resolution ClearVü scanning sonar images available and an incredibly clear "high/wide" CHIRP traditional sonar
- High/wide CHIRP traditional sonar provides crystal-clear target separation and definition
- See incredibly detailed images of fish and structures up to 60 m (200 ft.) below your boat with 800 kHz ClearVü sonar
- Can provide a more detailed view of bottom conditions and underwater objects depending on the chosen technology.
- Can be integrated into a compatible Garmin sonar system together with a chartplotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth sounding, and a better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want help with transducer, frequency, connector, and mounting
📊 Specifications
| Product/model | Garmin GT24UHD-TM Ultra High Definition Transom Transducer |
|---|---|
| Manufacturer | Garmin |
| Power | CHIRP Traditional 350 W ClearVü 350 W |
| Frequency | CHIRP High Wide (150-240 kHz) UHD ClearVü CHIRP 800 kHz (760-880 kHz) |
| Beamwidth | CHIRP: 24°-16°ClearVü: 0.94°x60° @ 800 kHz |
| Maximum depth | CHIRP: 800 ft. ClearVü 200 ft. |
| Cable length | 20 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 8 |
| Supported deadrise/transom angle | 0°-70° degree transom |
| Power | Traditional CHIRP: 350 WUltra HD ClearVü: 350 W |
| Color | black |
| Suitable for fishing type | deep sea |

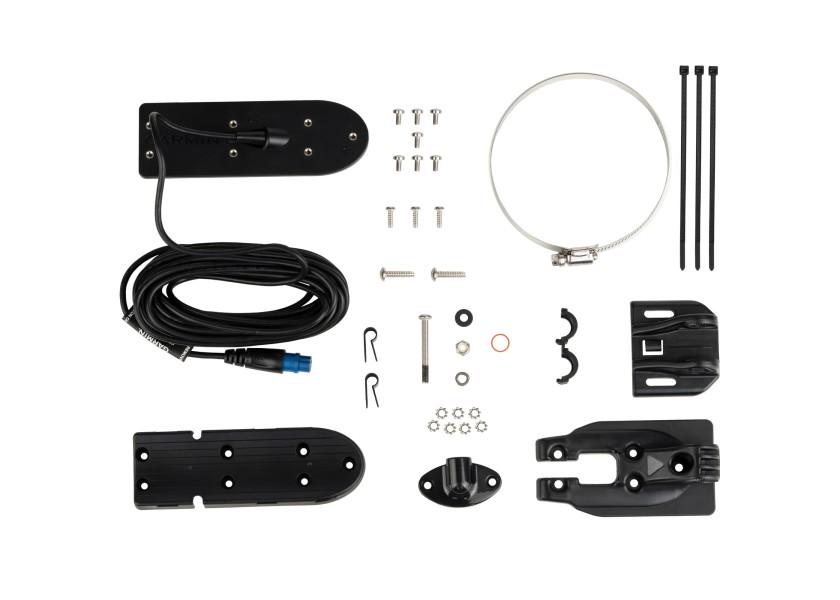

📦 Package contents
- Compact all-in-one design that is easy to install with the included transom and trolling motor mounts
- Trolling motor mount
- Transom mount: These are attached to the back (transom) of a boat hull. Alternatively, you can use the included equipment to install it on a trolling motor.
🔧 Installation and compatibility
Check the transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and fit the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that the model, power, connector, and mounting conditions are checked before ordering the Garmin GT24UHD-TM Ultra High Definition Transom Transducer. You are welcome to send photos and model numbers, and I will help with the assessment.
