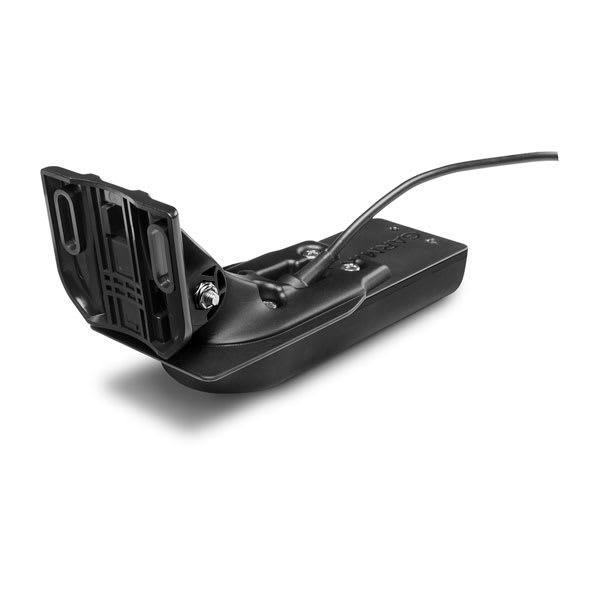

Garmin GT52HW-TM Transducer – 12-pin
Item no. GAR-10025
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Strålebredde: Traditionel: 24°-16°ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz
- Kabellængde: 20 ft.
- Strøm: Traditionel 250 WClearVü/SideVu 350 W
What is included
- Beslag til elmotor
- Skrogbeslag: Disse er fastgjort til bagsiden (akterspejlet) af et bådskrog. Alternativt kan du bruge det medfølgende udstyr til at installere på en trollingmotor.
Technical details
| Strålebredde | Traditionel: 24°-16°ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz |
|---|---|
| Maksimal dybde | Traditionel: 800 ft.ClearVü: 500 ft.SideVü: 500 ft. |
| Kabellængde | 20 ft. |
| Dybde/Hastighed/Temperatur | Dybde og temperatur |
| Strøm | Traditionel 250 WClearVü/SideVu 350 W |
| Produkt/model | Garmin GT52HW-TM Transducer – 12 ben |
| Producent | Garmin |
| Frekvens | CHIRP bredbånd (150-240 kHz)ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Antal Ben | 12-bens |
| Understøttet skroghældning/hækvinkel | 0°-70° hæk |
| Farve | black |
| Velegnet til lystfiskeritype | dybhav |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GT52HW-TM Transducer – 12 ben bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GT52HW-TM Transducer – 12-pin – developed for life on board
With the Garmin GT52HW-TM Transducer – 12-pin, you get sonar or transducer equipment for displaying depth, bottom, fish, and structures beneath the boat. It is an obvious choice when the equipment needs to function as a well-considered part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical benefits
- GT52HW-TM transducer
- Transducer accessory
- 77/200 kHz sonar sends a single ping at either 77 or 200 kHz
- Can provide a more detailed view of bottom conditions and underwater objects depending on the selected technology.
- Can be integrated into a compatible Garmin sonar system together with a plotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth measurement, and better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want help with transducer, frequency, connector, and mounting
📊 Specifications
| Product/model | Garmin GT52HW-TM Transducer – 12-pin |
|---|---|
| Manufacturer | Garmin |
| Power | Traditional 250 W ClearVü/SideVu 350 W |
| Frequency | CHIRP broadband (150-240 kHz) ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Beamwidth | Traditional: 24°-16°ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz |
| Maximum depth | Traditional: 800 ft. ClearVü: 500 ft. SideVü: 500 ft. |
| Cable length | 20 ft. |
| Depth/Speed/Temperature | Depth and temperature |
| Number of pins | 12-pin |
| Supported hull deadrise/transom angle | 0°-70° transom |
| Color | black |
| Suitable for fishing type | deep sea |
📦 Box contents
- Trolling motor mount
- Transom mount: These are attached to the back (transom) of a boat hull. Alternatively, you can use the included equipment to install on a trolling motor.
🔧 Installation and compatibility
Check the transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and match the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that the model, power, connector, and mounting conditions are checked before ordering the Garmin GT52HW-TM Transducer – 12-pin. You are welcome to send photos and model numbers, and I will help with the assessment.
