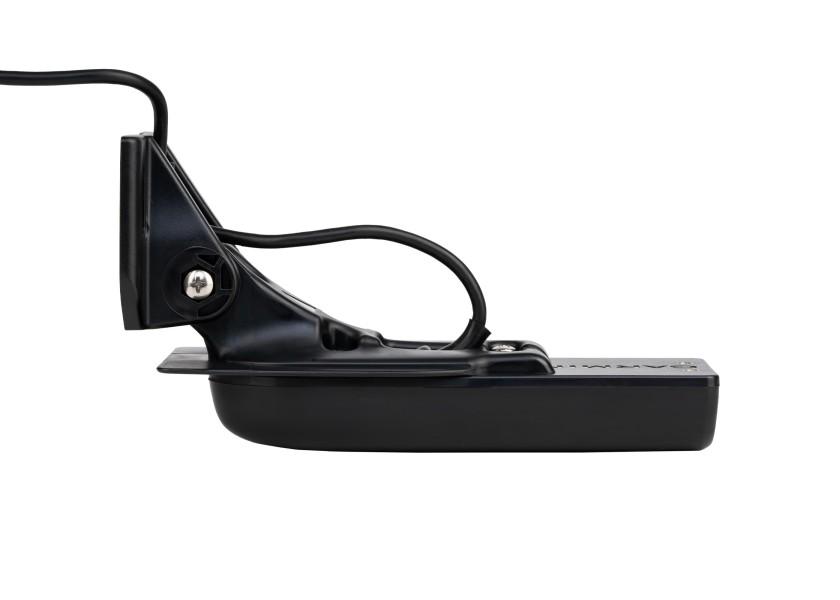

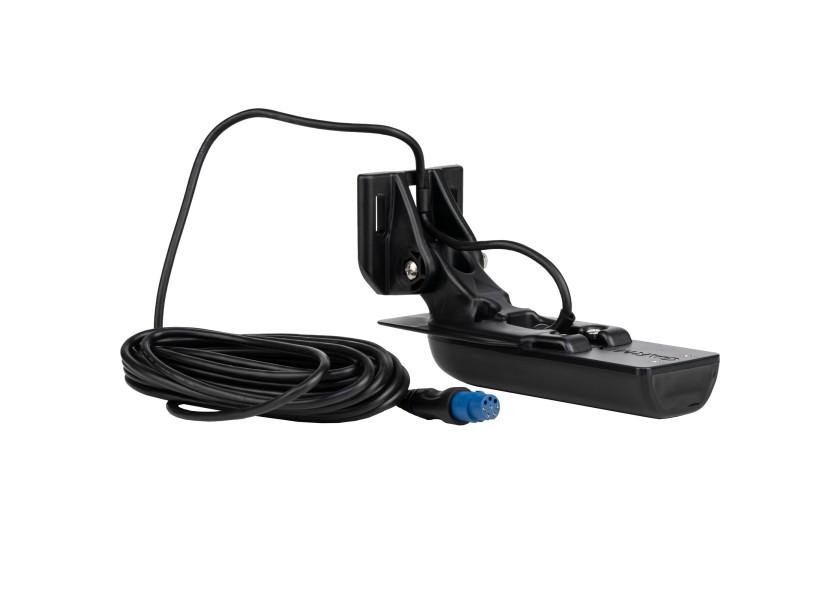

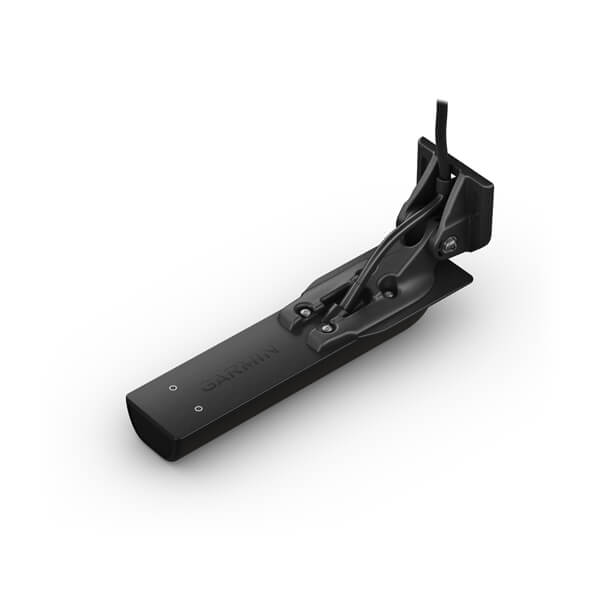

Garmin GT56UHD-TM Ultra High-Definition Transom Transducer
Item no. GAR-10027
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Kabellængde: 7,62 m
- Strøm: Traditionel 350 W, ClearVü/SideVü 500 W
What is included
- Skrogbeslag: Disse er fastgjort til bagsiden (akterspejlet) af et bådskrog. Alternativt kan du bruge det medfølgende udstyr til at installere på en trollingmotor.
Technical details
| Strålebredde | Traditional CHIRP: 24-16ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHzSideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
|---|---|
| Maksimal dybde | Traditionel: 244 m ferskvandClearVü: 122 mSideVü: 152 m |
| Kabellængde | 7,62 m |
| Dybde/Hastighed/Temperatur | Dybde og temperatur |
| Strøm | Traditionel 350 W, ClearVü/SideVü 500 W |
| Produkt/model | Garmin GT56UHD-TM Ultra High Definition Transom Transducer |
| Producent | Garmin |
| Frekvens | Traditionel høj/bred CHIRP (150-240 kHz)ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz) |
| Antal Ben | 12 |
| Understøttet skroghældning/hækvinkel | 0-70° graders hæk |
| Farve | black |
| Velegnet til lystfiskeritype | dybhav |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin GT56UHD-TM Ultra High Definition Transom Transducer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin GT56UHD-TM Ultra High Definition Transom Transducer – designed for life on board
With the Garmin GT56UHD-TM Ultra High Definition Transom Transducer, you get sonar or transducer equipment for displaying depth, the seabed, fish, and structures beneath the boat. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall setup, and you want full control over compatibility, mounting, and practical use on board.
⚡ Practical benefits
- GT56UHD-TM transducer
- GT56UHD-TH transducer
- 2 GT56UHD-TH transducers
- Can provide a more detailed picture of bottom conditions and underwater objects depending on the technology chosen.
- Can be part of a compatible Garmin sonar system together with a chartplotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and desired mounting method.
⛵ Suitable for
- Fishing, depth sounding, and better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want help with transducer, frequency, connector, and mounting
📊 Specifications
| Product/model | Garmin GT56UHD-TM Ultra High Definition Transom Transducer |
|---|---|
| Manufacturer | Garmin |
| Power | Traditional 350 W, ClearVü/SideVü 500 W |
| Frequency | Traditional High/Wide CHIRP (150-240 kHz) ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz) |
| Beamwidth | Traditional CHIRP: 24-16 ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| Maximum depth | Traditional: 244 m freshwater ClearVü: 122 m SideVü: 152 m |
| Cable length | 7.62 m |
| Depth/Speed/Temperature | Depth and temperature |

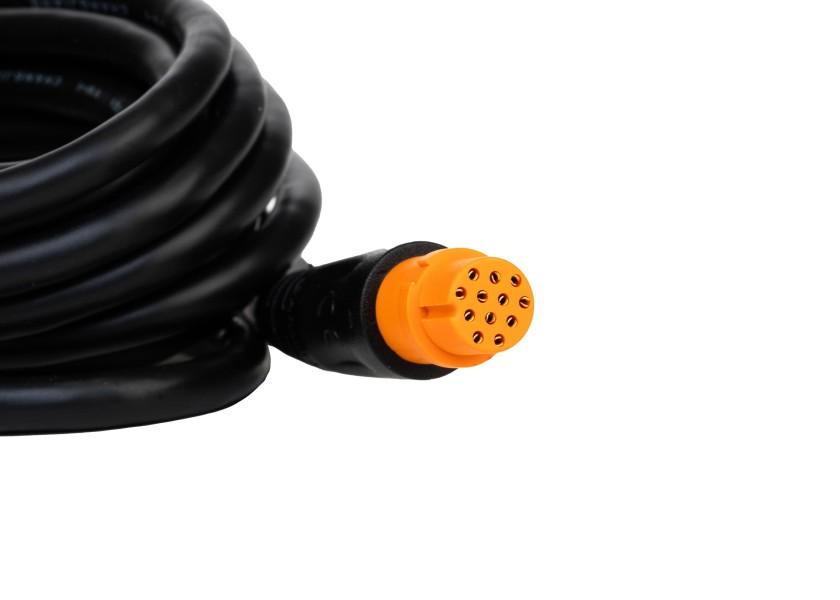

| Number of pins | 12 |
| Supported deadrise/transom angle | 0-70° degree transom |
| Color | black |
| Suitable for fishing type | deep sea |

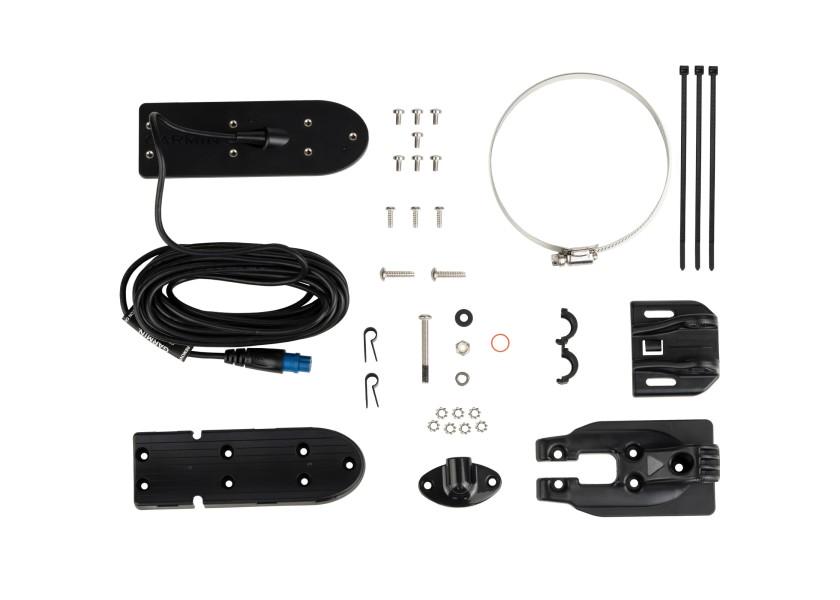

📦 Package contents

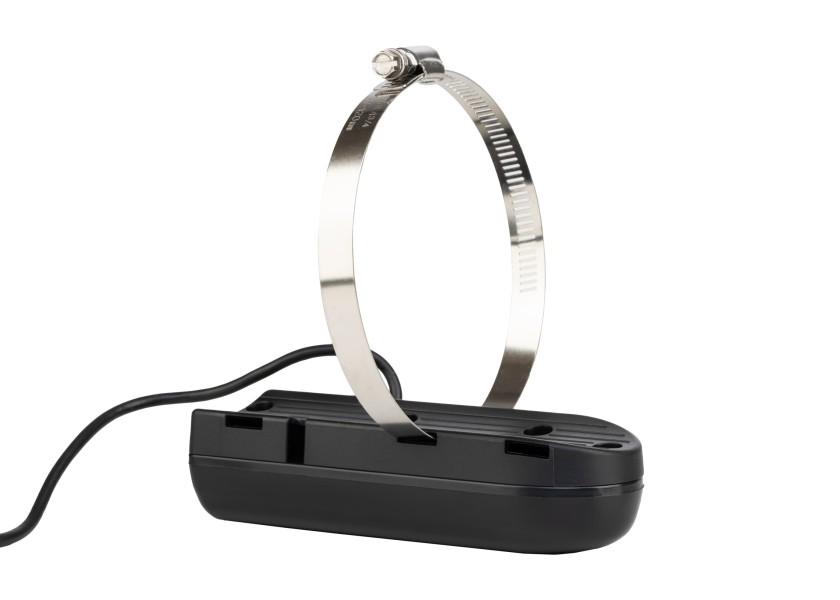

- Transom mount: These are attached to the back (transom) of a boat hull. Alternatively, you can use the included equipment to install on a trolling motor.
🔧 Installation and compatibility
Check transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and fit the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend that you verify the model, power, connector, and mounting conditions before ordering the Garmin GT56UHD-TM Ultra High Definition Transom Transducer. You are welcome to send photos and model numbers, and I will help with the assessment.
