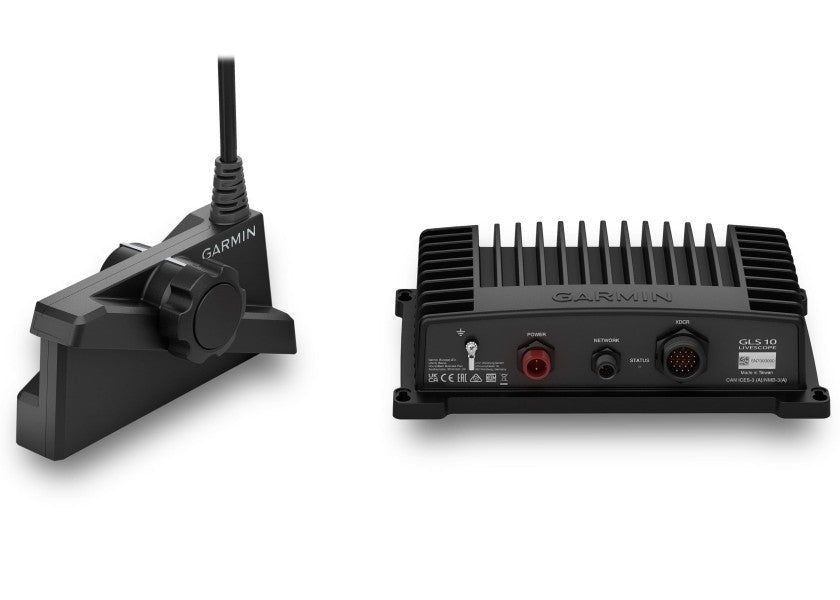

Garmin LiveScope™ Plus System with GLS 10™ and LVS34 Transducer
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Vægt: GLS 10 black box til ekkolod: 2,0 kg,LVS34-IF transducer: 0,9 kg
- Strålebredde: 20° x 135°
- Kabellængde: 20 ft
What is included
- Perspective beslag
- Beslag til elmotorens tromle
- 2 meter Garmin marinenetværkskabel (lille stik)
- Netværksadapterkabel
Technical details
| Vægt | GLS 10 black box til ekkolod: 2,0 kg,LVS34-IF transducer: 0,9 kg |
|---|---|
| Strålebredde | 20° x 135° |
| Kabellængde | 20 ft |
| Maksimal dybde | Ned og frem: 61 m |
| Strømtilførsel | 10-32 V |
| Strømforbrug | 21 W typisk, 58 W maks. |
| Strømkilde | dc-powered |
| Produkt/model | Garmin LiveScope™ Plus system med GLS 10™ og LVS34 transducer |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | GLS 10 black box til ekkolod: 24,5 x 14,9 x 6,5 cm,LVS34-IF transducer: 13,7 x 9,7 x 4,6 cm |
| Vandtæthedsklasse | IPX7 |
| Ekkolodstype | Live |
| Understøttede frekvenser | 530 - 1,100 kHz |
| Garmin Marine Network porte | 1 (lille stik) |
| Antal Ben | 21 |
| Temperaturområde | GLS 10 Black Box: Driftstemperatur: -15 °C til 70 °CPanoptix LiveScope LVS34-IF Transducer: Driftstemperatur: 0 °C til 40 °C |
| Sikring | 7,5 A |
| Sikkerhedsafstand for kompas | 4″ (0,1 m) |
| Sendestyrke | 500 W |
| Pålseparation på 100' | 14" |
| Farve | black |
| Funktioner for marinenavigation | vandtaet |
| Velegnet til lystfiskeritype | dybhav |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Panoptix LIVESCOPE Plus-system med LVS34-transducer og GLS10-ekkolodsboks bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Panoptix LIVESCOPE Plus System with LVS34 Transducer and GLS10 Sonar Black Box – designed for life on board
With the Garmin Panoptix LIVESCOPE Plus system with LVS34 transducer and GLS10 sonar black box, you get sonar or transducer equipment for viewing depth, bottom, fish, and structure under the boat. It is an obvious choice when the equipment must function as a well-thought-out part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical Advantages
- Variant with transducer, if indicated in the product name
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Can provide a more detailed image of bottom conditions and underwater objects depending on the chosen technology.
- Can be integrated into a compatible Garmin sonar system together with a plotter or black box.
- The correct choice depends on plug type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth measurement, and better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want assistance with transducer, frequency, plug, and mounting
📊 Specifications
| Product/model | Garmin LiveScope™ Plus system with GLS 10™ and LVS34 transducer |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm, LVS34-IF transducer: 13.7 x 9.7 x 4.6 cm |
| Weight | GLS 10 sonar black box: 2.0 kg, LVS34-IF transducer: 0.9 kg |
| Water rating | IPX7 |
| Power input | 10-32 V |
| Power consumption | 21 W typical, 58 W max. |
| Sonar type | Live |
| Supported frequencies | 530 - 1,100 kHz |
| Garmin Marine Network™ ports | 1 (small connector) |
| Beamwidth | 20° x 135° |
| Cable length | 20 ft |
| Number of pins | 21 |
| Temperature range | GLS 10 Black Box: Operating temp: -15 °C to 70 °C Panoptix LiveScope LVS34-IF Transducer: Operating temp: 0 °C to 40 °C |
| Fuse | 7.5 A |
| Compass-safe distance | 4″ (0.1 m) |
| Transmit power | 500 W |
| Maximum depth | Down and forward: 61 m |
| Target separation at 100' | 14" |
| Color | black |
| Marine navigation features | waterproof |
| Power source | dc-powered |
| Suitable for fishing type | deep sea |
📦 Box Contents
- Perspective mount
- Trolling motor barrel mount
- 2-meter Garmin marine network cable (small connector)
- Network adapter cable
🔧 Installation and Compatibility
Check the transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and fit the compatible Garmin device.
📄 Manuals and Documentation
💡 My advice before ordering
I recommend that model, power, connector, and mounting conditions are checked before ordering the Garmin Panoptix LIVESCOPE Plus system with LVS34 transducer and GLS10 sonar black box. You are welcome to send photos and model numbers, and I will help with the assessment.
