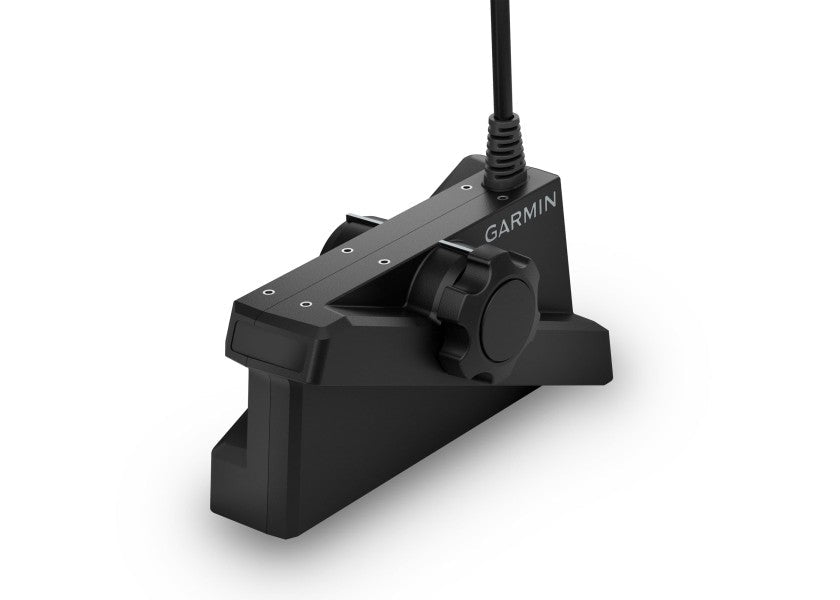

Garmin LiveScope™ XR LVS62, transducer only
Item no. GAR-10031
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Vægt: LVS62 transducer med kabel: 1,78 kg (3,92 lbs)LVS62 transducer uden kabel: 1,21 kg (2,66 lbs)
- Strålebredde: 20° x 135°
- Kabellængde: 20 fod
What is included
- Perspective beslag (LiveScope XR LVS62 kun transducer)
- Beslag til elmotortromle
Technical details
| Vægt | LVS62 transducer med kabel: 1,78 kg (3,92 lbs)LVS62 transducer uden kabel: 1,21 kg (2,66 lbs) |
|---|---|
| Strålebredde | 20° x 135° |
| Kabellængde | 20 fod |
| Maksimal dybde | Ferskvand: Down og Forward: 150 mSaltvand: Down og Forward: 100 m |
| Strømtilførsel | 10-32 V |
| Strømforbrug | 21 W typisk, 58 W maks. |
| Strømkilde | dc-poweredkoeretoejets-elektriske-system |
| Produkt/model | Garmin LiveScope™ XR LVS62, Kun transducer |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | LVS62 transducer: 20,8 x 10,1 x 7,0 cm (8.20″ x 3.98″ x 2.76″) |
| Ekkolodstype | Live |
| Understøttede frekvenser | 282 - 522 kHz |
| Garmin Marine Network porte | 1 (lille stik) |
| Antal Ben | 21 |
| Temperaturområde | LVS62 Transducer: Driftstemperatur: 0 C til 40 C |
| Sikring | 7,5 A |
| Sikkerhedsafstand for kompas | 0,18 m (7″) |
| Sendestyrke | 500 W |
| Pålseparation på 100' | 22″ |
| Farve | black |
| Velegnet til lystfiskeritype | dybhav |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Panoptix LIVESCOPE XR LVS62-transducer bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Panoptix LIVESCOPE XR LVS62 Transducer – designed for life on board
With the Garmin Panoptix LIVESCOPE XR LVS62 transducer, you get sonar or transducer equipment for viewing depth, the bottom, fish, and structure under the boat. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat’s overall setup, and you want to ensure everything from compatibility and mounting to practical use on board is taken care of.
⚡ Practical benefits
- LiveScope™ XR LVS62
- You didn't think it could get any better, but it did with the increased range of the LiveScope XR System. It is the latest in LiveScope technology, now for fishing in coastal areas and open water.
- Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with a new transducer.
- Can provide a more detailed image of bottom conditions and underwater objects, depending on the chosen technology.
- Can be part of a compatible Garmin sonar system together with a chartplotter or black box.
- The correct choice depends on the connector type, frequency, power, hull, and desired mounting method.
⛵ Suitable for
- Fishing, depth sounding, and a better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want help with transducer, frequency, connector, and mounting
📊 Specifications
| Product/model | Garmin LiveScope™ XR LVS62, Transducer only |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | LVS62 transducer: 20.8 x 10.1 x 7.0 cm (8.20″ x 3.98″ x 2.76″) |
| Weight | LVS62 transducer with cable: 1.78 kg (3.92 lbs)LVS62 transducer without cable: 1.21 kg (2.66 lbs) |
| Power supply | 10-32 V |
| Power consumption | 21 W typical, 58 W max. |
| Sonar type | Live |
| Supported frequencies | 282 - 522 kHz |
| Garmin Marine Network™ ports | 1 (small connector) |

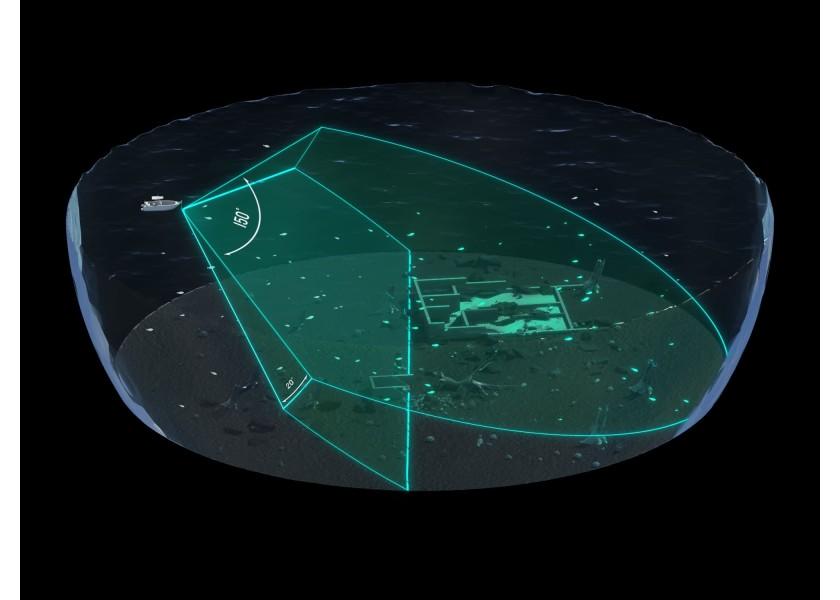

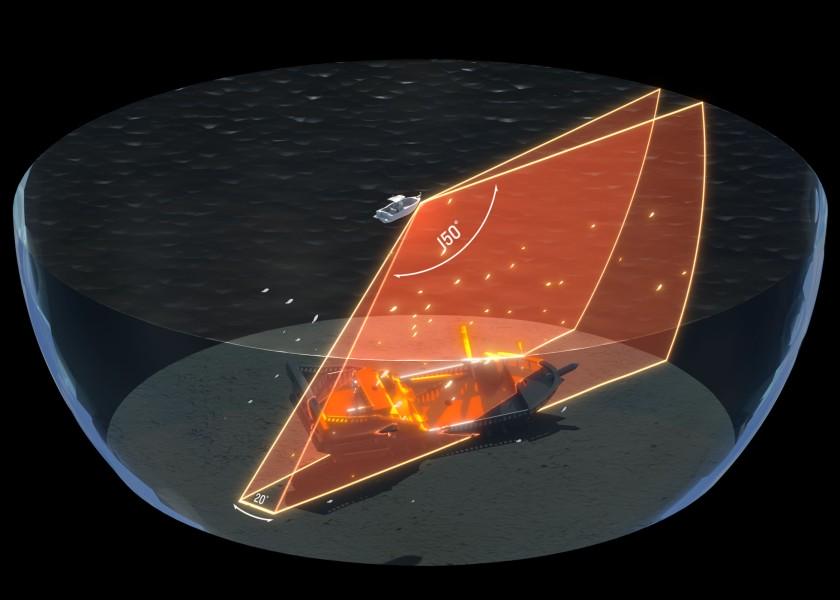

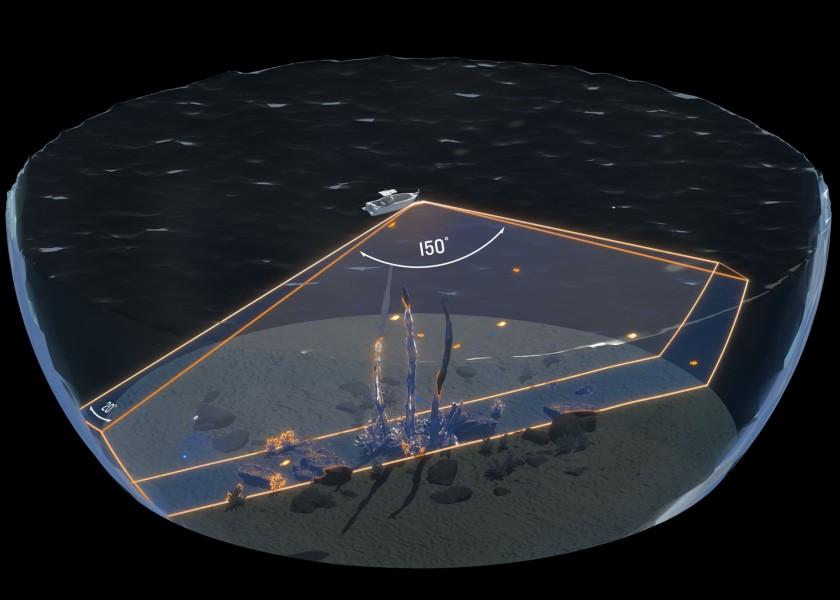

| Beamwidth | 20° x 135° |
| Cable length | 20 feet |
| Number of pins | 21 |
| Temperature range | LVS62 Transducer: Operating temperature: 0 C to 40 C |
| Fuse | 7.5 A |
| Compass safe distance | 0.18 m (7″) |
| Transmit power | 500 W |
| Maximum depth | Freshwater: Down and Forward: 150 mSaltwater: Down and Forward: 100 m |
| Target separation at 100' | 22″ |
| Color | black |
| Power source | dc-powered vehicle-electrical-system |
| Suitable for fishing type | deep-sea |
📦 In the box
- Perspective mount (LiveScope XR LVS62 transducer only)

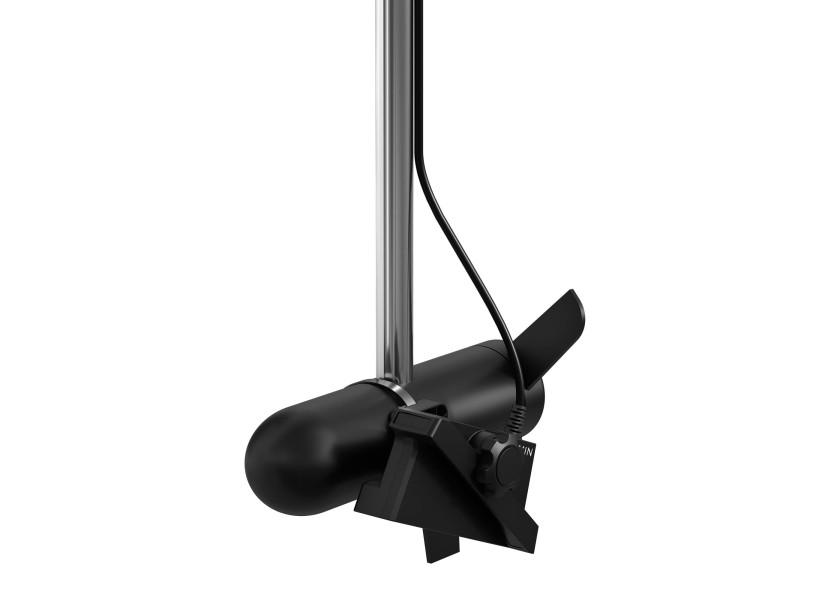

- Trolling motor barrel mount
🔧 Installation and compatibility
Verify transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The placement should provide the transducer with as clean a water flow as possible and match the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connector, and mounting conditions before ordering the Garmin Panoptix LIVESCOPE XR LVS62 transducer. You are welcome to send photos and model numbers, and I will help you with the assessment.
