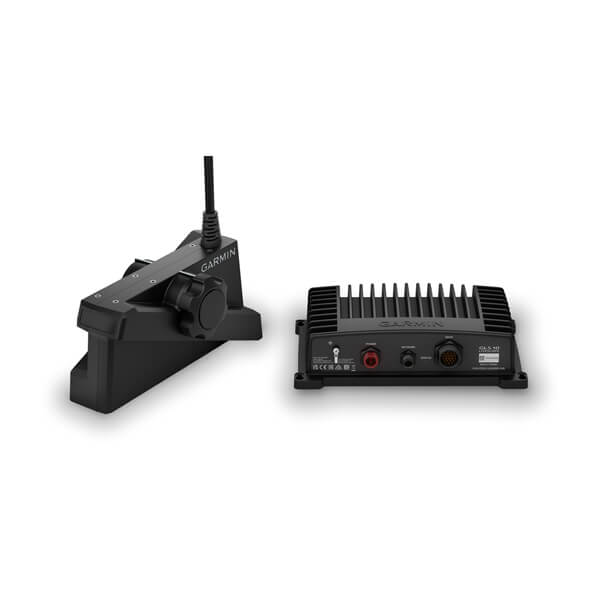

Garmin LiveScope™ XR System, with GLS 10™ and LVS62 transducer
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Strålebredde: 20° x 135°
- Kabellængde: 20 fod
- Strømtilførsel: 10-32 V
What is included
- Perspective beslag (LiveScope XR LVS62 kun transducer)
- Beslag til elmotortromle
- 2 meter Garmin marinenetværkskabel (lille stik)
- Netværksadapterkabel
Technical details
| Vægt | GLS 10 ekkolods-black box: 2,.0 kg (4,3 lbs)LVS62 transducer med kabel: 1,78 kg (3,92 lbs)LVS62 transducer uden kabel: 1,21 kg (2,66 lbs) |
|---|---|
| Strålebredde | 20° x 135° |
| Kabellængde | 20 fod |
| Maksimal dybde | Ferskvand: Down og Forward: 150 mSaltvand: Down og Forward: 100 m |
| Strømtilførsel | 10-32 V |
| Strømforbrug | 21 W typisk, 58 W maks. |
| Produkt/model | Garmin LiveScope™ XR System, Med GLS 10™ og LVS62 transducer |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | GLS 10 ekkolods-black box: 24,5 x 14,9 x 6,5 cm (9,7″ x 5,9″ x 2,6″) LVS62 transducer: 20,8 x 10,1 x 7,0 cm (8,20″ x 3,98″ x 2,76″) |
| Vandtæthedsklasse | IPX7 |
| Ekkolodstype | Live |
| Understøttede frekvenser | 282 - 522 kHz |
| Garmin Marine Network porte | 1 (lille stik) |
| Antal Ben | 21 |
| Temperaturområde | LVS62 Transducer: Driftstemperatur: 0 C til 40 C |
| Sikring | 7,5 A |
| Sikkerhedsafstand for kompas | 0,18 m (7″) |
| Sendestyrke | 500 W |
| Pålseparation på 100' | 22″ |
| Mærke | Garmin |
| Kapslingsklasse | IPX7 |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin Panoptix LIVESCOPE XR-system med LVS62-transducer og GLS10-ekkolodsboks bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin Panoptix LIVESCOPE XR System with LVS62 Transducer and GLS10 Sonar Black Box – developed for life on board
With the Garmin Panoptix LIVESCOPE XR System with LVS62 Transducer and GLS10 Sonar Black Box, you get sonar or transducer equipment for viewing depth, bottom, fish, and structure under the boat. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall installation, and you want to ensure compatibility, mounting, and practical use on board.
⚡ Practical benefits
- Variant with transducer, if indicated in the product name
- LiveScope GLS 10 black box
- LiveScope XR LVS62 transducer
- Can provide a more detailed image of bottom conditions and underwater objects, depending on the technology selected.
- Can be integrated into a compatible Garmin sonar system together with a chartplotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth sounding, and a better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want assistance with transducer, frequency, connectors, and mounting
📊 Specifications
| Product/model | Garmin LiveScope™ XR System, With GLS 10™ and LVS62 transducer |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm (9.7″ x 5.9″ x 2.6″) LVS62 transducer: 20.8 x 10.1 x 7.0 cm (8.20″ x 3.98″ x 2.76″) |
| Weight | GLS 10 sonar black box: 2.0 kg (4.3 lbs) LVS62 transducer with cable: 1.78 kg (3.92 lbs) LVS62 transducer without cable: 1.21 kg (2.66 lbs) |
| Water rating | IPX7 |
| Power input | 10-32 V |
| Power consumption | 21 W typical, 58 W max. |
| Sonar type | Live |
| Supported frequencies | 282 - 522 kHz |
| Garmin Marine Network™ ports | 1 (small connector) |
| Beamwidth | 20° x 135° |
| Cable length | 20 ft |
| Number of pins | 21 |
| Temperature range | LVS62 Transducer: Operating temperature: 0 C to 40 C |
| Fuse | 7.5 A |
| Compass-safe distance | 0.18 m (7″) |
| Transmit power | 500 W |
| Maximum depth | Freshwater: Down and Forward: 150 m Saltwater: Down and Forward: 100 m |
| Target separation at 100' | 22″ |
📦 Package contents
- Perspective mode mount (LiveScope XR LVS62 transducer only)
- Trolling motor barrel mount
- 2 meter Garmin marine network cable (small connector)
- Network adapter cable
🔧 Installation and compatibility
Check transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with the cleanest water flow possible and match the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Garmin Panoptix LIVESCOPE XR System with LVS62 Transducer and GLS10 Sonar Black Box. You are welcome to send photos and model numbers, and I will help with the assessment.
